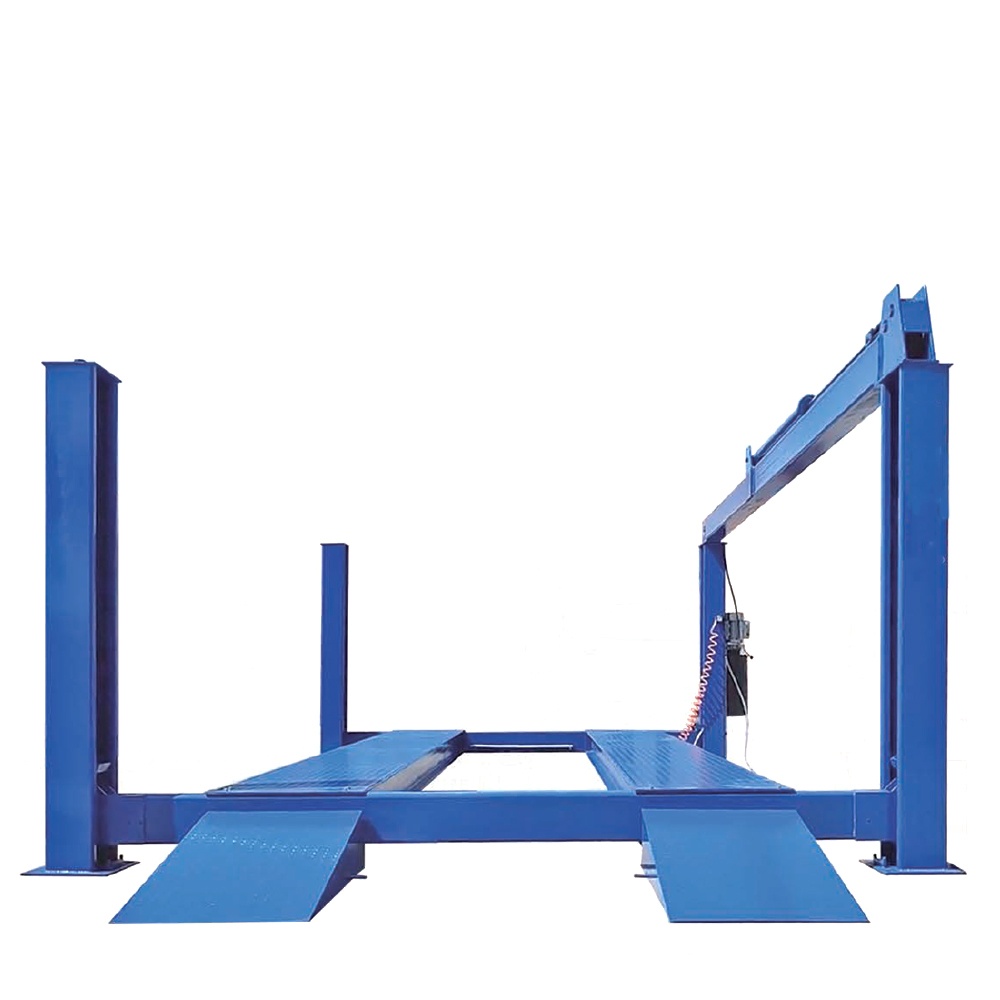

8 Ton /16 Ton Heavy-Duty Four Post Truck Lift

15106

High quality electric-hydraulic pump, powerful, and low failure rate,
Pneumatic unlocking system, easy and convenient to operate;
Unique and automatic safety locks, safe and reliable;
Single piece column construction assures evenly loading and smoothly running;
Unique chain-drive-mode, instead of wire-dirve mode, safe and reliable.
Width between two platforms is adjustable to be fit for different vehicle
Center rolling jack as optional.
24V control system as optional for CE standard

Quantity

ltem No.

Description

8 Ton/16 Ton Heavy-Duty Four Post Truck Lift is built for trucks and heavy vehicles, this lift handles 8-16 tons with a high-capacity electric-hydraulic pump and low-failure design. Features include pneumatic unlocking, automatic safety locks, single-piece columns for balanced loads, and durable chain-drive safety. Adjustable platform width ensures versatility. Ideal for demanding workshops prioritizing power, reliability, and safety.

Model	15106 - 8T	15106 - 16T
Lifting Capacity	8 Ton	16 Ton
Max. Lifting Height	1700mm	1700mm
Min. Lifting Height	215mm	215mm
Post Height	2030mm	2040mm
Width of Single Runway	650mm	700mm
Unlocking System	Pneumatic Unlocking	Pneumatic Unlocking
Hydraulic Pressure	16Mpa	16Mpa
Working Voltage	380v	380v
Working Power	3kw	3kw
