Single Point manual lock release
Width between two platforms is adjustable to be fit for different vehicle
Mechanical safety lock installed in each column.
Front and rear stop plate well protect the vehicle during repairing.
Center rolling jack as optional.
24V control system as optional for CE standard
Quantity
ltem No.

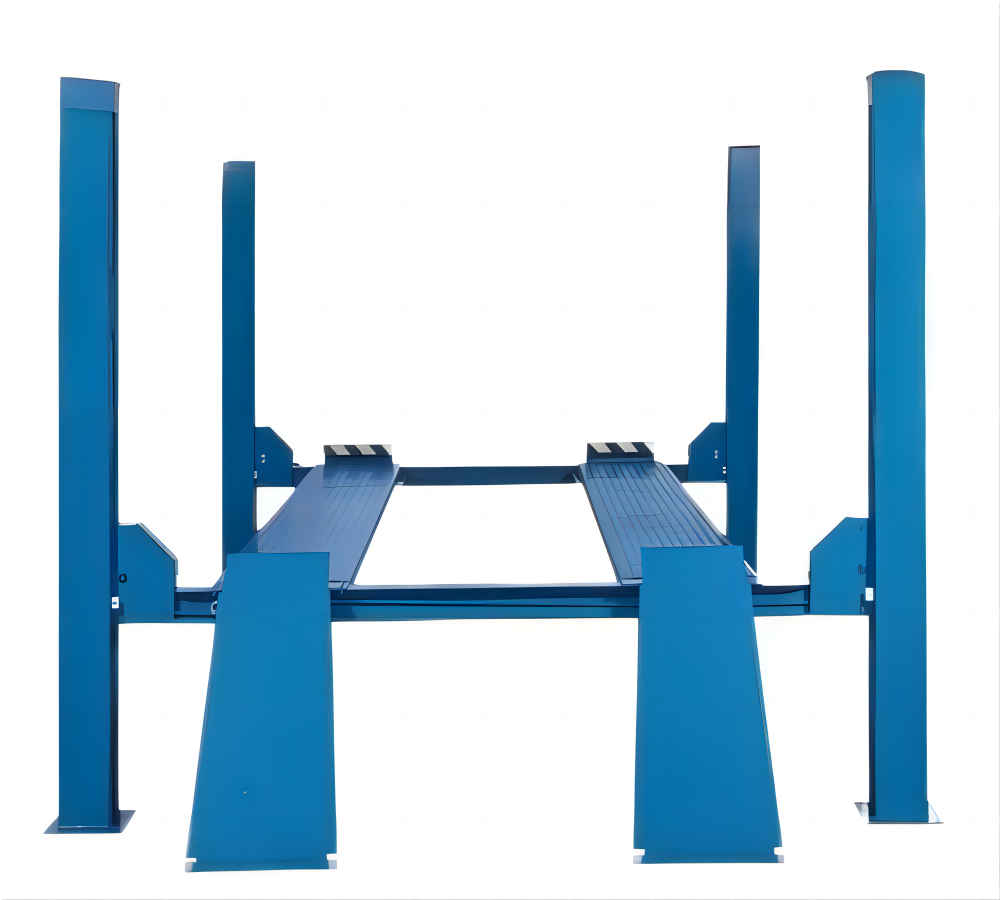

This 4 Ton/5 Ton Four Post Lift features a single-point manual lock release for efficient height adjustment and secure positioning, with adjustable platform widths to accommodate diverse vehicle sizes. Equipped with mechanical safety locks in each column and protective front/rear stop plates, it ensures maximum stability and vehicle protection during maintenance. Optional upgrades include a center rolling jack for enhanced accessibility and a 24V control system compliant with CE safety standards, making it a versatile and reliable solution for professional automotive servicing.

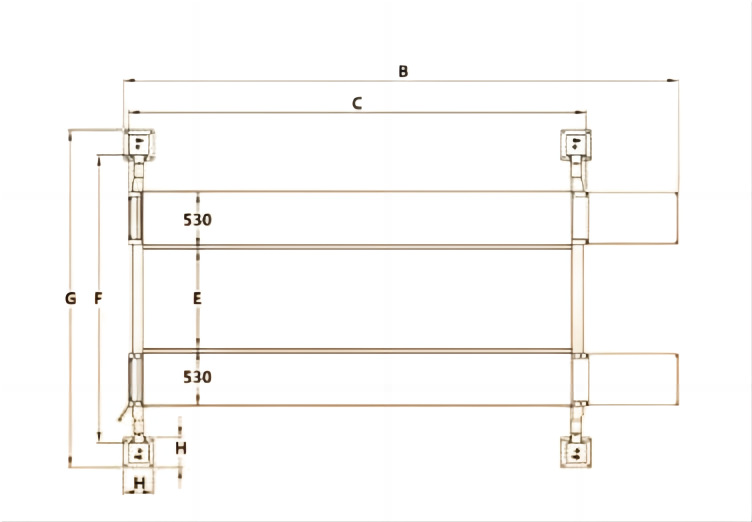

Model | 15101 - 4T | 15101 - 5T |
Lifting capacity | 4 Ton | 5 Ton |
Lifting height | 1700mm | 1700mm |
Lowest height | 120mm | 120mm |
Runway Length | 4360/4860mm | 5360mm |
Runway Width | 3100mm | 3100mm |
Unilateral Runway Width | 505mm | 505mm |
Width Between Runway | 900-1180mm | 900-1180mm |
Height of Post | 2110mm | 2110mm |
Lifting time | 55/75s | 90s |
Lowering time | 50/65s | 80s |
Motor Power | 2.2kw | 2.2kw |
Power supply | 220/240/380/415v1/3 phase | 380/415V,3 phase |
