High quality electric-hydraulic pump, powerful, and low failure rate,
Pneumatic unlocking system, easy and convenient to operate;
Unique and automatic safety locks, safe and reliable;
Single piece column construction assures evenly loading and smoothly running;
Unique chain-drive-mode, instead of wire-dirve mode, safe and reliable.
Quantity
ltem No.

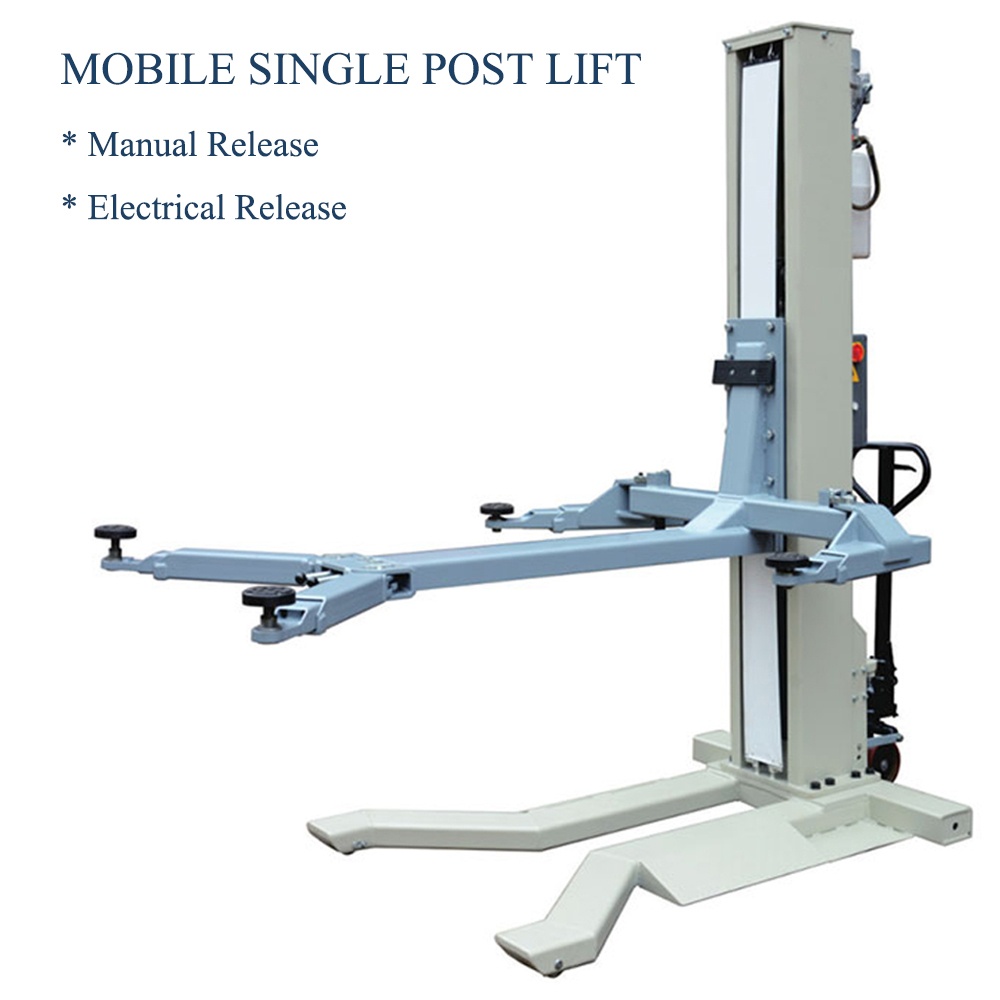

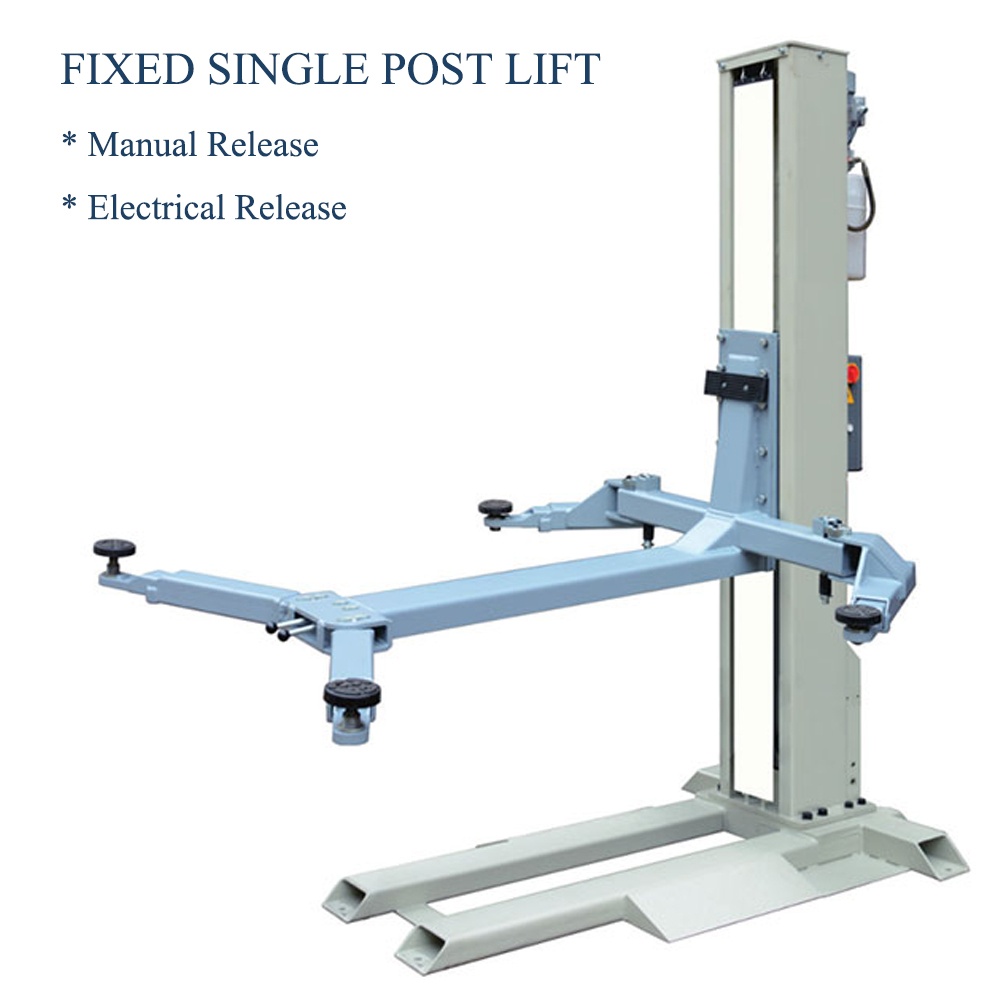

2.5 Ton Mobile/Fixed Single Post Lift combines a high-quality electric-hydraulic pump for powerful, low-failure operation with a pneumatic unlocking system for effortless control. Automatic safety locks ensure reliability, while the single-piece column guarantees even loading and smooth performance. Its chain-drive mechanism replaces traditional wire systems, enhancing safety for versatile mobile or fixed installations in automotive repair and maintenance.
Model | 15290FM | 15290MM | 15290FE | 15290ME |
Style | Fixed | Mobile | Fixed | Mobile |
Control | Manual | Manual | Electrical | Electrical |
Lifting Capacity | 2500kg | |||
Max. Lifting Height | 1850mm | |||
Min. Lifting Height | 115mm | |||
Voltage | (220-240) VAC、 (380-415) VAC | |||
Motor Power | 2.2KW | |||
Hz | 50Hz/60Hz | |||
Lifting Time | 40-50s | |||
