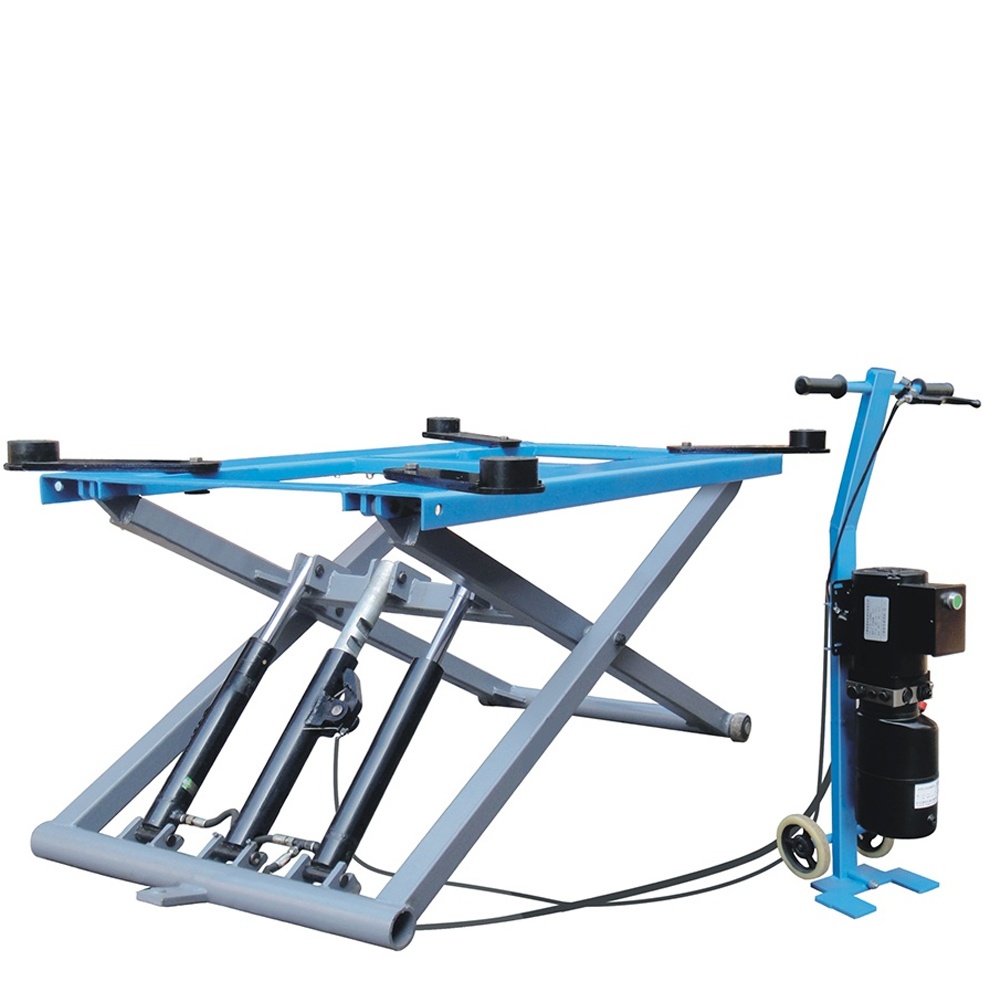

2.8 Ton/3 Ton Portable Scissor Alignment Lift

15265

Perfect lift for painting jobs and bodywork, brakes and tire service Manual safety lock release.

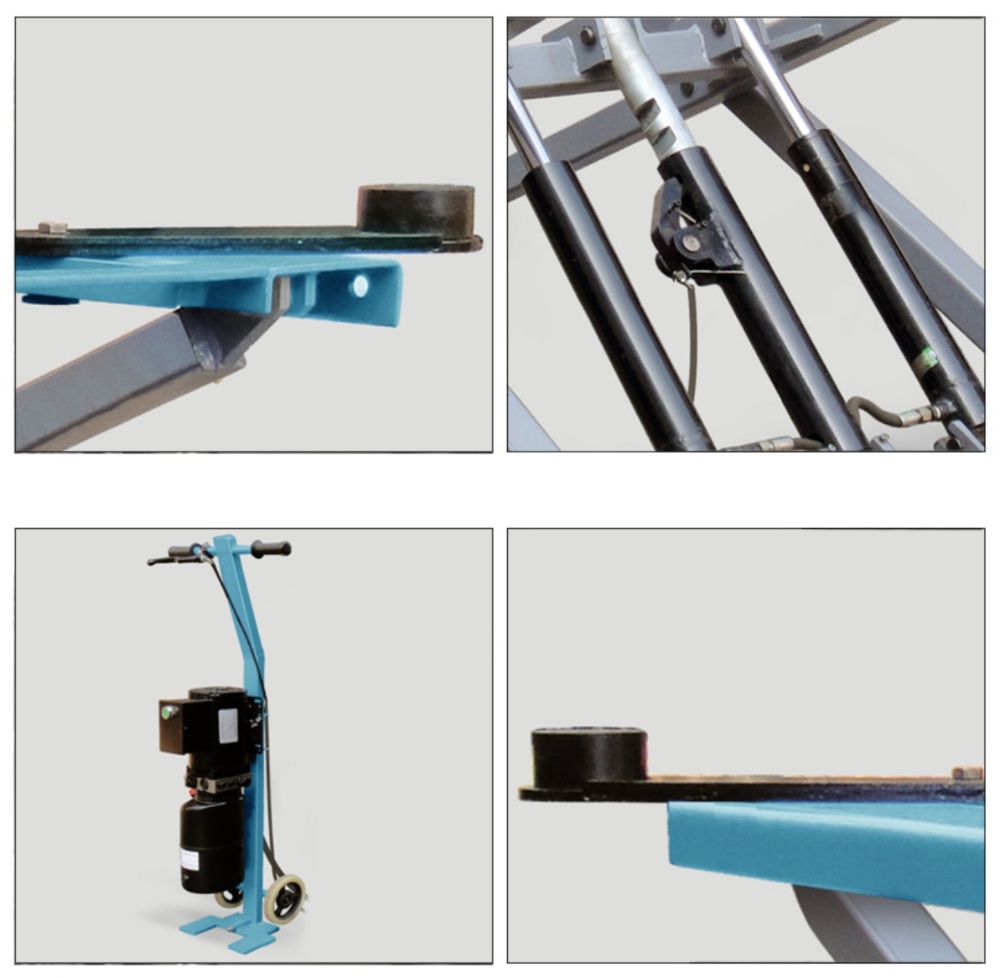

Automatic arm locking system, which makes sure the lifting arms can not move when the car is placed on the lift.
Electrical safety lock release version is optional
Portable motor cart serves as tow dolly, making it portable and able to operate on concrete indoors or outdoors.
Dual cylinder structure, ensure stable raising and lowering.
Multiple locking positions accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles.
Powder coated finish provides long-lasting durable use.
Each lift passes the 115% rated capacity dynamic load test and 150% rated capacity static load test, safe and reliable.

Quantity

ltem No.

Description

2.8 Ton/3 Ton Portable Scissor Alignment Lift is ideal for painting, bodywork, brakes, and tire services. Features manual safety lock release and an automatic arm locking system to secure vehicles during operation; optional electrical safety lock release enhances convenience. Dual cylinders ensure stable lifting, while multiple locking positions accommodate taller vehicles for optimal undercarriage access. The portable motor cart doubles as a tow dolly, enabling easy relocation on indoor/outdoor concrete surfaces.

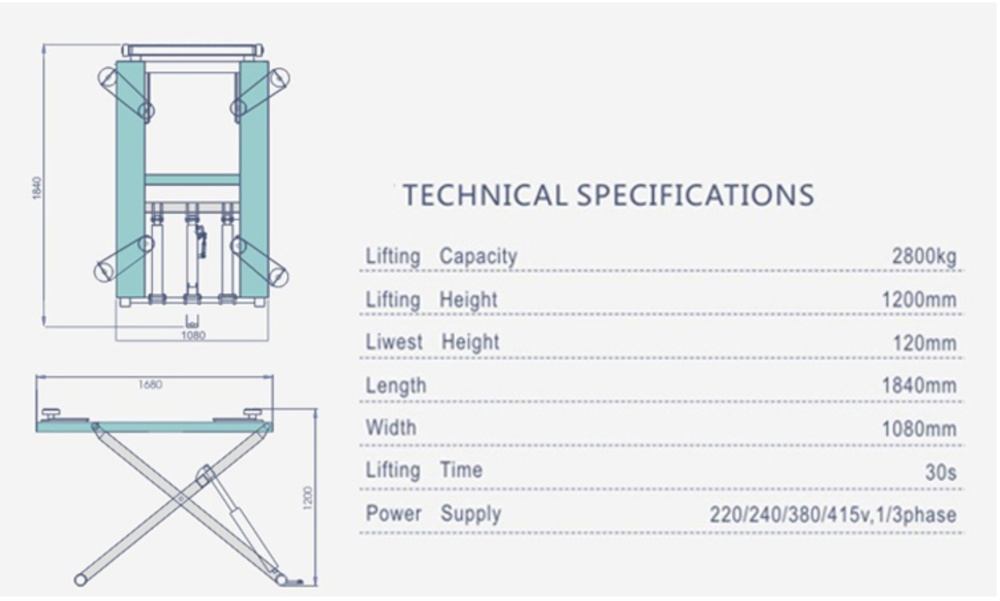

Model	15265 - 3T	15265 - 2.8T
Capacity(ton)	3	2.8
Lifting height(mm)	1200	1000
Lowest height(mm)	120	120
Frame length(mm)	1680	1680
Frame width(mm)	1080	1030
Net weight(kg)	430	360
Motor	1.5kw	1.5kw

GC-116

GC-116-
