Low profile structure for on ground installation, with wheel free lift table. 24V low voltage control;
With parachute valve and safety valve to ensure the safety;
Good synchronization process and precise leveling for alignment.
Position of turntable can be adjusted to suit for various types of vehicles.
Optional choose guide rail and rolling jack.
Quantity
ltem No.

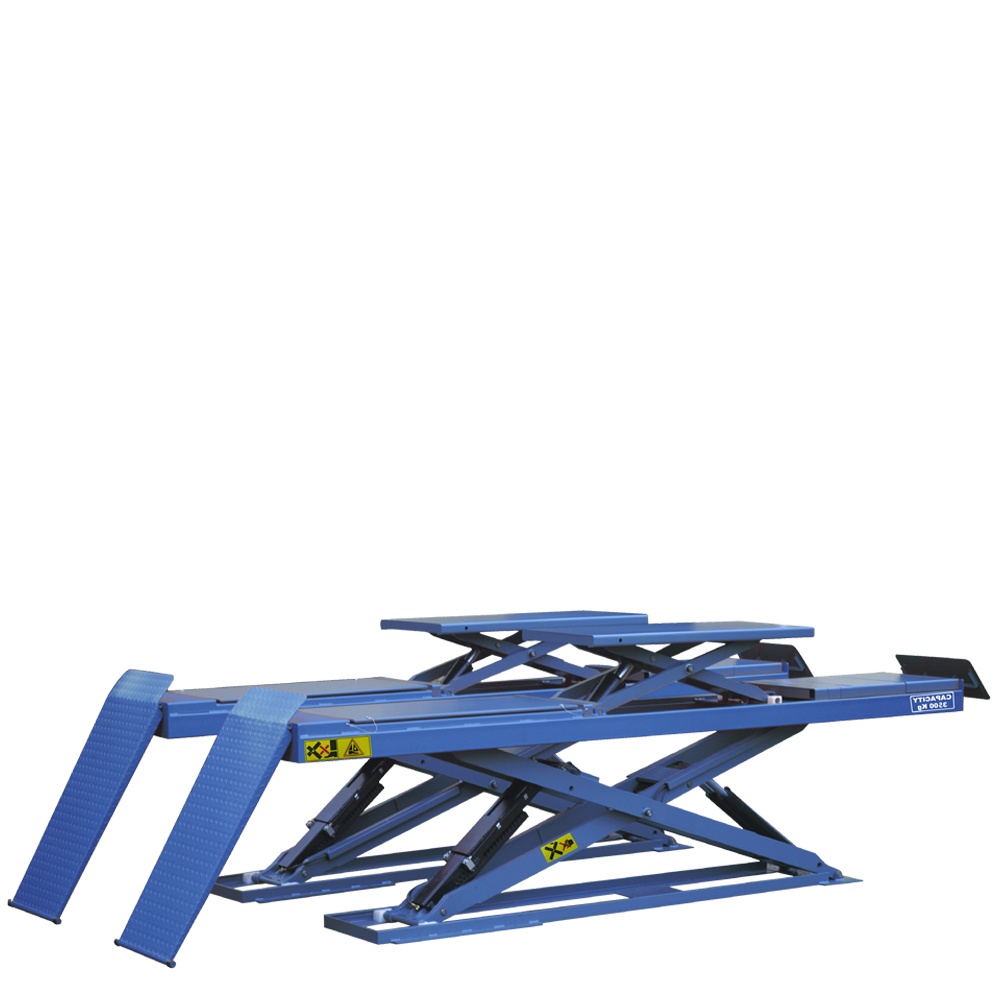

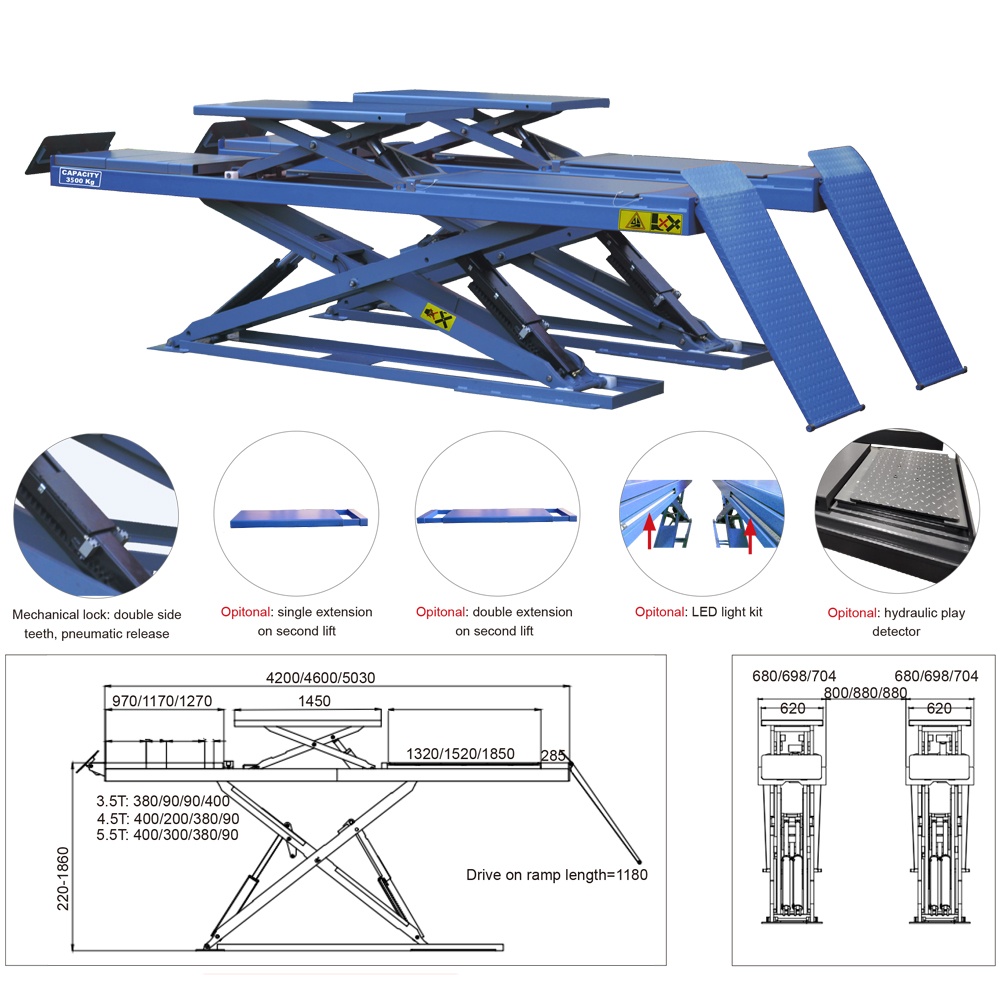

3.5/4.5/5 Ton On-Ground Low Profile Double-level Scissor Alignment Lift offers a compact, wheel-free lift table with 24V low-voltage control for safe, space-efficient operation. Dual parachute and safety valves ensure reliability, while precise synchronization and leveling enable accurate alignment. The adjustable turntable adapts to diverse vehicles, with optional guide rails and rolling jacks for enhanced versatility. Designed to handle 3.5-5 tons, this robust lift is ideal for professional automotive servicing.
Model | 15171 – 3.5T | 15171 - 4.5T | 15171 – 5.5T |
Capacity | 3.5T | 4.5T | 5.5T |
Power | 380V/220V, 2.2kw | 380V/220V, 3kw | |
Air supply | 4-6bar | ||
Main Lifting height | 200-1880mm | ||
Second Lifting Capacity | 4T | 4.5T | 4.5T |
Second Lifting height | 450mm | ||
