Scissor structure to save space;
24V low voltage control;
With mechanical lock and pneumatic release;
With parachute valve and safety valve to ensure the safety of machine;
Be available to be installed inside the spray booth.
Quantity
ltem No.

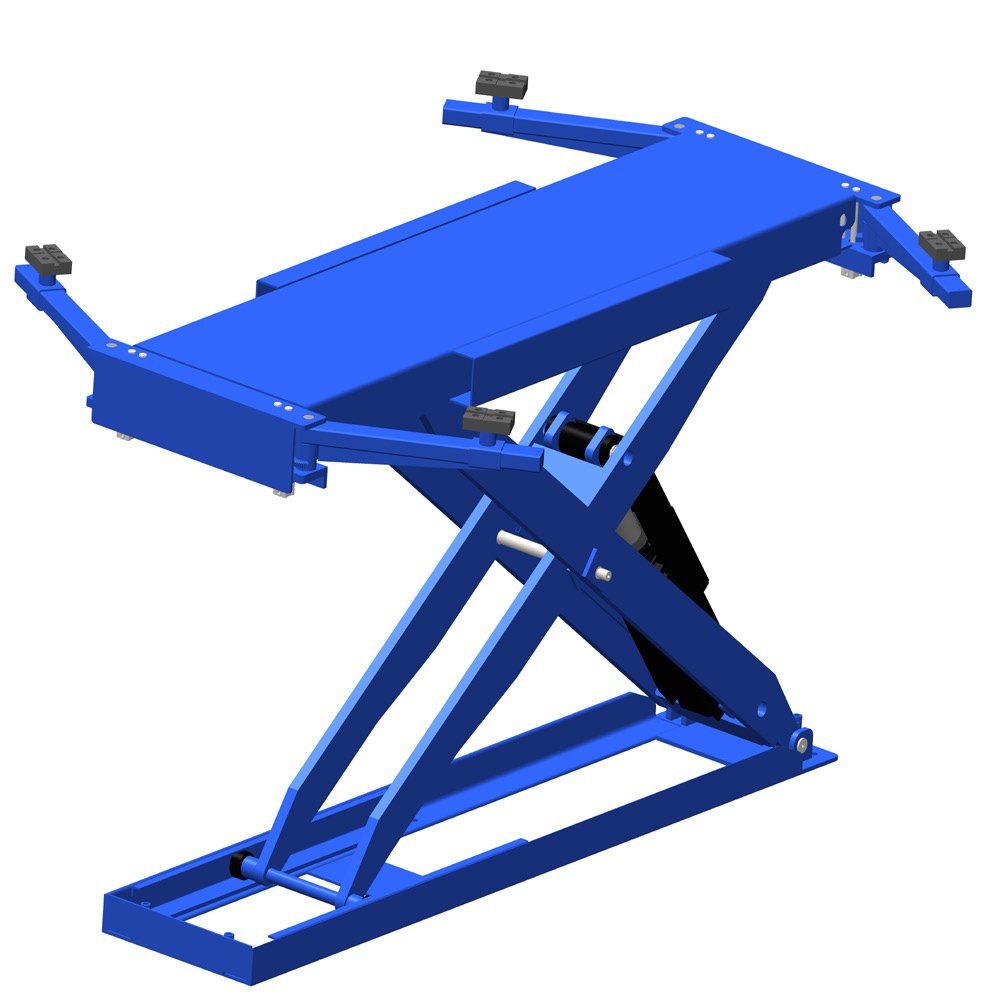

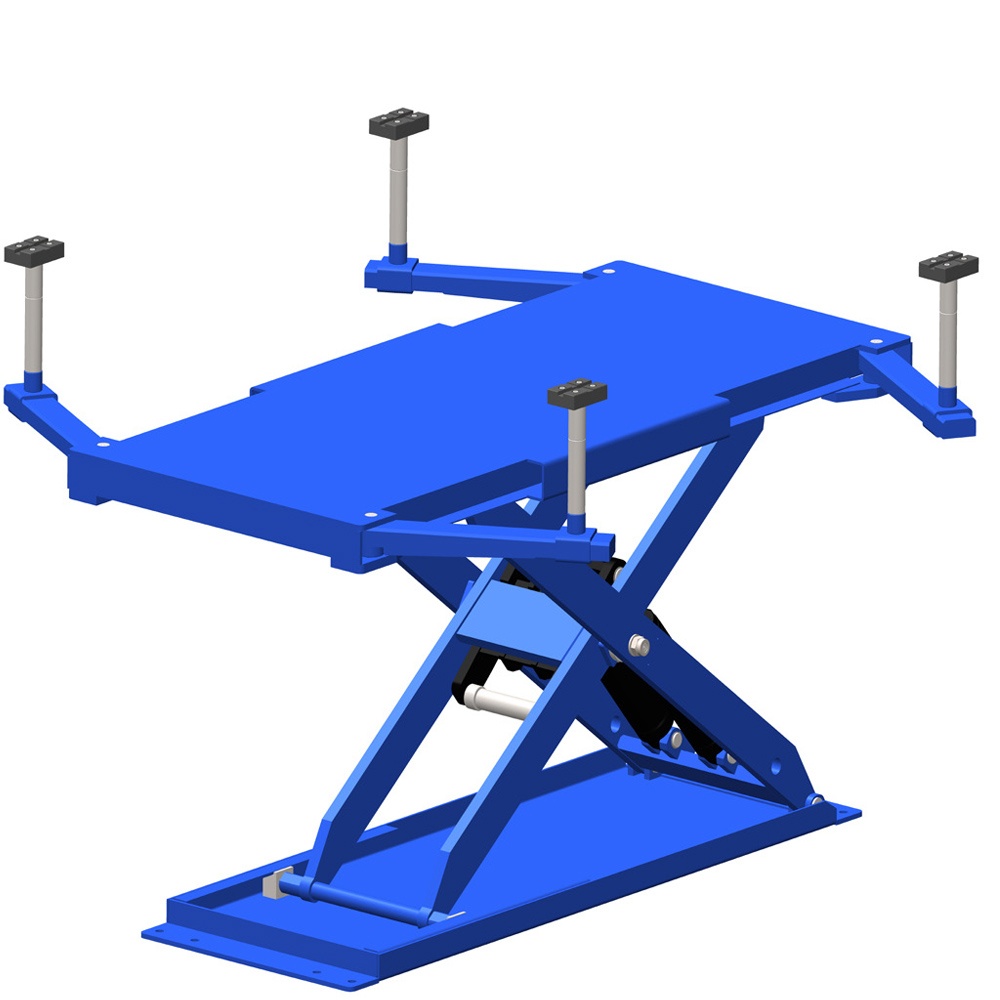

3 Ton Small Scissor Alignment Lift for Spray Booth features a compact scissor structure for space efficiency, 24V low-voltage control for safety, and mechanical lock/pneumatic release mechanisms. Equipped with parachute and safety valves, it ensures secure operation and is designed for installation inside spray booths, offering precise alignment for 3-ton vehicles.

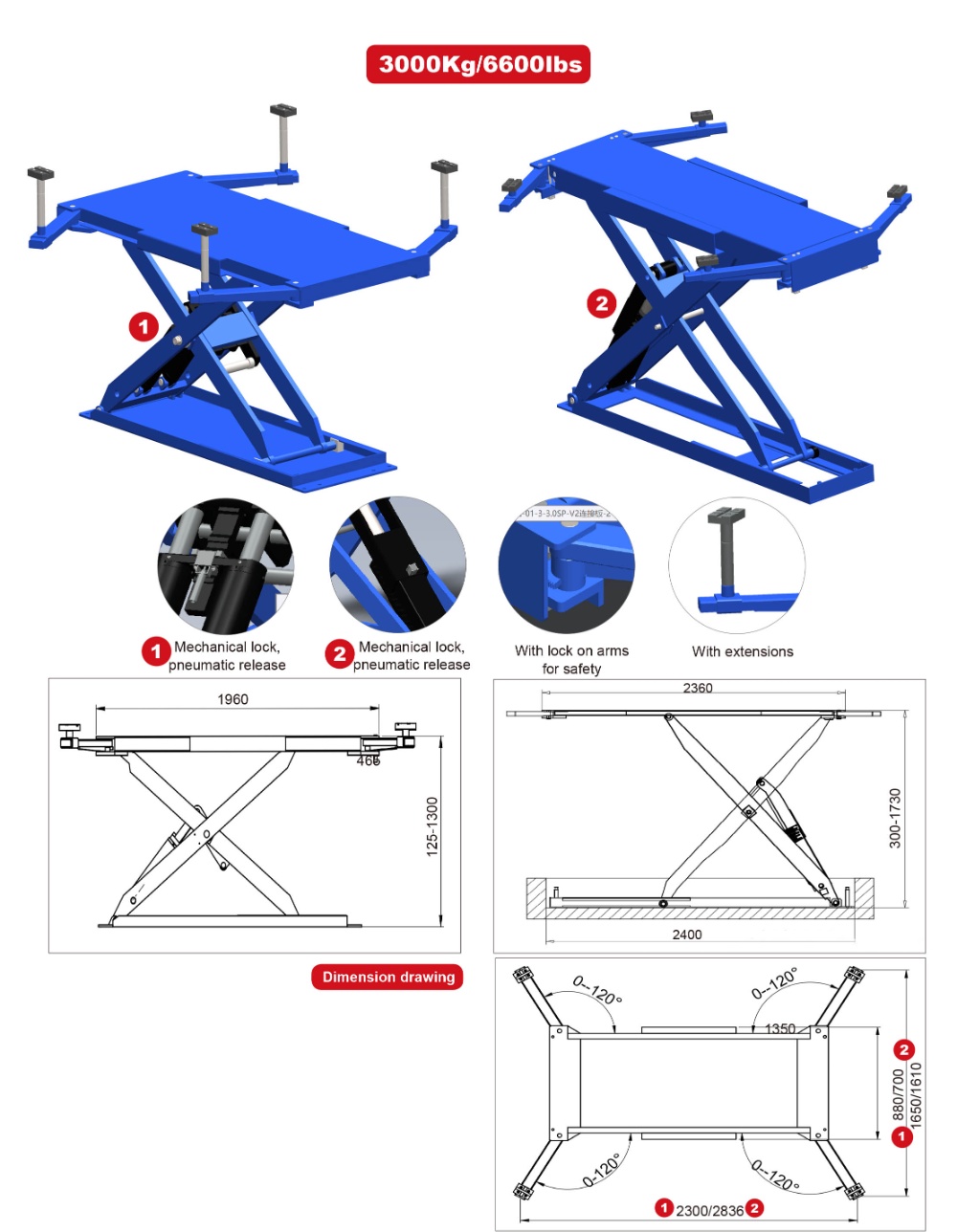

Model | 15260-1 | 15260-2 |
Capacity | 3 ton | 3 ton |
Motor Power | 380V/220V, 2.2kw | 380V/220V, 2.2kw |
Lifting Height | 125-1300mm | 300-1730mm |
Platform Length | 1960mm | 2360mm |
