Low profile structure for on ground installation
24V low voltage control.
Good sychronization process and precise leveling for alignment
With parachute valve and safety valve to ensure the safety
Position of turntable can be adiusted to suit for various types of vehicles
Optional to choose rolling jack
Quantity
ltem No.

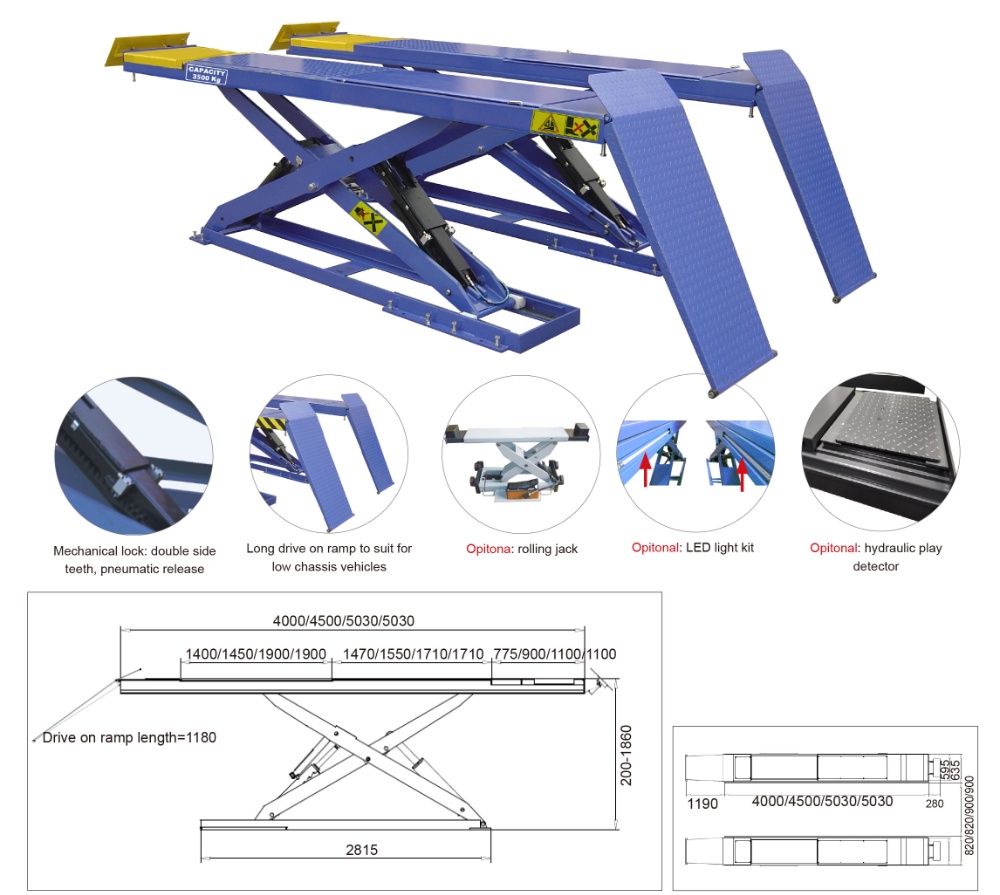

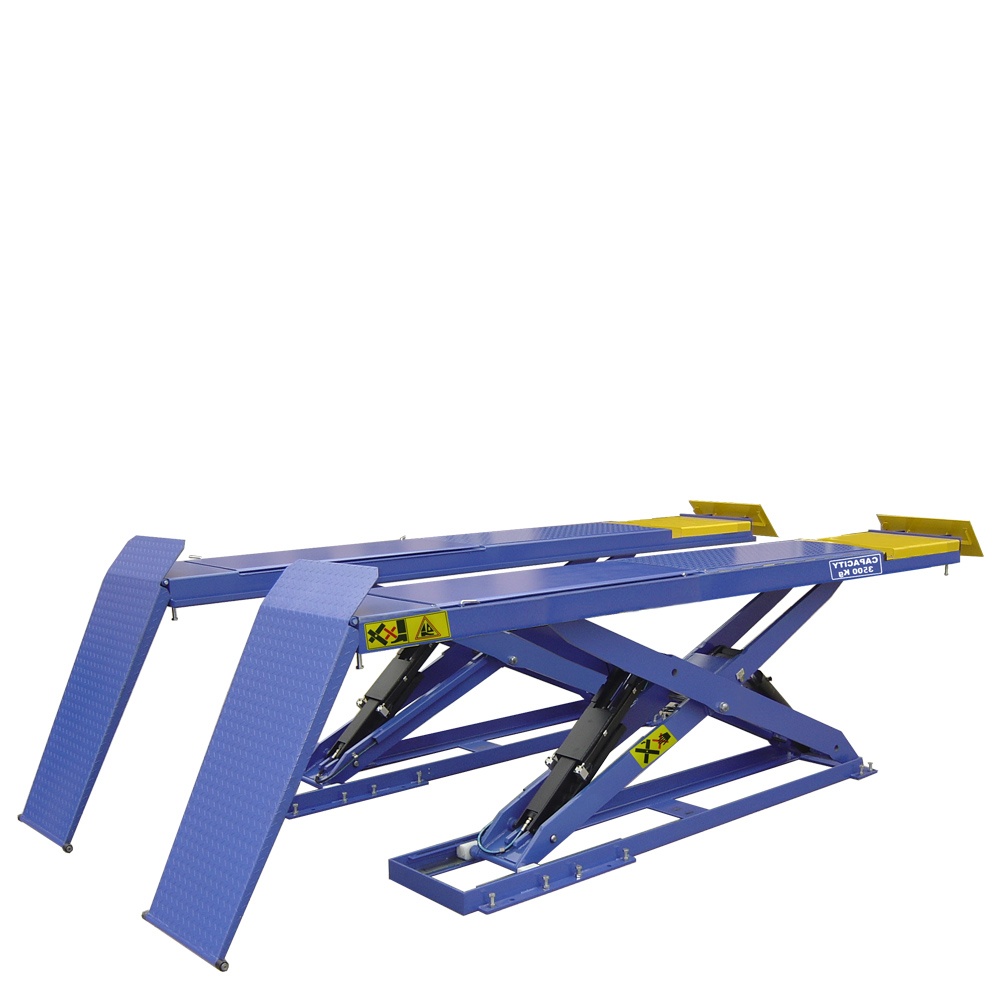

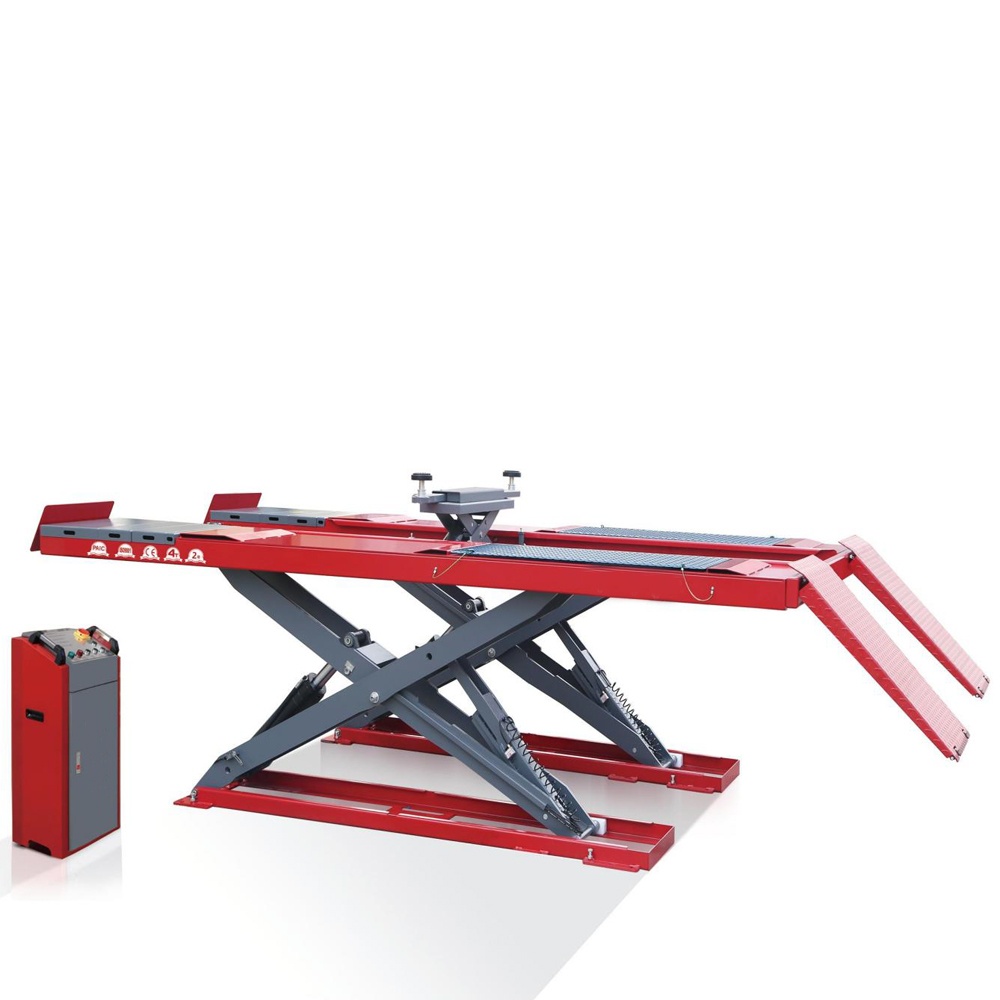

3.5/4/4.5/5.5 Ton On-Ground Low Profile Scissor Alignment Lift is a compact, space-efficient solution for automotive workshops, featuring 24V low-voltage control and precision synchronization for accurate vehicle alignment. Its adjustable turntable adapts to diverse vehicles, while integrated parachute and safety valves ensure operational security. Optional rolling jacks enhance versatility, and the robust design supports loads from 3.5 to 5.5 tons, making it ideal for professional-grade servicing.
Model | 15170 - 3.5T | 15170 - 4T | 15170 - 4.5T | 15170 - 5.5T |
Capacity | 3.5T | 4T | 4.5T | 5.5T |
Power | 380V/220V, 2.2kw | 380V/220V, 3kw | ||
Air supply | 4-6bar | |||
Lifting height | 200-1860mm | |||
Platform Length | 5030mm | |||
Platform Width | 635mm | |||
