Great quality built with CE certifcate and lSO 9001.
Perfect equipment for parking, storage and garage service.
Space saving, two parking space for four cars.
Equipped with mobile kit as standard, the portable design is moreconvenient for household use.
One hydraulic cylinder mounted under runway ensures the strong lifingand lowering.
Single point manual lock release, simple and convenient for operation.
Mechanical safety lock installed in each column.
Free jack tray specially for tire and break work.
Standard 3pcs free drip trays protect the botom vehicle from oil leakingand muddy water of upper vehicle.
Equipped overflow valve.
Drive on-of protection on runway platform-each 2pcs bafie block.
Cable protection on each column.
Optional 24V control box and foot protection.
Quantity
ltem No.

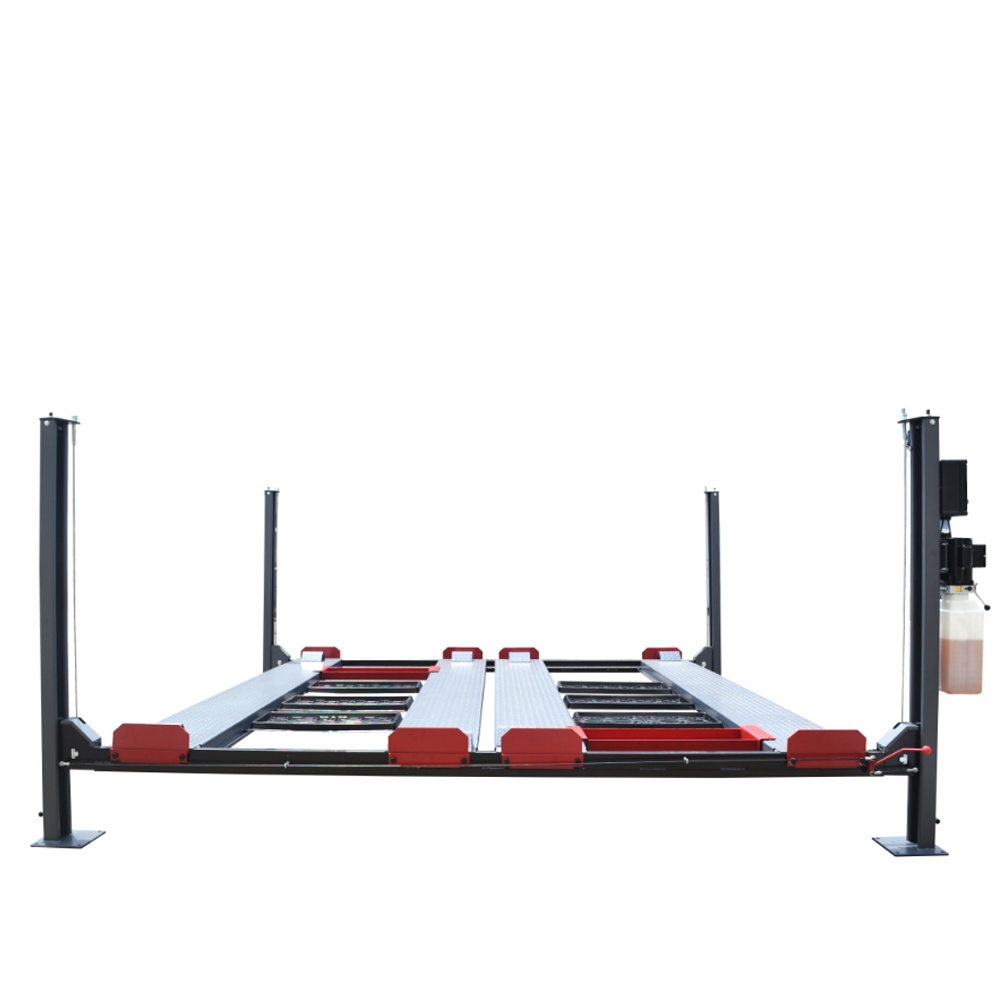

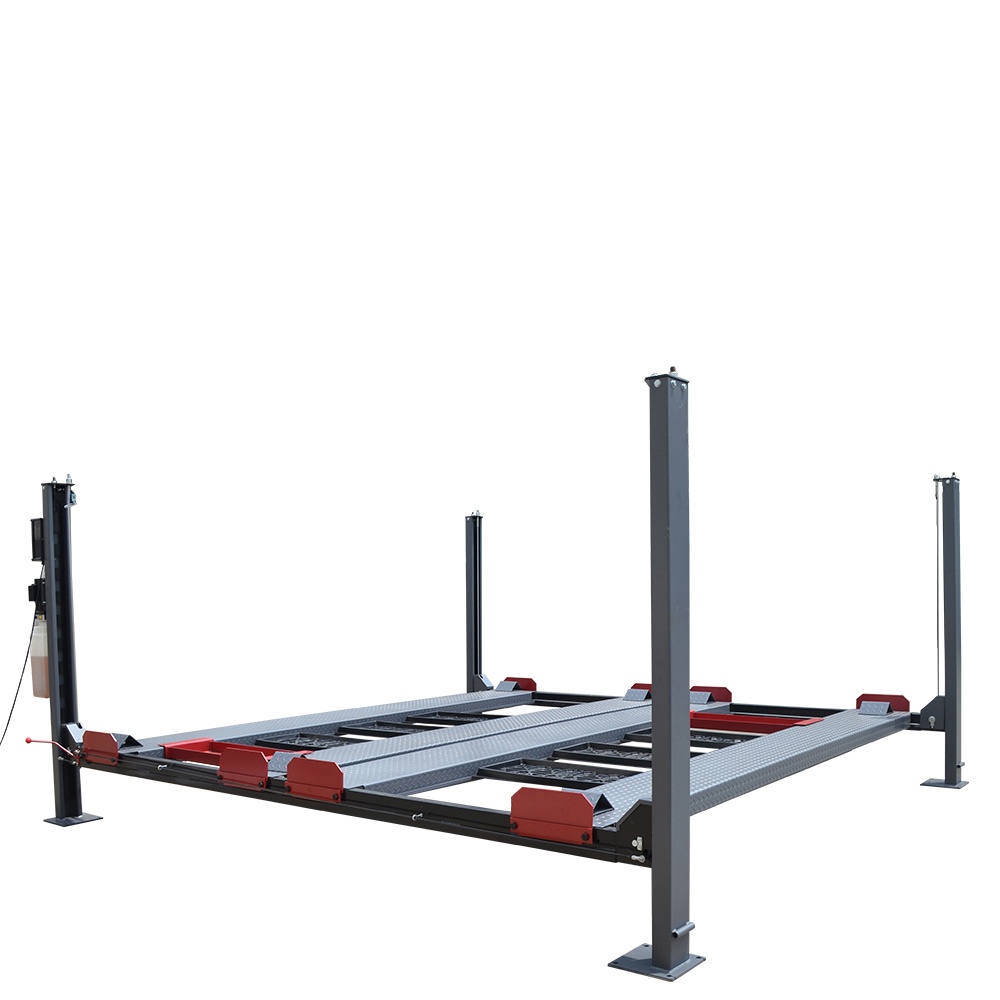

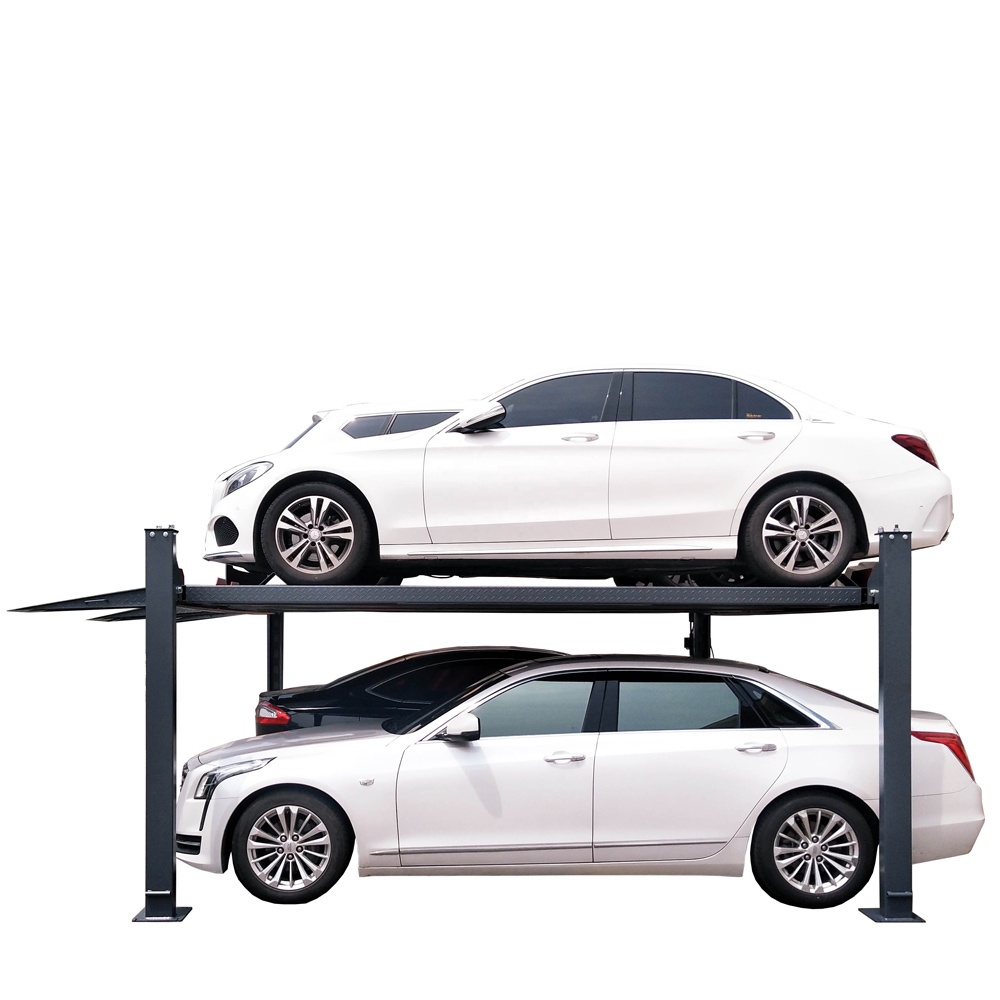

4.2 Ton Double Four Post Parking Lift – CE-certified and ISO 9001-compliant, this space-saving solution parks four cars in two spaces. Equipped with a mobile kit for portability and a robust hydraulic cylinder under the runway for smooth lifting. Features single-point manual locks, mechanical safety locks on each column, free jack/drip trays for maintenance, and drive-on protection with baffle blocks. Optional 24V control box enhances safety. Ideal for secure, efficient home or garage parking and servicing.
Lifting Capacity: | 4.2ton |
Min. Height | 134mm |
Lifting Height: | 1880mm |
Overall Length: | 4200mm |
Runway Width: | 894mm |
Unilateral Runway Width: | |
Height of Post : | 2190mm |
Runway Width: | 955mm |
Mount Width: | 5400*2930mm |
Lifting Time: | 70s |
Motor Power: | 2.2kw |
Power Supply: | 220v/240v/380v/415v |
