Anti-skid platform
The integrated anti-skid platform increases the accuracy of getting on the vehicle and prevents situations such as tire slipping and inability to get on the vehicle in rainy days.
Extended platform
For special long-wheelbase models, the extended platform can be used to increase the applicable model and solve 99% of lifting problems.
Laser cutting
The whole body of the machine is laser cut, and the scissor arm is integrated to enhance the stability and safety of lifting.
Quantity
ltem No.

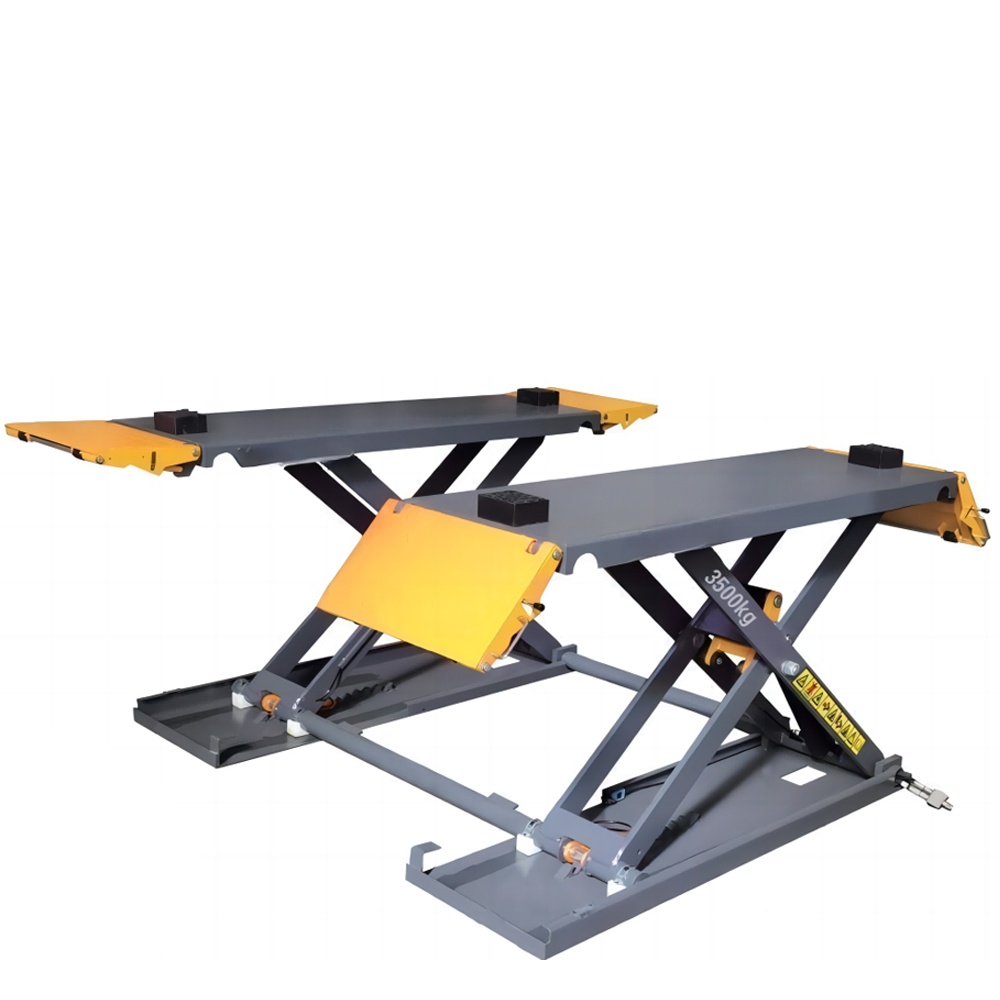

3.5 Ton Mobile Mid-Rise Scissor Alignment Lift features an anti-skid platform for precise vehicle positioning, preventing tire slippage in wet conditions; extendible platform accommodates long-wheelbase models, solving 99% of lifting challenges. Laser-cut integrated scissor arms and body ensure structural stability and safety. Mobile mid-rise design delivers flexibility for tire and alignment services in diverse workshop environments.
Capacity | 3.5 ton |
Motor Power | 380V/220V/110V, 2.2kw |
Lifting Height | 110-1050mm |
Platform Length | 1400mm |
Platform Width | 530mm |
Lifting Time | ≤65s |
