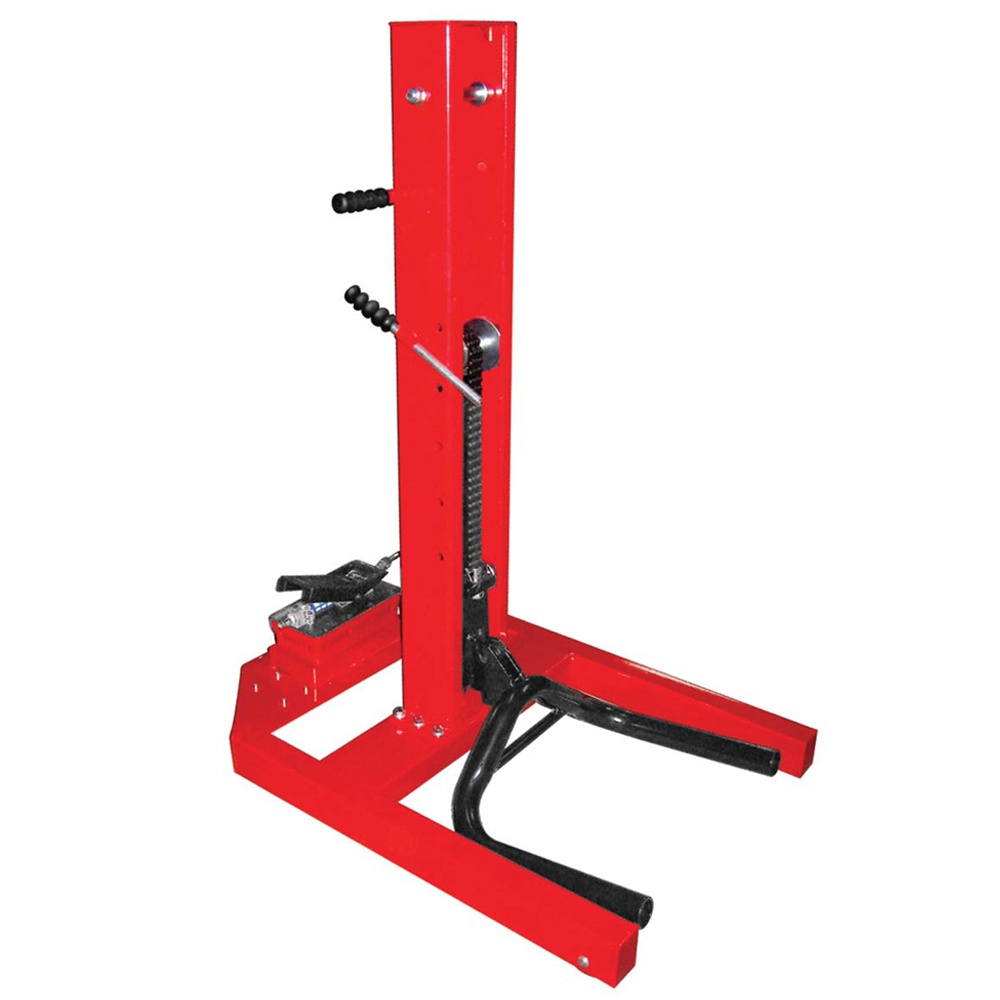

3 Ton Air/Hydraulic Car Lift

15280

It's a mobile hydraulic crick lift, with a column structure, built and manufactured to allow the operator to work on wheels or under - doors at men's height.
The raise and crescent movement are obtained using a sleigh fixed to a chain connected to an hydraulic cylinder.
Hydraulic pneumatic pump with hand remote control reduced dimensions and a remarkable ease of handling.
It has been projected for a sure use thanks to an easy and efficient manual block - the safety pin.
The manual safety pin permits the column carriage to be blocked during the working operation.

Quantity

ltem No.

Description

3 Ton Air/Hydraulic Car Lift is a mobile hydraulic lift with a robust column structure, designed for wheel and undercarriage repairs at ergonomic working heights. Its rise and crescent motion are powered by a hydraulic cylinder connected to a chain-driven sleigh mechanism. The compact air/hydraulic pump with handheld remote ensures easy operation and portability. A manual safety pin securely locks the column carriage during tasks, enhancing stability. Built for reliability in garages or workshops, this lift combines precision control and rugged safety for efficient 3-ton vehicle maintenance.

Specification
Lifting capacity	3000 kg
Lifting height	750mm
Pump Pressure	350bar
N.W.	105kg
G.W.	115kg
Overall Dimension	71x100x130cm
Package Size	122x74x36cm
