Hydraulic drive, low noise and nearly maintenance-free;
Cable-communication, SCM technology guarantees synchronization;

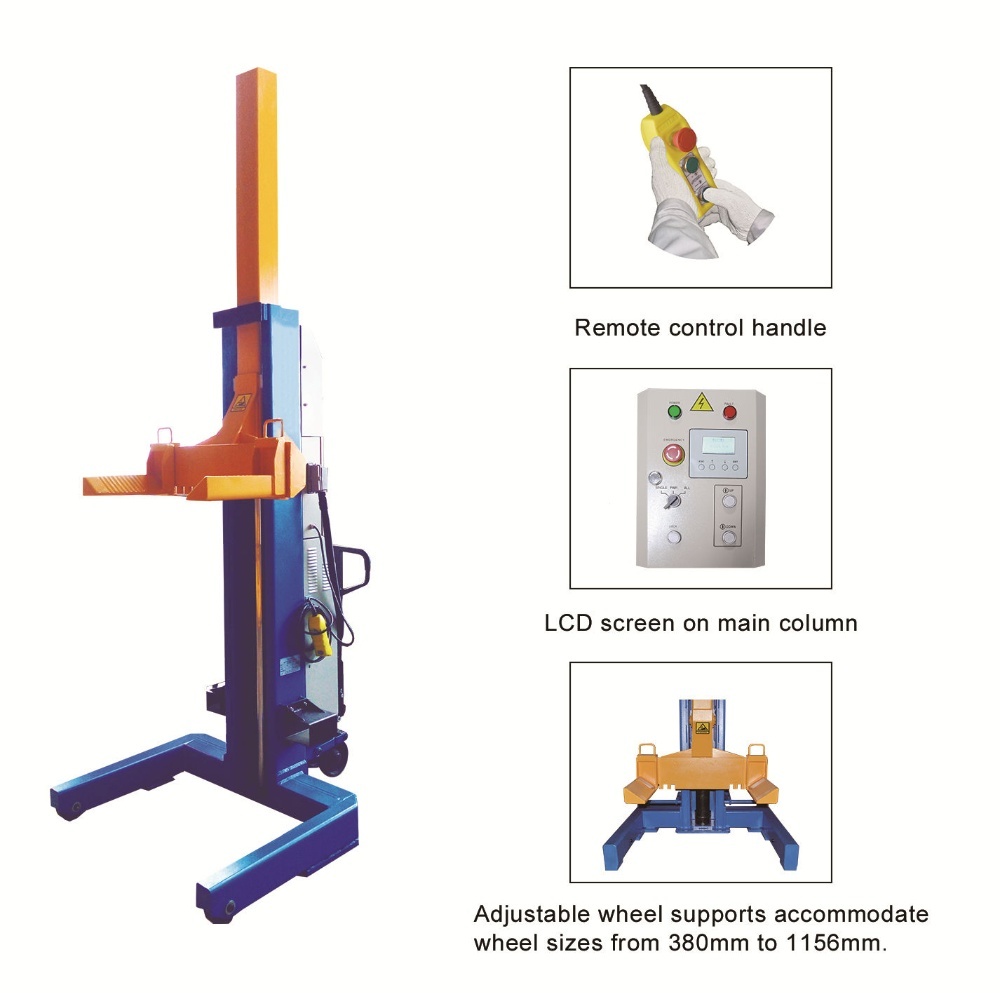

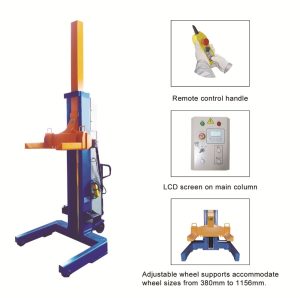

LCD screen on main column to show to show real-time lifting height, fault warnings and troubleshooting;
Mobile columns make your work easy and comfortable;
Operations available at all columns, UP/DOWN/LOCK/EMERGENCY STOP.
Quantity
ltem No.

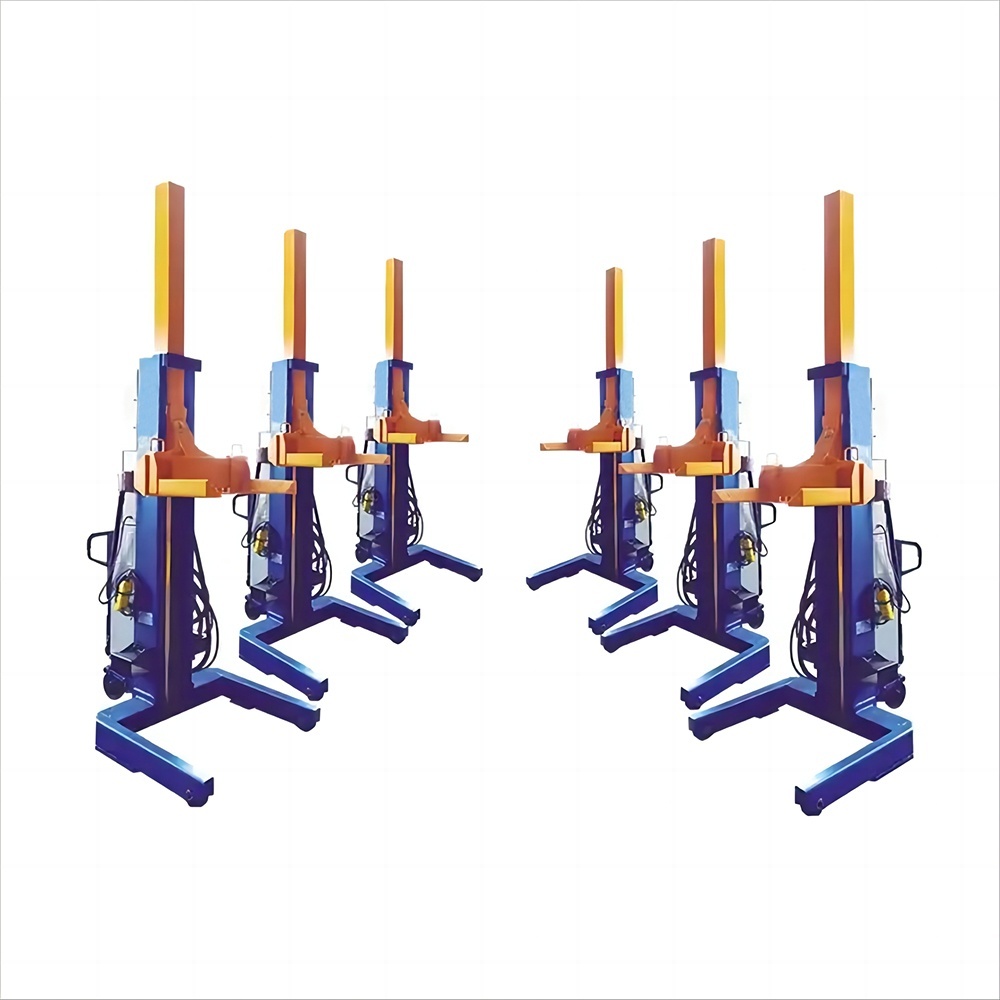

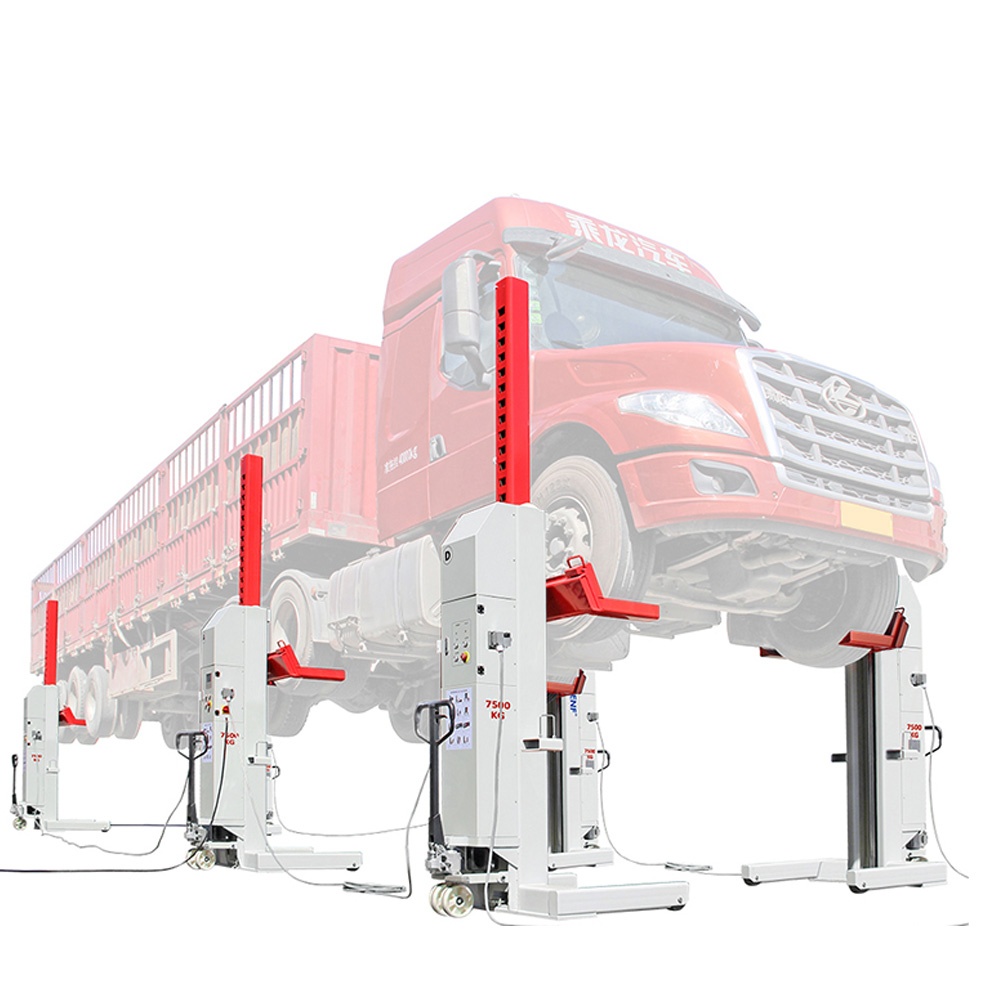

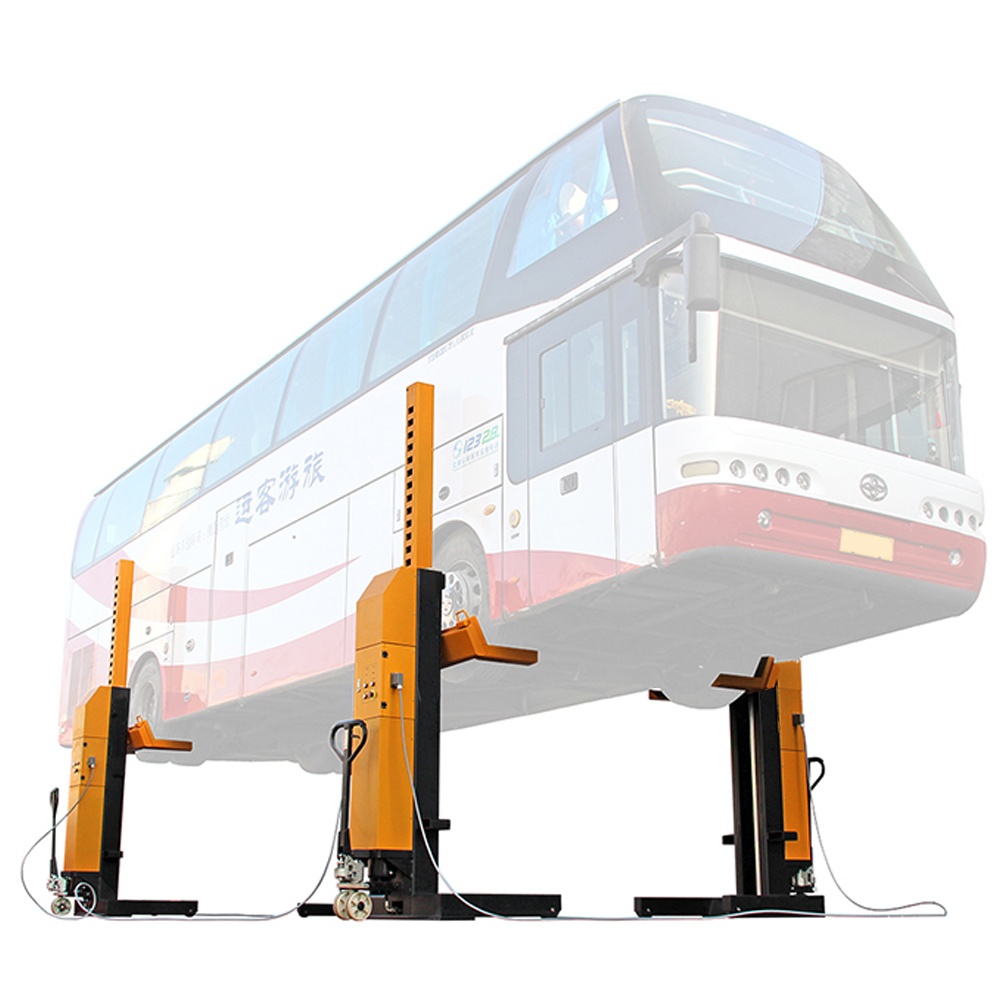

5.5Ton/7.5Ton Cabled Heavy Duty Column Lift offering low-noise, near maintenance-free operation with precise cable-SCM synchronization. Each column features an LCD screen for real-time height monitoring, fault alerts, and diagnostics. Mobile columns enhance flexibility, while UP/DOWN/LOCK/EMERGENCY STOP controls on all units ensure safety and ease. Ideal for workshops demanding quiet, reliable, and synchronized lifting of trucks, buses, or industrial equipment.
Capacity of Each Column | 5.5Ton/7.5Ton |
Number of Columns | 4pc, 6pc |
Total Capacity | 22T/33T 30T/45T |
Lifting Height | 1900mm |
Column Height | 2470mm |
Forks Length | 402mm |
Applicable tine diameter | 500-1120mm |
Power unit | Electric-hydraulic pump |
Working voltage | 220v/380v, 2.2kw |
Column oversize | 2300x1100x1300mm |
