15021
15021
Electro-hydraulic driven lift without chain
Three taller versions available without having to change extension kits
Synchronization of cylinders independent from load distribution with mechanical leveling system
Mechanical safeties with automatic engagement and release
Full stroke cylinders minimize number of moving parts
Double screwed adaptor included as standard
Automatic arm safety
Pressure overload valve equipped in power unit
Voluntary driven control with 24V voltage
Anti-crushing protection
Quantity
ltem No.

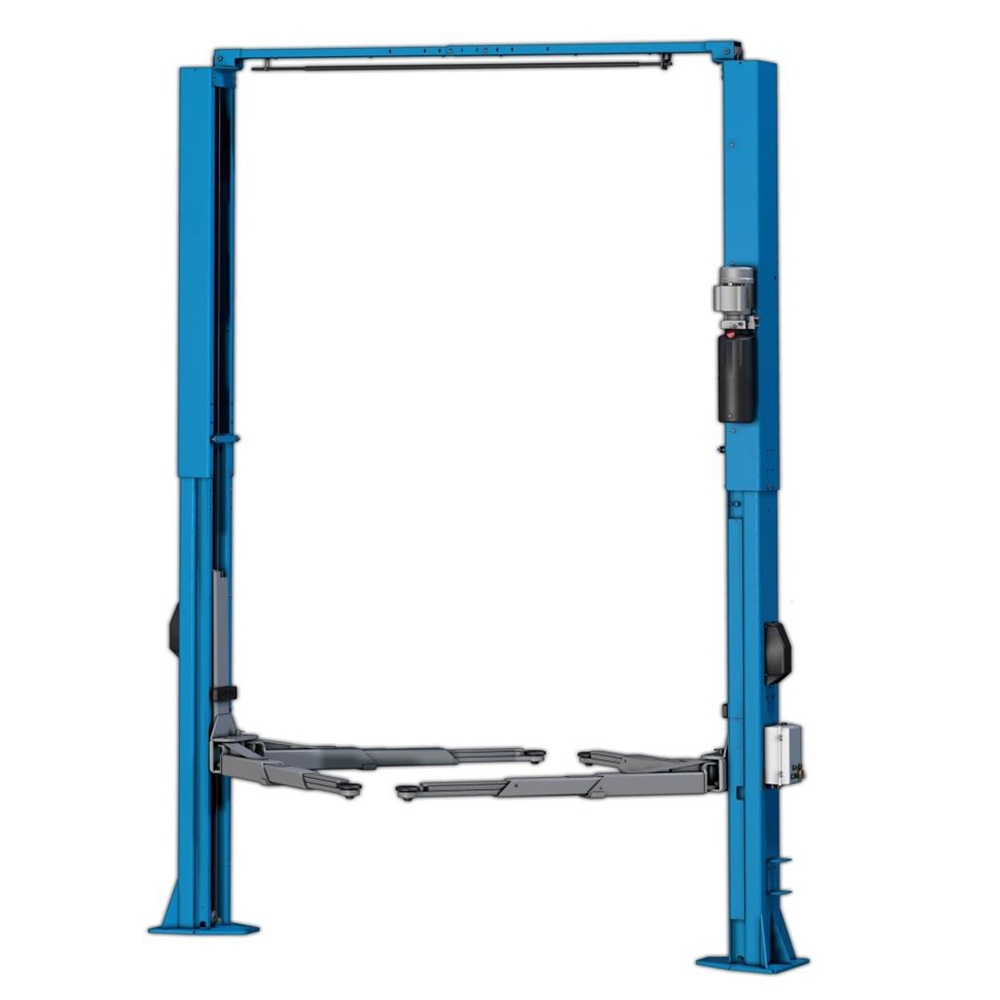

5.5 Ton Ultrahigh Clear Floor Lift delivers electro-hydraulic, chain-free operation with three adjustable heights for versatile applications. Featuring synchronized cylinders and a mechanical leveling system for load-independent stability, it integrates full-stroke cylinders to minimize components and enhance reliability. Equipped with automatic arm safety, 24V control, pressure overload valves, and anti-crushing protection, this lift ensures secure lifting through auto-engaging mechanical safeties. The standard double screwed adaptor adds convenience, while its robust design meets the demands of high-clearance automotive workshops for precision and safety.

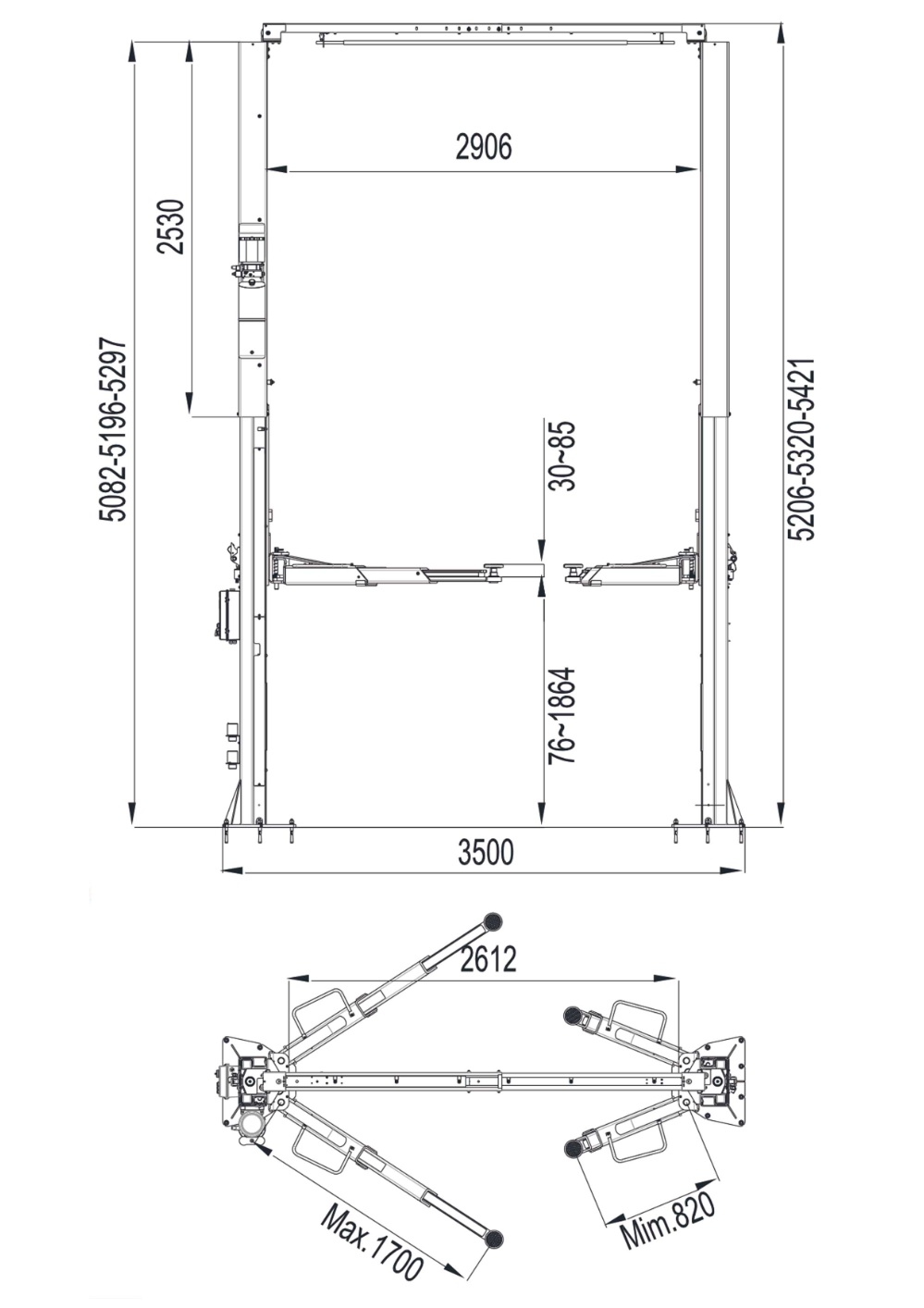

Specification | |
Lifting Capacity: | 5500kg |
Max. Lifting Height: | 1894mm |
Min. Height: | 106mm |
Overall Height: | 106mm |
Drive Thru: | 5206, 5320, 5421mm |
Lifting Time: | 50s |
Weight: | 1020kg |
