3.5/3.8/4/4.5/5 Ton Reinforced Column Type Two Post Lift

15012

The equipment uses eight-way Bending column, greatly enhance the strength of the column, lifting more safe heavy-duty.
The am support of the sliding platform of the equipment is bent once to meet the lifting load of large tonnage.
The safety lock of the support am is made of high-strength material to ensure the safe work of the support arm.
Meet the CE requirements.
Both the power unit and the oil cylinder have passed the fatigue test under working condition.
Anti-riot throttling valve is standard in the oil cylinder of this machine.
The device is unlocked by electronic control.
The support arm is equipped with a pressure-proof foot device and a tool box.

Quantity

ltem No.

Description

3.5/3.8/4/4.5/5 Ton Reinforced Column Type Two Post Lift employs eight-way bending columns for superior structural strength and heavy-duty safety, accommodating loads from 3.5 to 5 tons. Features high-strength safety locks, CE compliance, and fatigue-tested power units/oil cylinders for reliable performance. Equipped with anti-riot throttling valves, electronic unlocking, and pressure-proof foot tools for accident safety and operational stability. Integrated tool boxes and bent arm supports enhance workspace efficiency, ideal for demanding automotive repair environments.

Features

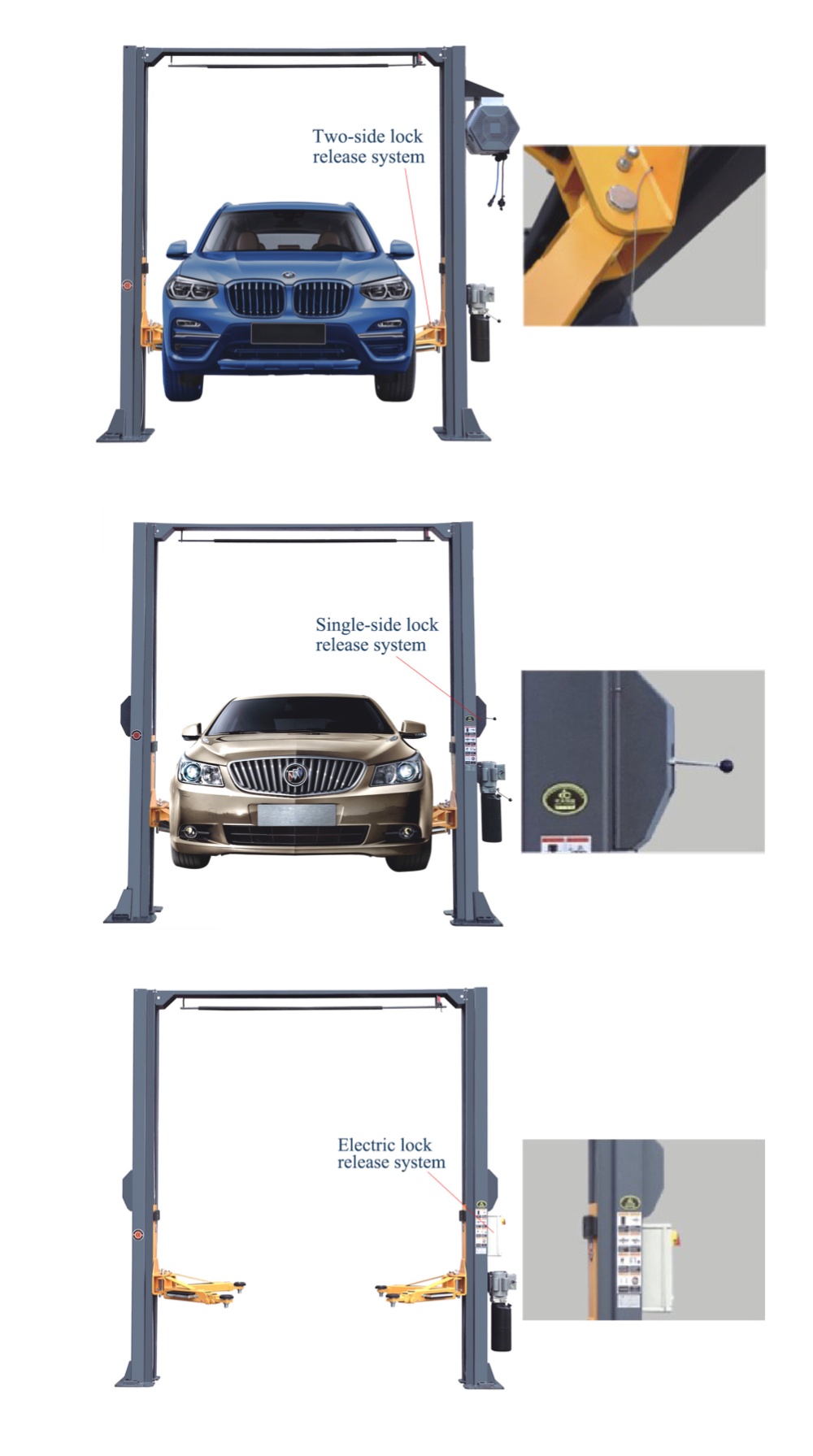

Optional lock release type:

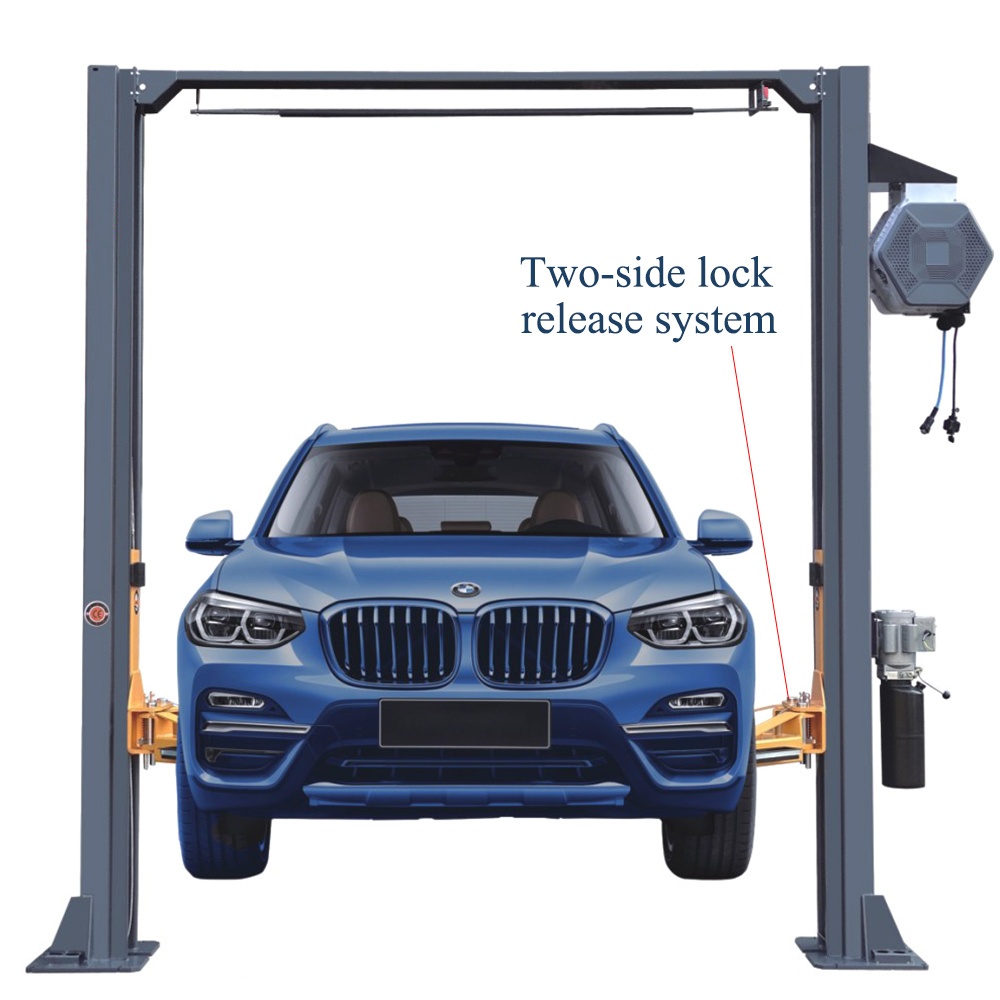

Two-side lock release system

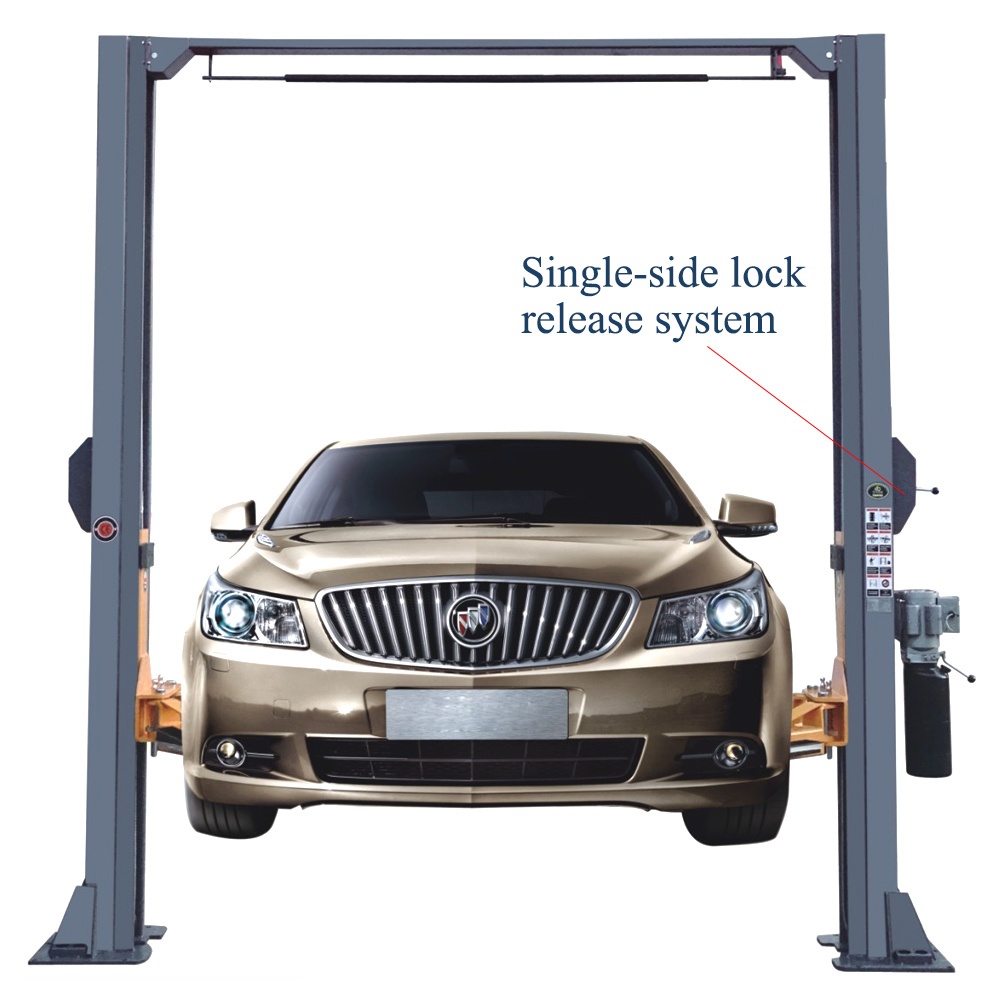

Single-side lock release system

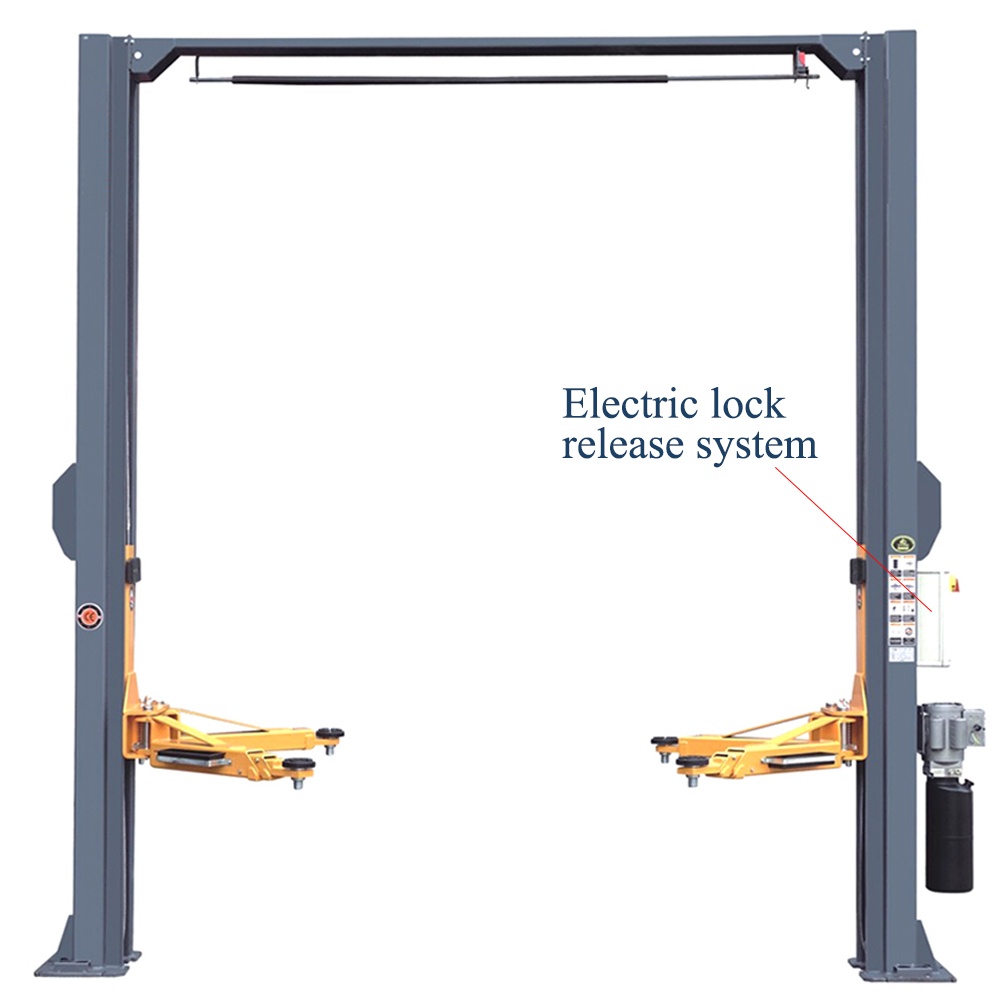

Electric lock release system

Capacity:

3.5 Ton
3.8 Ton
4 Ton
4.5 Ton
5 Ton

15012 (9

Model	15012 – 3.5T	15012 – 3.8T	15012– 4T	15012 – 4.5T	15012 – 5T
Lifting Capacity	3.5T	3.8T	4T	4.5T	5T
Maximum Lifting Height	1800mm
Equipment Minimum Height	92mm
Rising Time	≤50s
Descent Time	≤20s≤50s
Passing Width	2400mm
Equipment Width	3420mm
Equipment Height	3587mm
Motor Power	2.2kw
Motor Voltage	110v/220v/240v/380v/415v 50Hz/60Hz
Package Size	3600/2800x500x750mm
