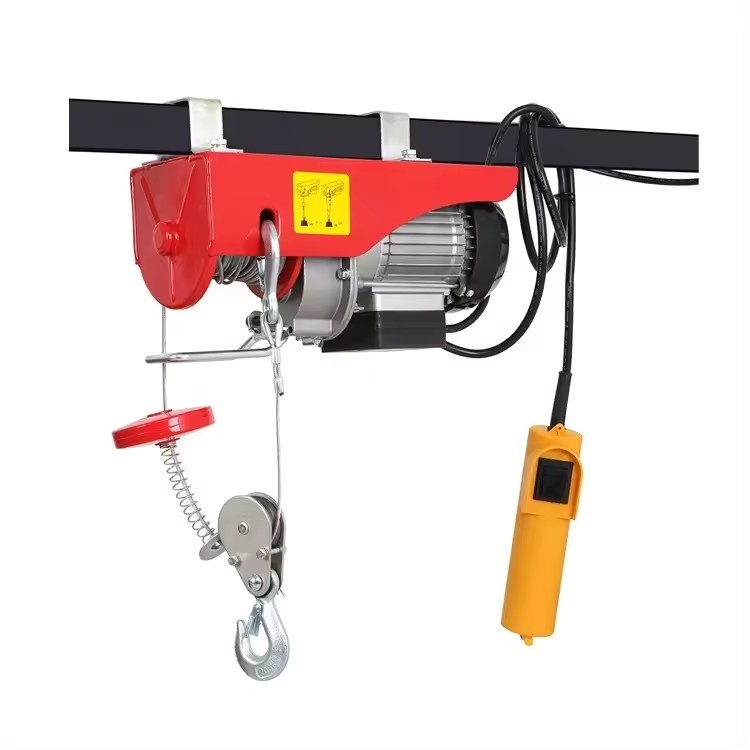

Mini Electric Hoist CE

24026

High quality PA wire rope hoist electric is widely used in machine manufacturing,electronics,automobiles, shipbuilding,workpiece assembly and high technology industrial park and other modern industrial production line, assembly line,assembly machine, logistics delivery and so on. In the warehouse,dock, ingredients, hanging basket and the spaceis narrow work site operation, can show its good quality.

Quantity

ltem No.

Features

• Upper and lower limit function
• Anti-reverse winding function
• The emergency stop switch
• Thermal protection terminal
• Protection class IP54
• Insulation class B
• Group of mechanisms M1

The motor is lightweight and efficient, with an asbestos free braking system and low energy consumption.

Stamped steel structure shell, lightweight and sturdy.

High strength safety hooks.

Lightweight, beautiful and durable

Capacity(kg)		Input power(220v)	Lifting height(m)
Single hook	Double hook	Input power(220v)	Lifting height(m)
100	200	480	12/6
125	250	510	12/6
150	300	600	12/6
200	400	950	12/6
250	500	1020	12/6
300	600	1200	12/6
350	700	1250	12/6
400	800	1300	12/6
500	990	1600	12/6

A:Single&6m

B:Single&12m

C:Double&6m

D:Double&12m
