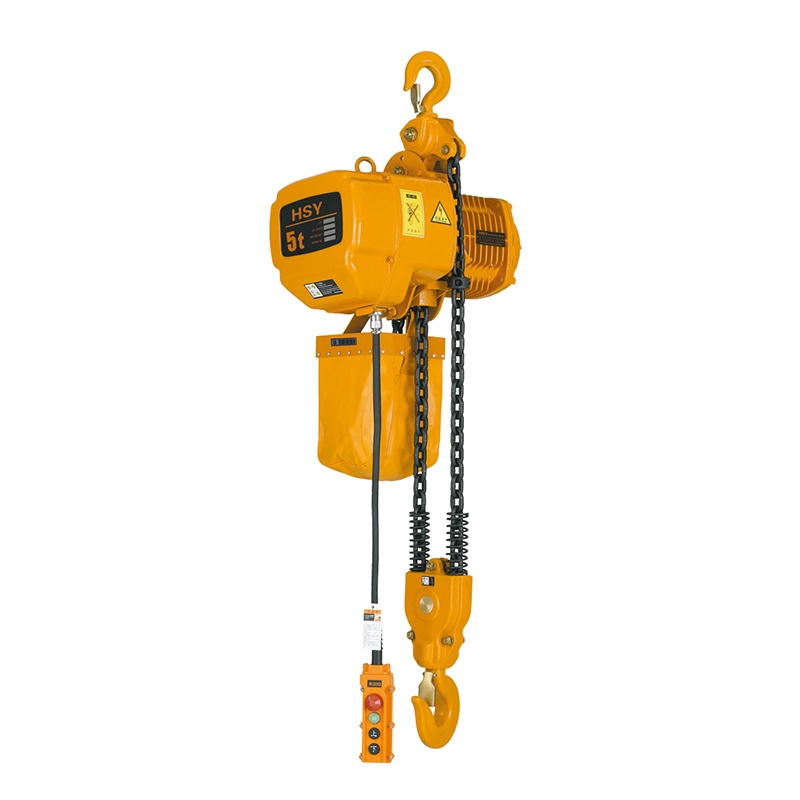

HHXG Series Electric Hoist
This proudct is the most suitable for installation which requires a low ceiling of building or maximizes effective lift, especially suitalbe for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required. The trolleys are availalbe as option.
Quantity
ltem No.
Description
HHXG Series Electric Hoist
Features
Light weight, compact design
Most tensile safety hooks
Compact and nice chain container
Limit switch devices
Specification
| Item No. | Capacity(T) | Power(kw) | Lifting speed(m/min) | No. of chain |
| S | 1 | 1.5 | 6.6 | 1 |
| D | 1.5/0.5 | 6.6/2.2 | 1 | |
| S | 2 | 1.5 | 3.3 | 2 |
| D | 1.5/0.5 | 3.4/1.1 | 2 | |
| S | 3 | 3 | 4.4 | 2 |
| D | 3.0/1.5 | 4.5/1.5 | 2 | |
| S | 3 | 3 | 2.2 | 3 |
| D | 3.0/1.5 | 2.3/0.8 | 3 | |
| S | 5 | 3 | 2.7 | 2 |
| D | 3.0/1.5 | 2.7/0.9 | 2 |
★ S: single speed D:dual speed
