Manual pallet stacker offer simplicity, cost-efficiency, and versatility. They're easy to use, budget-friendly, and adaptable to various environments, including narrow spaces. Their independence from power sources ensures constant availability. While ideal for short-distance tasks, they have limitations in load capacity and aren't suitable for heavy or intensive use. So, they're apractical choice for lighter, occasional material handling needs.
Quantity
ltem No.

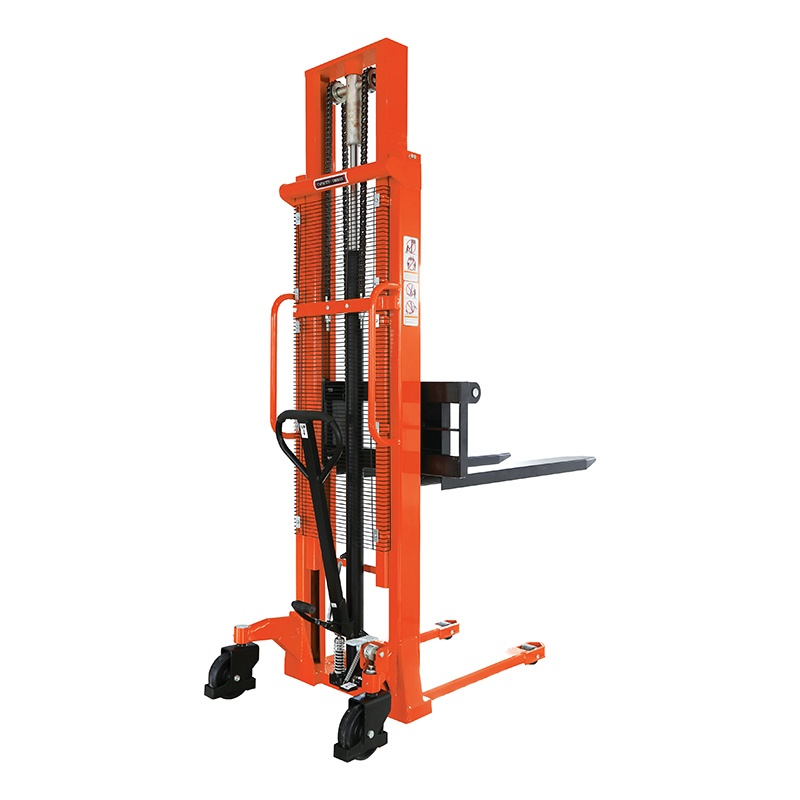

Two Step Hand Stacker
Sturdy and compact enough to fit through standard door and to operate in congested areas
Lifting function operated by foot and hand controls
Allow the operator to work without having to perform extreme body movements
Rated load(T) | 1.0T | 1.0T | 1.0T |
Load center(mm) | 400 | 400 | 400 |
Min. Fork Height(mm) | 90 | 90 | 90 |
Max. Fork Height(mm) | 2000 | 2000 | 2000 |
Fork Length(mm) | 1000 | 1000 | 1000 |
Outer width of fork (mm) | 320-850 | 320-850 | 320-850 |
Min. turning radius (mm) | 1250 | 1250 | 1250 |
Wheel base (mm) | 1100 | 1100 | 1100 |
base distance (mm) | 210 | 210 | 210 |
Overall length (mm) | 1340 | 1340 | 1340 |
Overall width (mm) | 850 | 850 | 850 |
Overall height (mm) | 1560 | 1810 | 2060 |
Total Weight(kg) | 340 | 355 | 370 |
