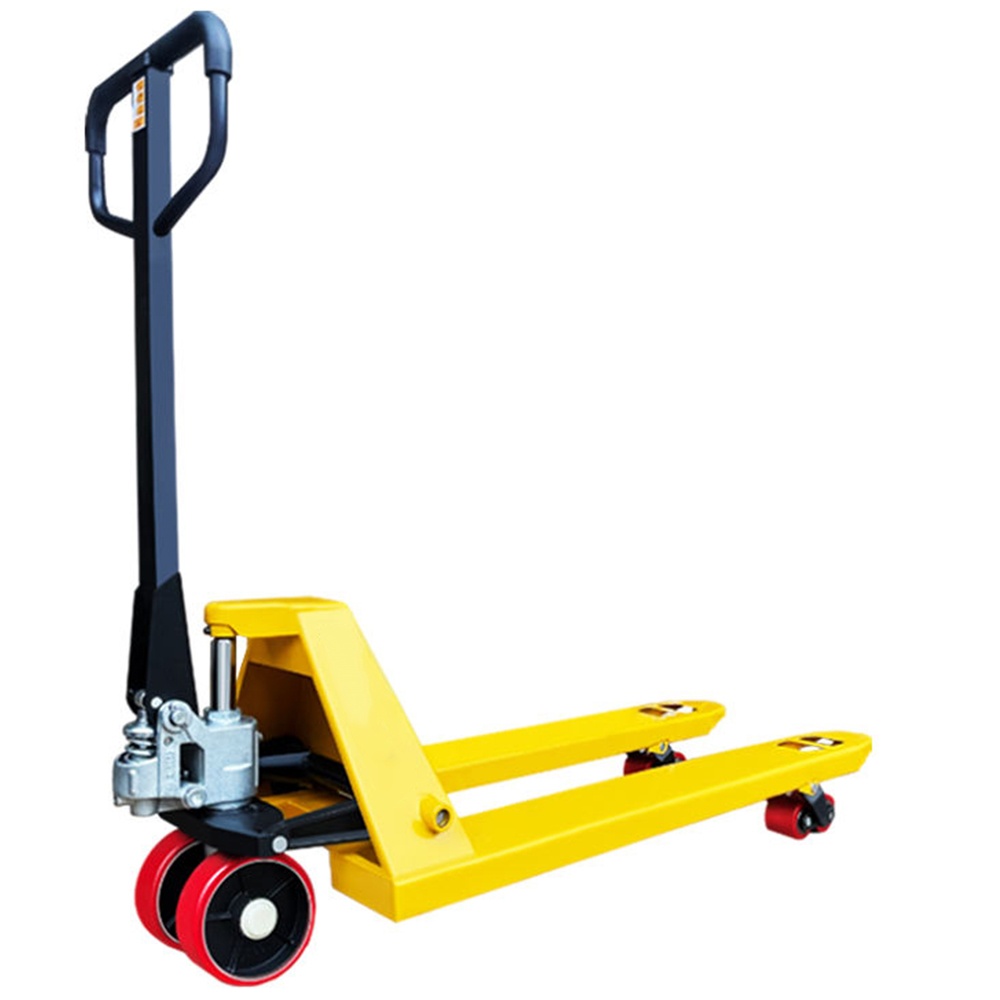

CBY-II Series Hand Pallet Truck
Hydraulic Powerful pallet truck also called Manual Carrier, is the ideal " storage aid" and " handling partner " for all manual transport tasks over short distances, excellently suitable for use on lorries, warehouses ,logistics and markets ect .
Quantity
ltem No.
Description
CBY-II Series Hand Pallet Truck
Features
Powder coated chassis made of high grade steel.
High quality welding iron handle for easy operation
Contain hydraulic circuit and fuel tank, insert imported sealing ring to gurantee the safety of hydraulic system and prevent HPT from oil-leaking.
Specification
Capacity(T) | 2 | 2.5 | 3 |
Min.fork height(mm) | 85/75 | 85/75 | 85/75 |
Max.fork height(mm) | 395/185 | 395/185 | 395/185 |
Lifting height(mm) | 110 | 110 | 110 |
Fork lenght(mm) | 1150/1220 | 1150/1220 | 1150/1220 |
Single Fork width(mm | 160 | 160 | 160 |
Fork overall width(mm) | 550/685 | 550/685 | 550/685 |
Fork wheel-single(mm) | Φ80×93/74×93 | Φ80×93/74×93 | Φ80×93/74×93 |
Fork wheel-tandem(mm) | Φ80×70 | Φ80×70 | Φ80×70 |
Steering Wheel(mm) | 73-92 | 73-92 | 73-92 |
Self Weight(k-single) | 180/144 | 180/144 | 180/144 |
