11530~11534
11530~11534
Foot pedal operation keeps hands free.
Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
Highly manoeuvrable on castors.
Can be fitted with adjustable gearbox support.
For raising and lowering transmissions and gearboxes in both front and rear wheel drive vehicles.
Suitable for cars, light commercial and small trucks, and general workshop applications.
The extra wide base gives the jack a high degree of stability.
Quantity
ltem No.

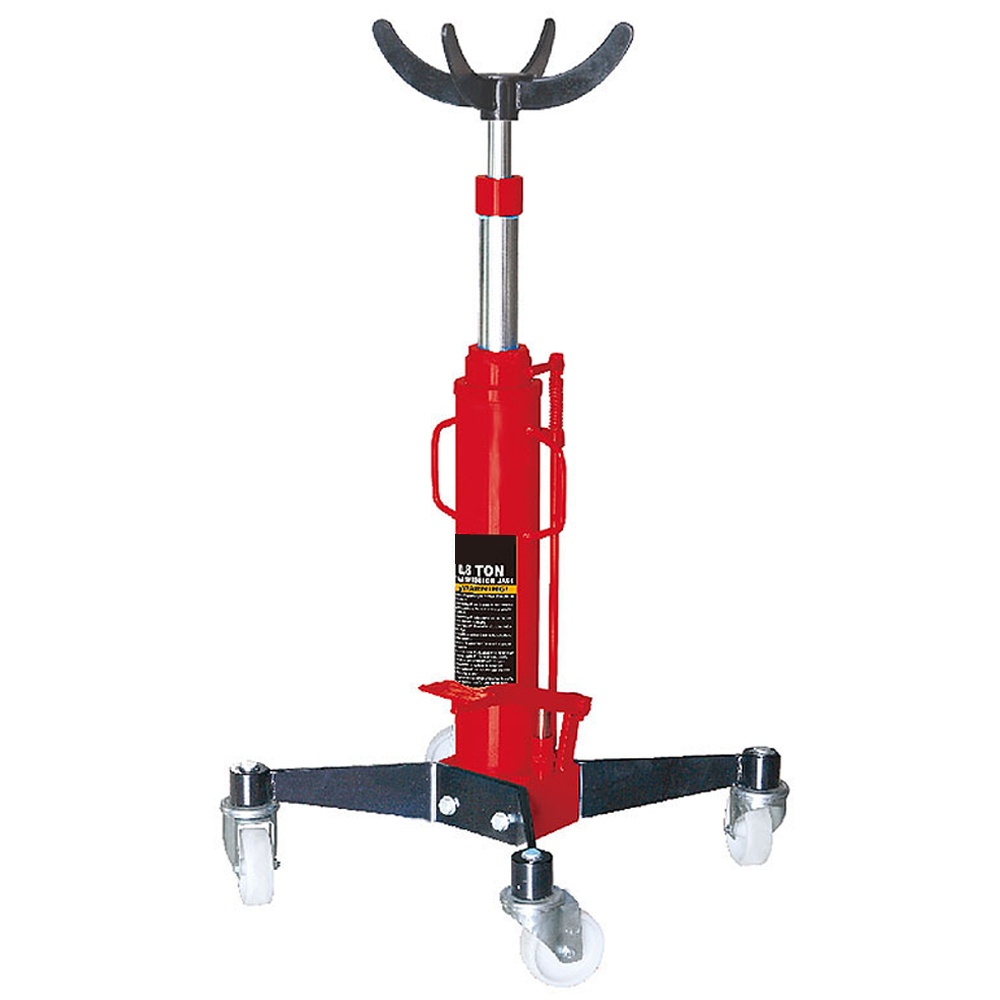

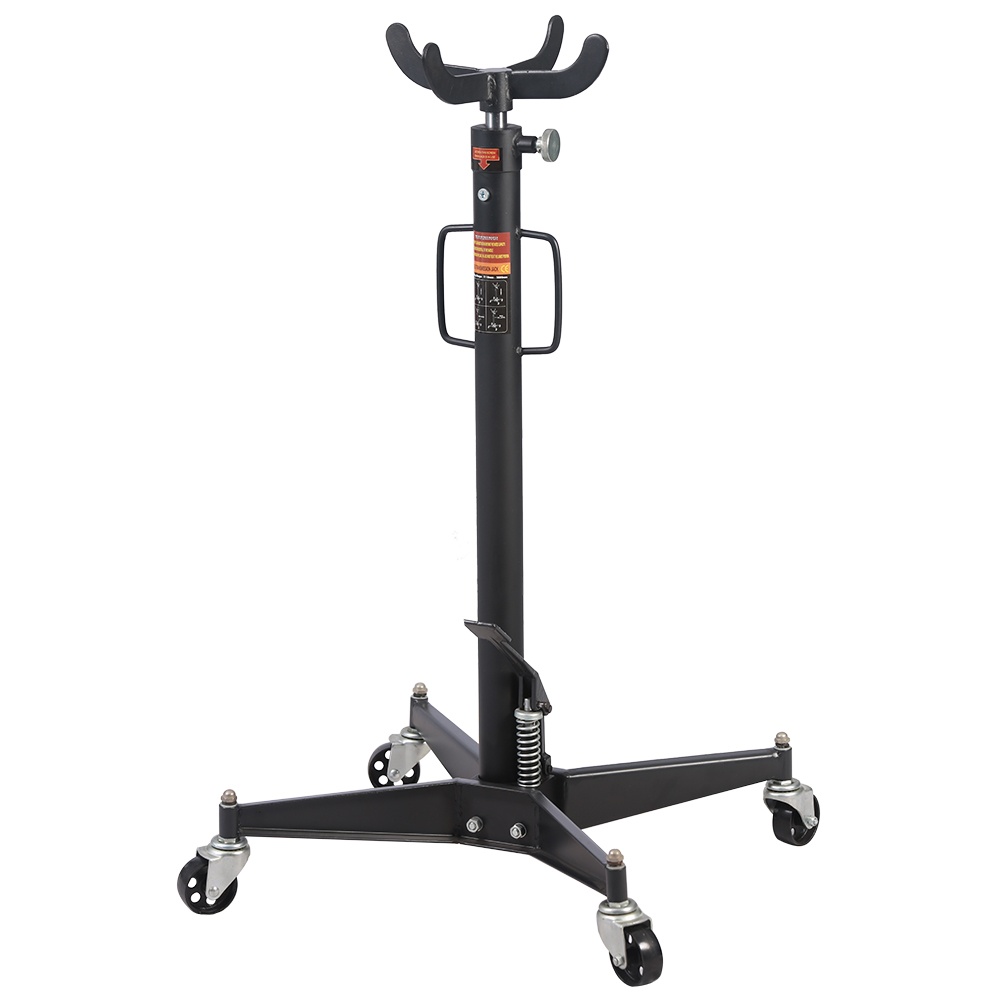

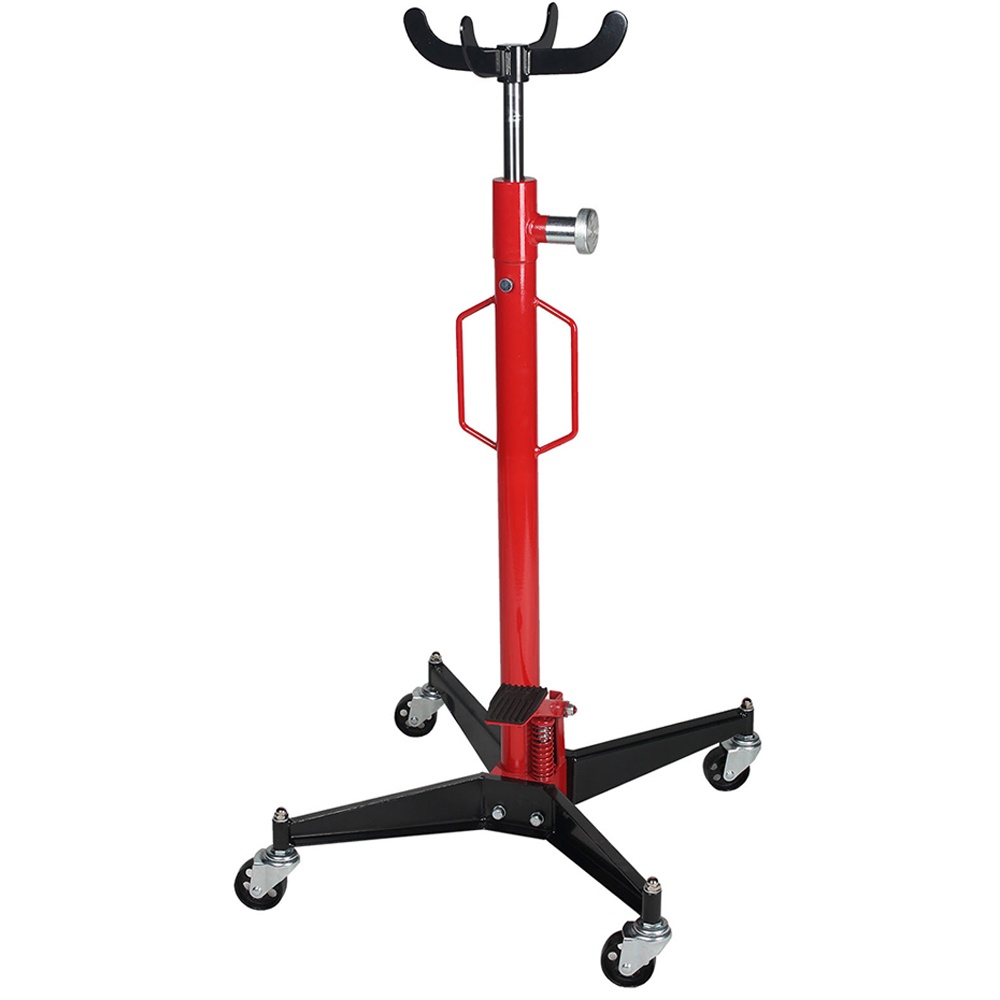

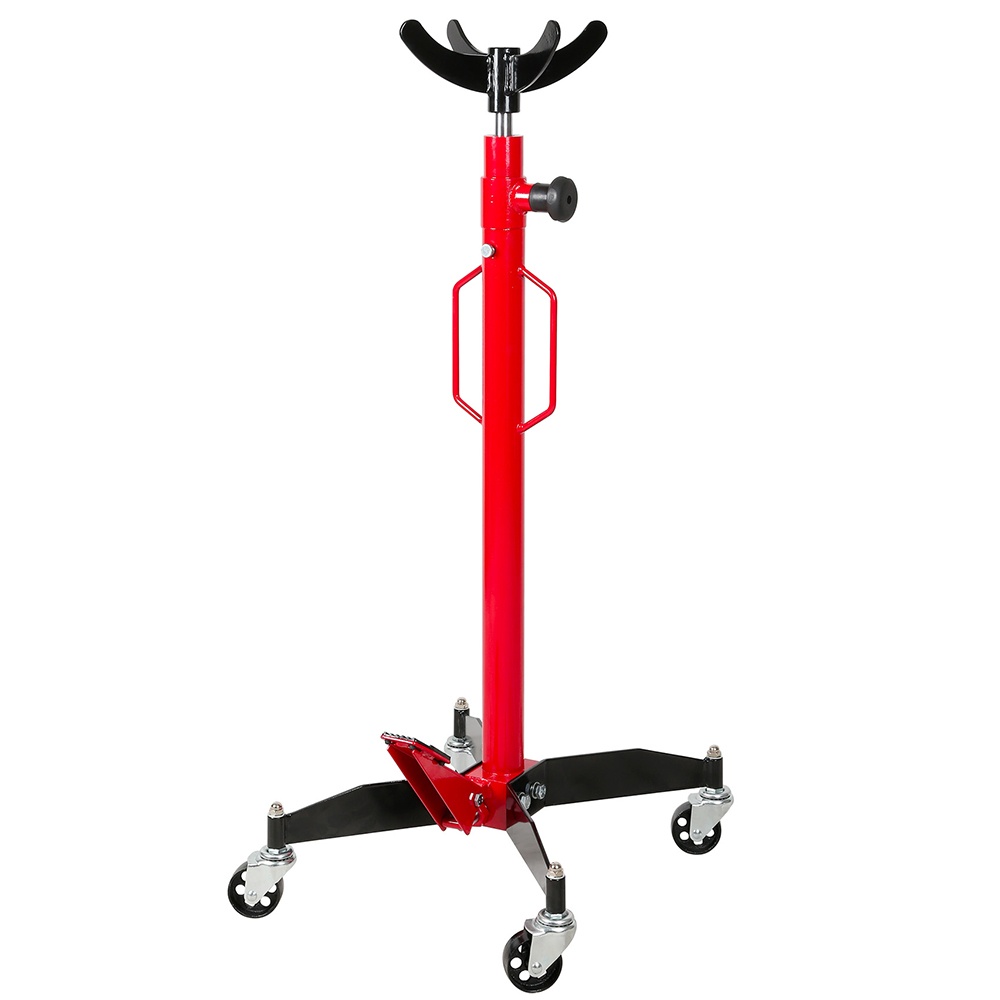

Hydraulic High Lift Transmission Jack is
designed for effortless lifting and positioning of transmissions. Four swivel
casters allow for moving easily and comfortably around the workspace. It can be
fitted with an adjustable gearbox support. Load capacities are available from
0.3 to 1.5 tons. Ideal for automotive repair shops, this Telescoping Transmission Jack provides stability and versatility for
transmission installation and removal.
Item No. | Capacity | Min.H/Max.H | NW/GW | Measurement |
11530 | 0.3T | 1120/1880mm | 22.5/25kg | 103*24*26cm |
11531 | 0.5T | 1180/1980mm | 28/30kg | 110*24*26cm |
11532 | 0.6T | 1180/1980mm | 27.5/30.5kg | 110*27.5*26cm |
11533 | 0.8T | 845/1840mm | 46/49kg | 87.5*39*26cm |
11534 | 1.5T | 1130/1915mm | 55.5/59kg | 117.5*32*26cm |
