China Telescoping Air Transmission Jacks Exporter

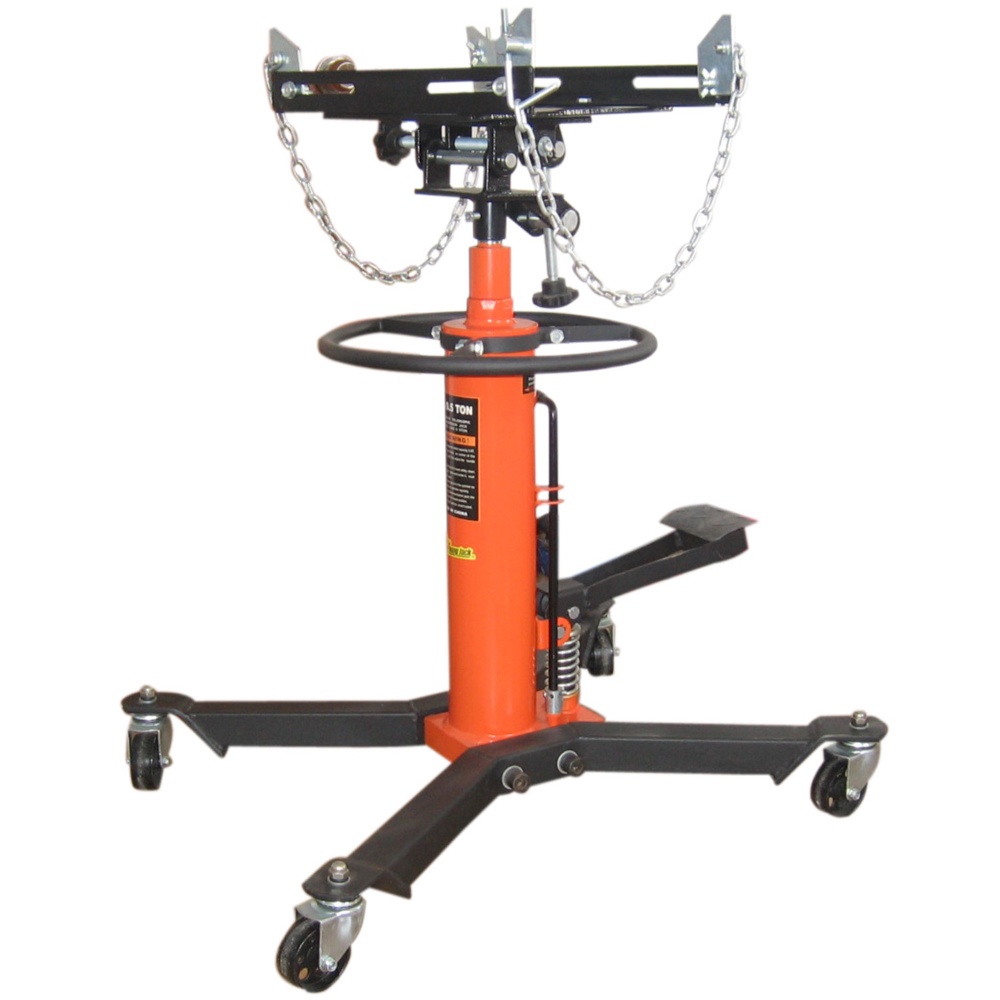

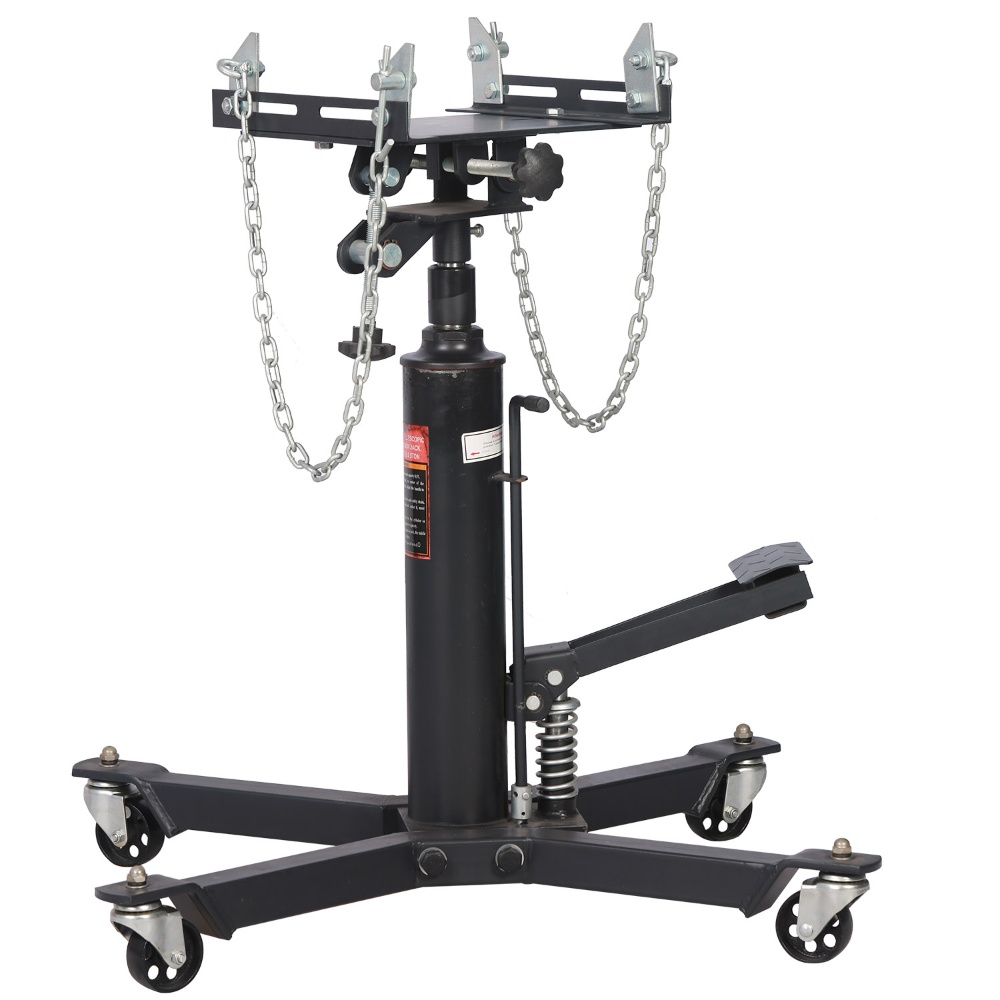

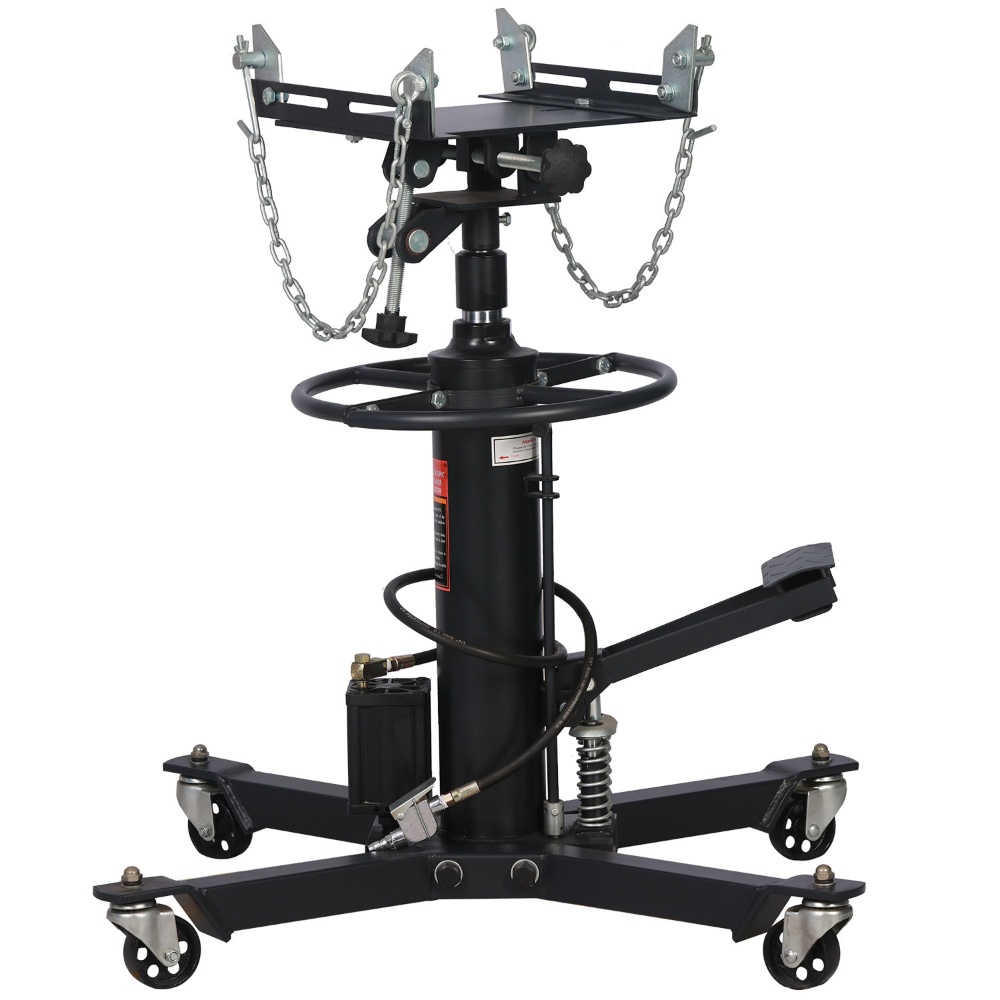

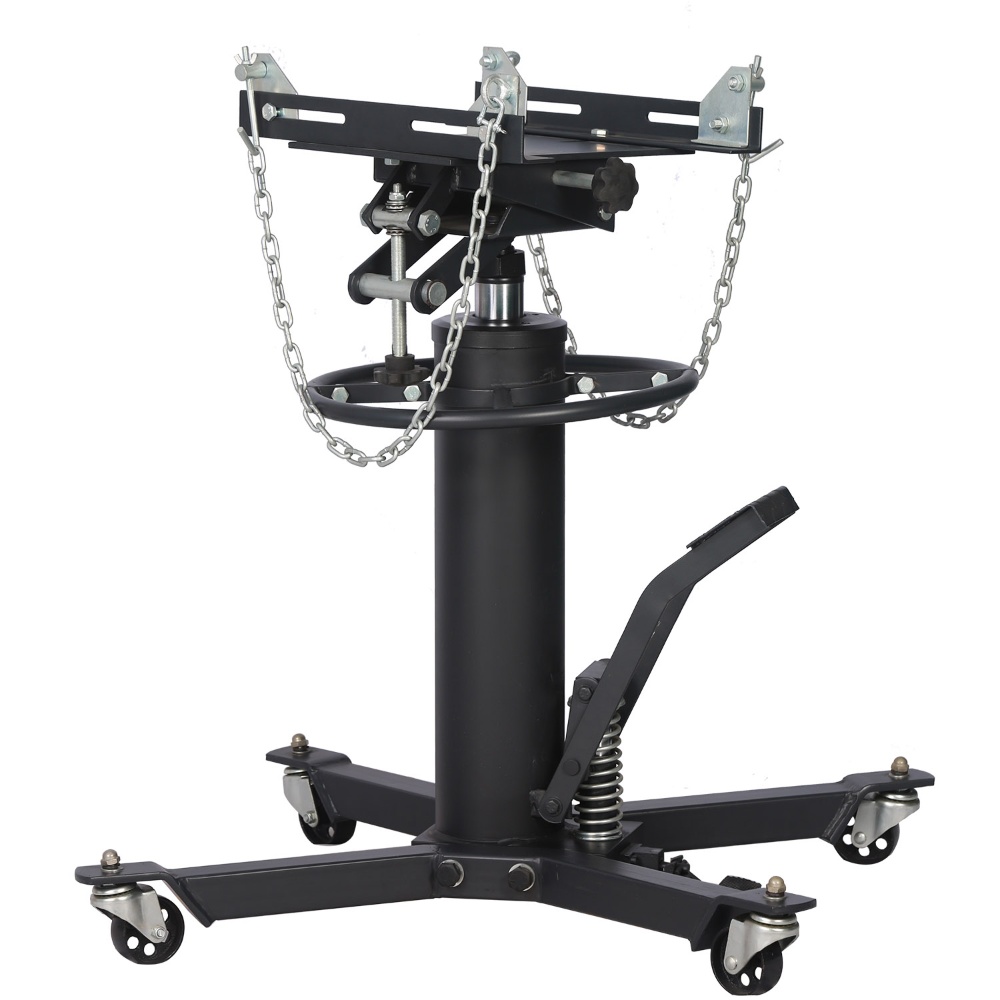

Hydraulic Telescoping Transmission Jack

11540~11543

Foot pedal operation keeps hands free.
Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
Highly maneuverable on castors.
For raising and lowering transmissions and gearboxes in both front and rear wheel drive vehicles.
Suitable for cars, light commercial and small trucks, and general workshop applications.
The extra wide base gives the jack a high degree of stability.

Quantity

ltem No.

Description

Telescoping Air Transmission Jack is
designed for lifting and positioning transmissions effortlessly. Four swivel
casters enable it to be maneuvered in the work area comfortably. The adjustable
saddle rotates to various angles to ensure precise alignment and safe lifting.
Additionally, the center auxiliary ring allows you to push or pull the jack,
improving overall convenience. Ideal for automotive repair shops, this High Lift Transmission Jack provides stability and versatility for
transmission installation and removal.

Item No.	Capacity	Min.H/Max.H	NW/GW	Measurement
11540	0.5T	840/1790mm	44.5/50kg	522480mm
11541	0.5T	840/1790mm	45.5/52kg	522480mm
11542	0.6T	870/1790mm	57/63.5kg	582470cm
11543	1T	875/1800mm	71/78kg	563787cm

*Pneumatic/hydraulic pump are optional
