With the hydraulic hand pump, floor transmission jacks will help you get your transmission in and out with ease.
Made of durable metal material, powder-coated finish boasts exceptional resistance against rust, corrosion, and grease.
Equipped with 4 swivel ball-bearing casters, convenient for use, store it neatly in your garage or repair shop for easy access.
Quantity
ltem No.

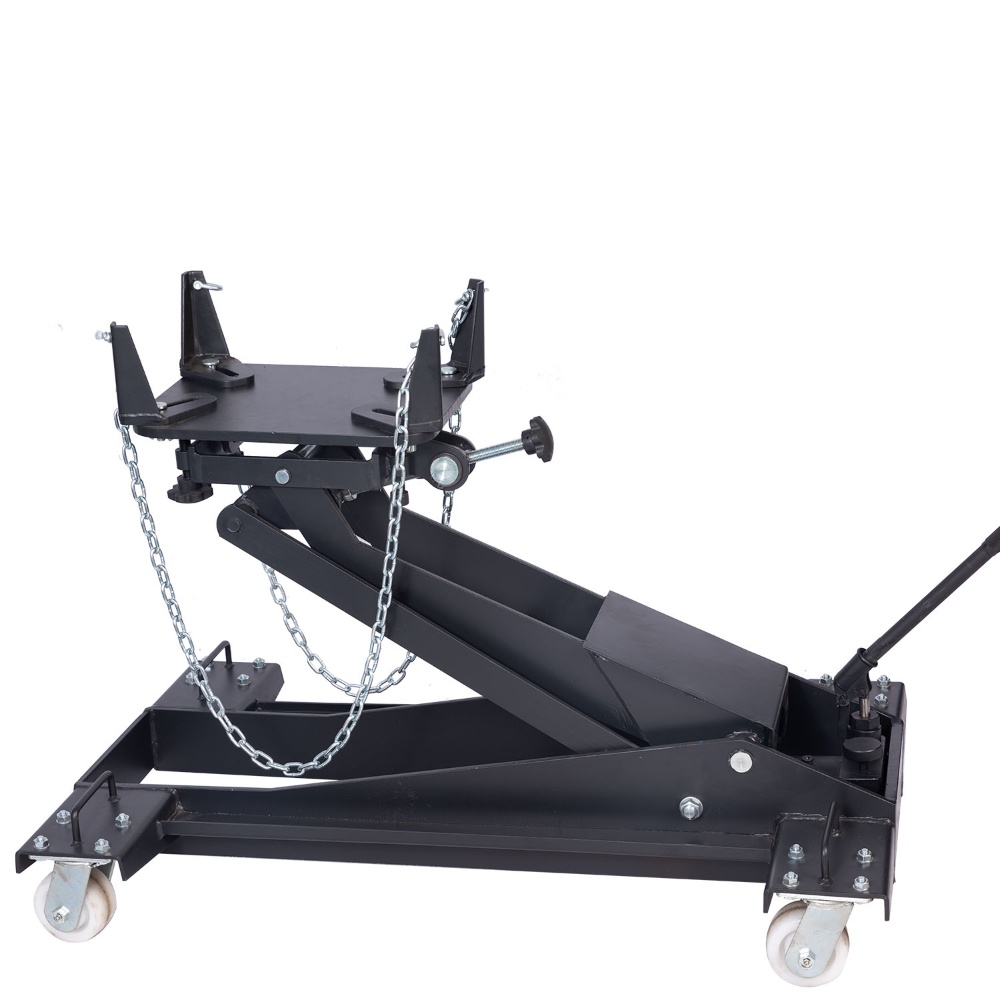

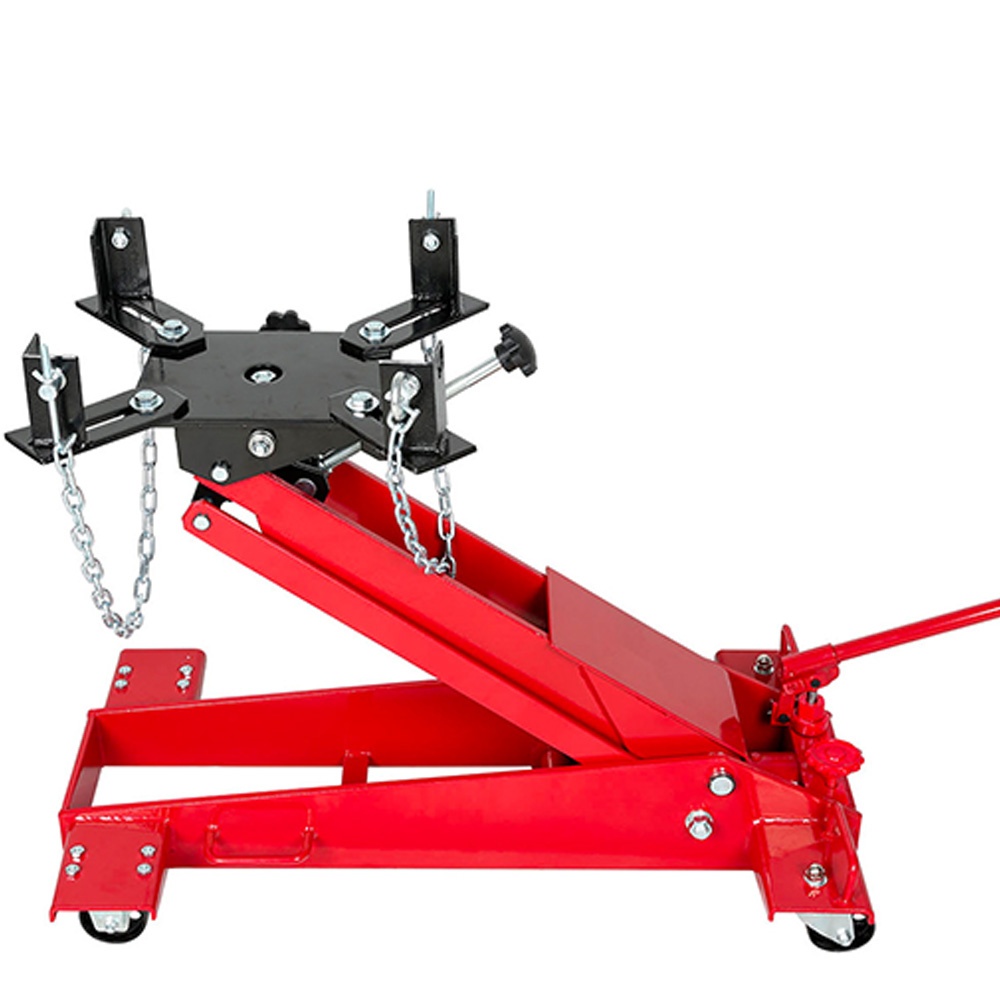

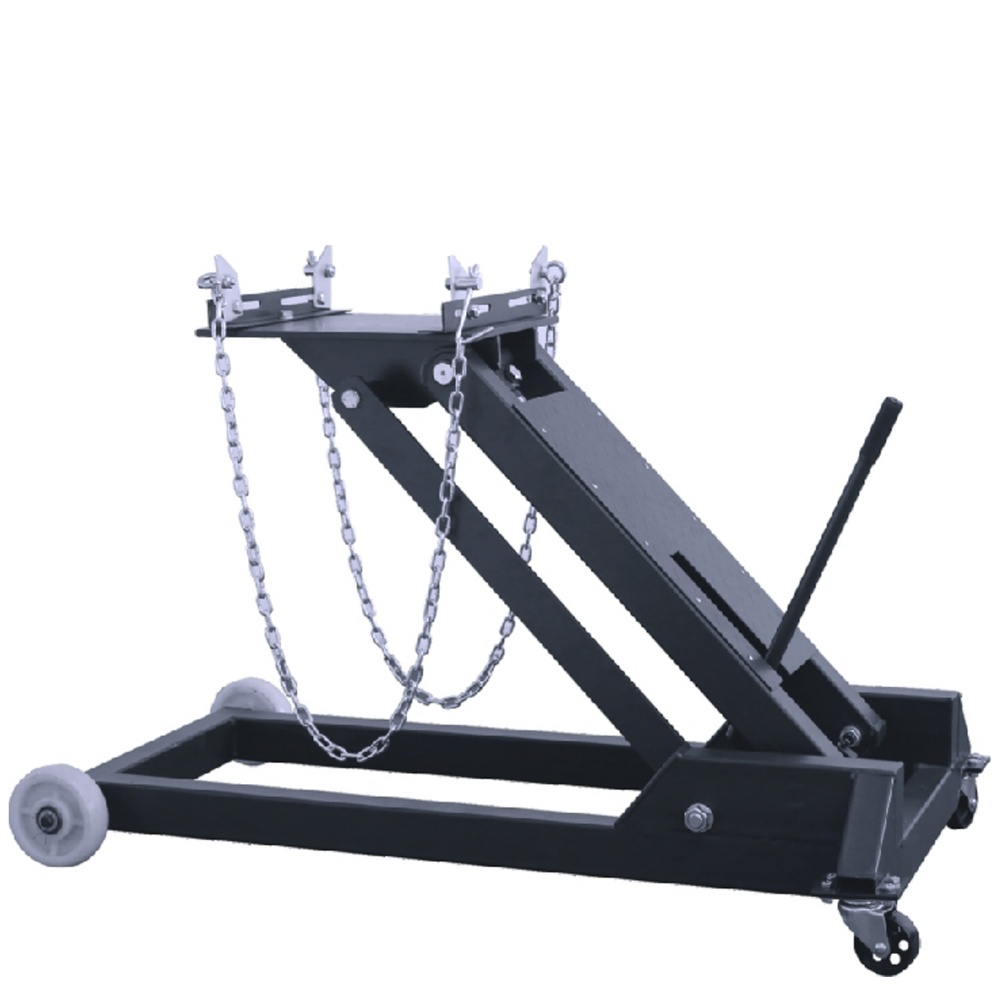

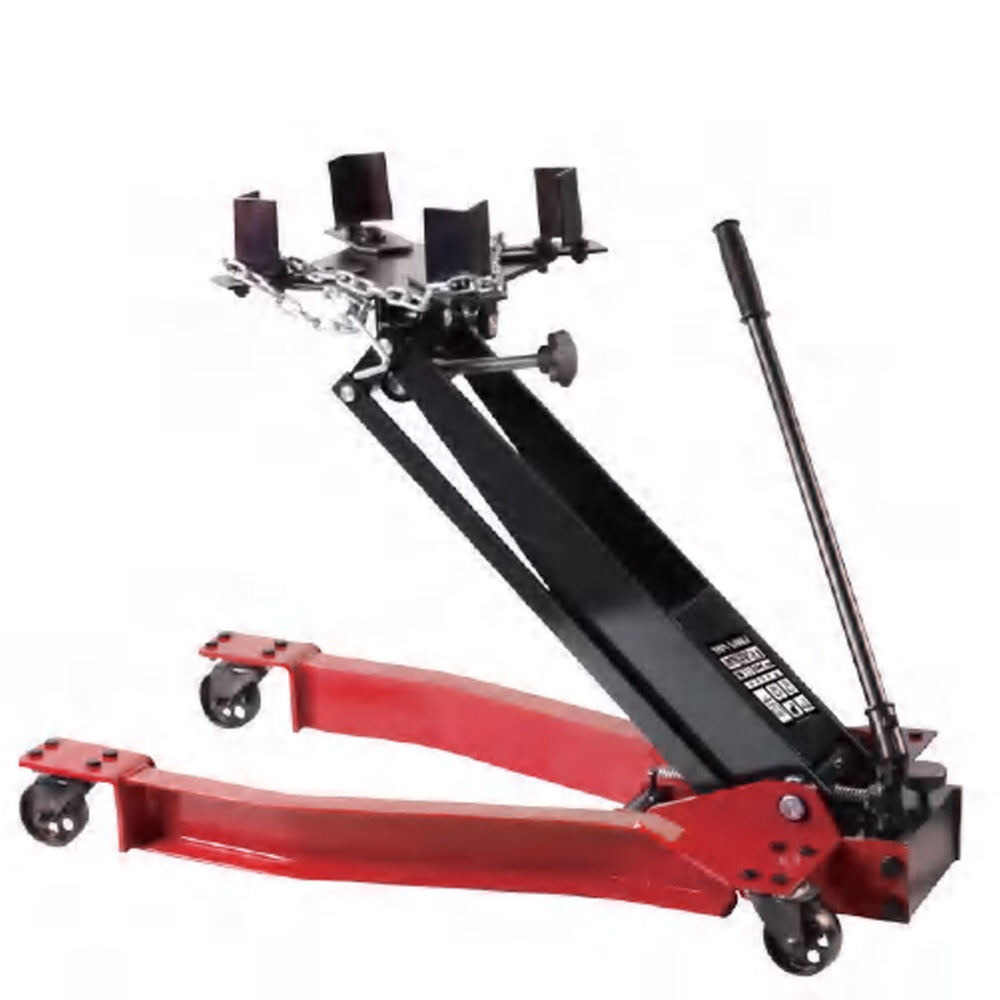

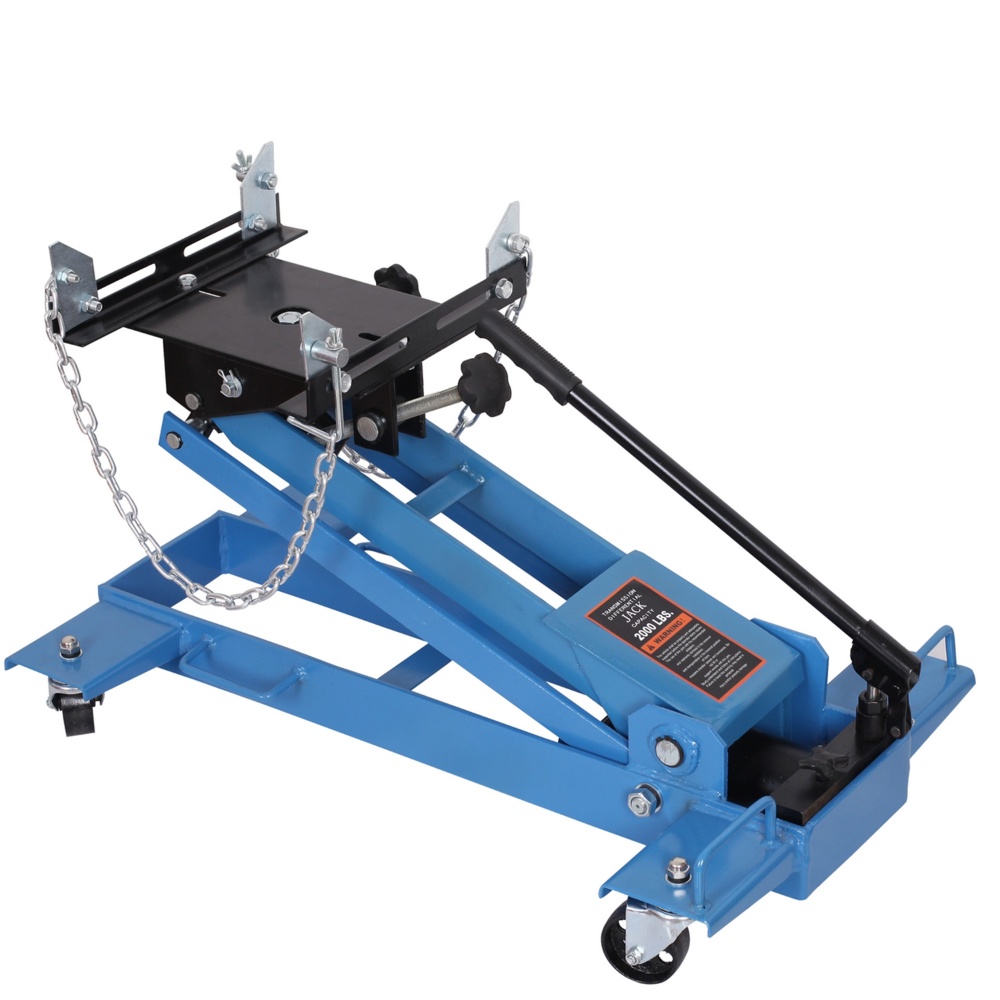

Hydraulic Transmission Floor Jack Foot Pedal with Caster Wheel Safety Chain is designed for heavy-duty use, load capacity available from 0.5 to 3 tons. It features four swivel casters for easy maneuverability, allowing you to move the jack smoothly in the garage or workshop. The heavy-duty safety chain ensures secure lifting during operation. This Low-Profile Transmission Jack is perfect for working on transmissions and other automotive tasks, providing reliable performance and making it an essential tool for any professional workshop.
Item No. | Capacity | Min.H/Max.H | NW/GW | Measurement |
11510A | 0.5T | 175/550mm | 36.5/42.5kg | 82*45*26cm |
11510B | 0.5T | 160/775mm | 51.5/54kg | 97.5*48.5*21.5cm |
11511A | 1T | 175/670mm | 52.5/59.5kg | 88*54*26cm |
11511B | 1T | 175/880mm | 130/150kg | 115*69.5*40.5cm |
11512A | 1.5T | 185/840mm | 71.5/78.5kg | 97*55*30cm |
11512B | 1.5T | 220/940mm | 133.5/158kg | 115*69.5*40.5cm |
11513 | 2T | 210/950mm | 122/137kg | 116*69*34cm |
11514 | 3T | 120/880mm | 95/105kg | 130*76*22cm |
