The pedal has step brake function, which can mount the tyre accurately and time saving.
The universal switch is 40A with a pure silver touching point, it can bear great load with a long using life.

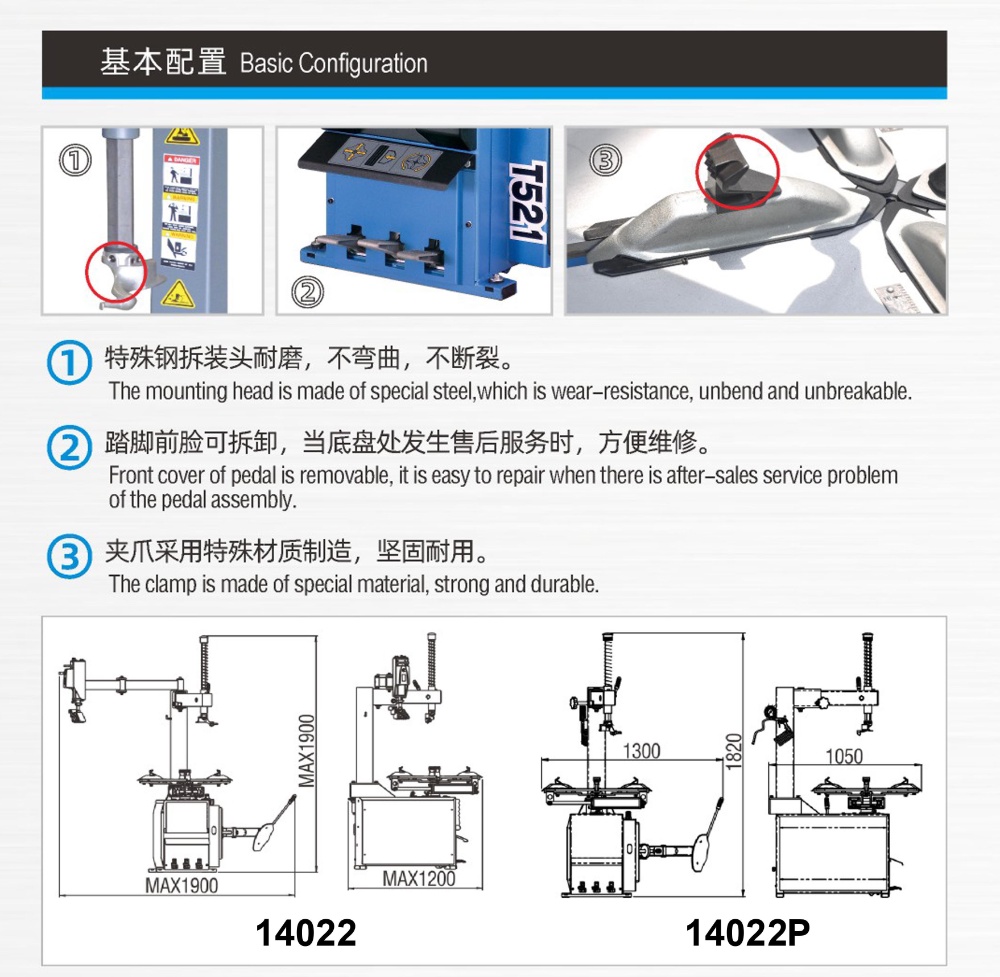

The mounting head is made of special steel, which is wear-esistance, unbend and unbreakable.
The claw, crowbar, demounting head and bead breaking shoe are optional equipped with the protective cover.
This can prevent the rim from being damaged for the operation incorrectly.
The protective sheath of the bead breaker is optional.
Quantity
ltem No.

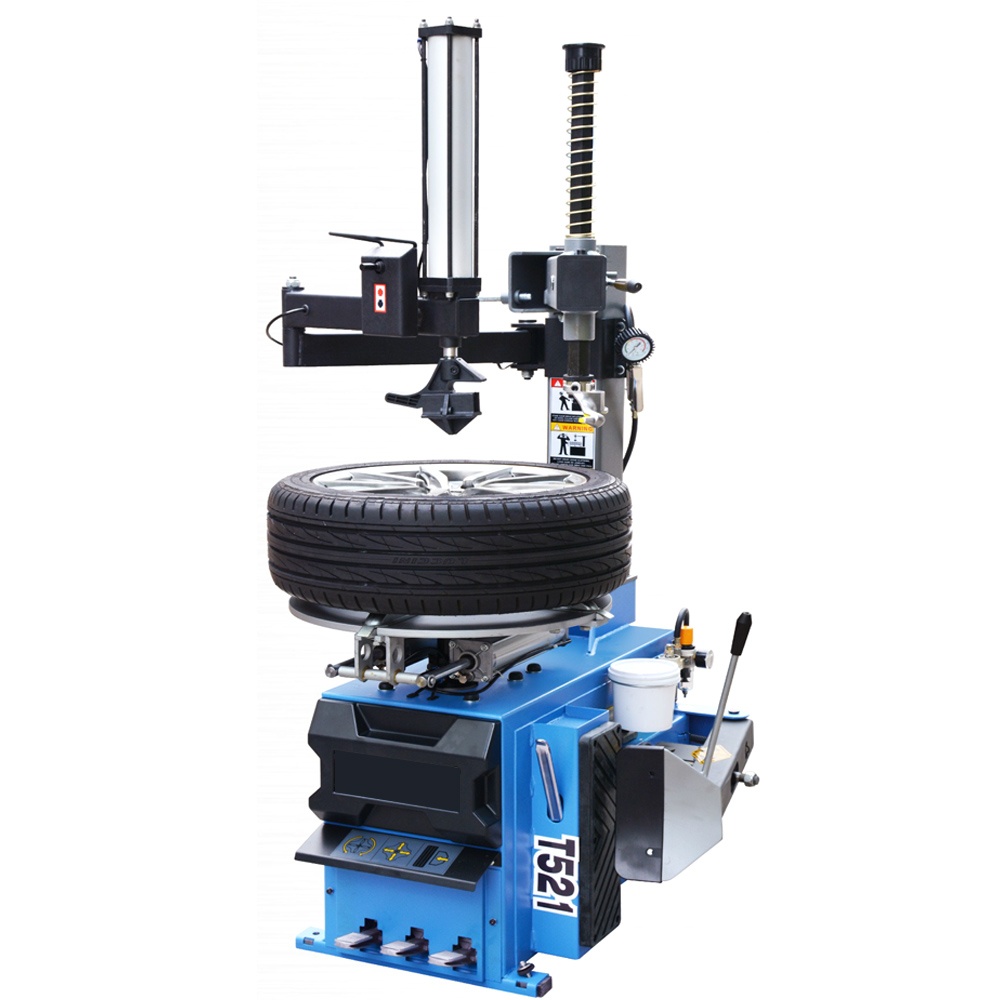

Car Tire Changer W/o Help Arm for 12″ to 21″ Tyres delivers efficient and durable performance with its advanced engineering. The dual-cylinder auxiliary arm system streamlines disassembly and assembly of flat tires, minimizing effort and maximizing speed. Integrated self-centering technology ensures quick, precise positioning for operator convenience. Built for longevity, the corrosion-resistant aluminum alloy main cylinder prevents internal rust and enhances durability.
Item No. | 14022 | 14022P |
Outside Clamping Range | 10”-18” | 10”-18” |
Inside Clamping Range | 12”-21” | 12”-21” |
Max. Wheel Diameter | 960mm | 960mm |
Wheel Width | 3”-12” | 3”-12” |
Air Pressure | 8-10bar | 8-10bar |
Motor Power | 0.75/1.1Kw | 0.75/1.1Kw |
Net Weight | 187kg | 210kg |
Gross Weight | 203kg | 230kg |
Packaging Size | 980x760x895mm | 980x760x895mm 710x620x280mm |
