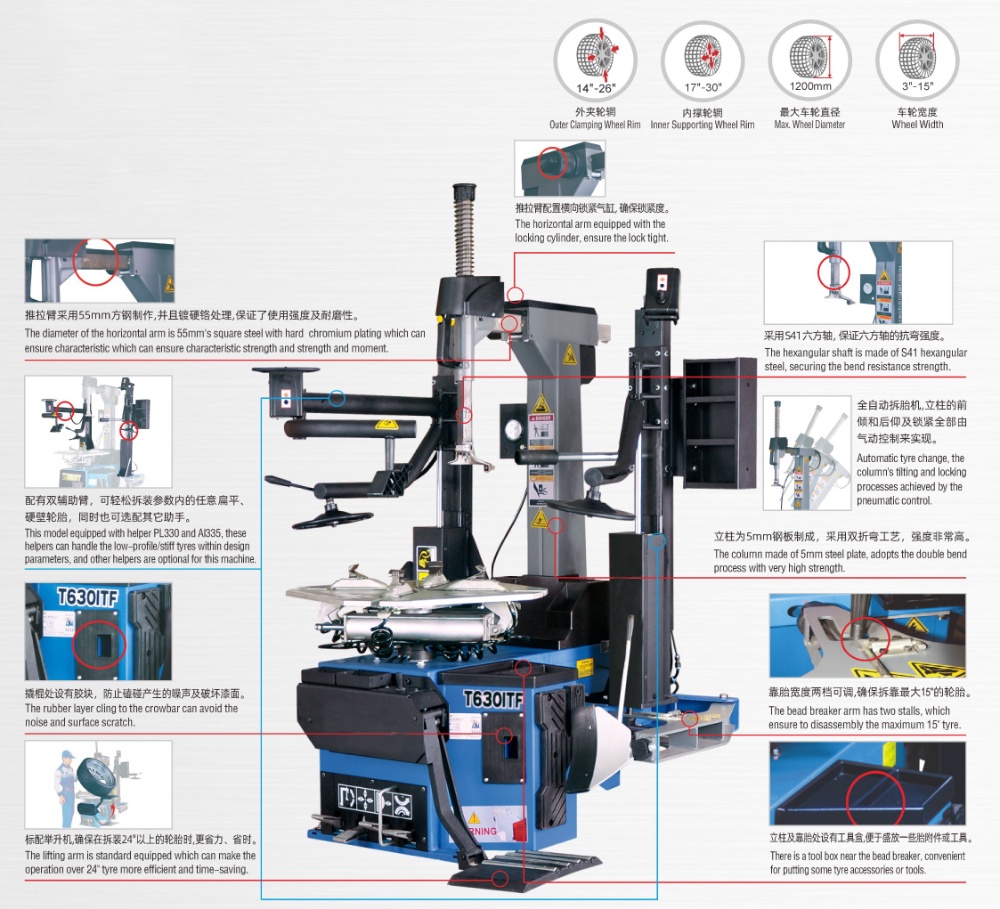

The inner rim clamp as the standard configuration, it can increase the suitable size for 30”tyre.
The pedal has step-move function, making the operation more accurate and time-saving.
The fast inflatable device is standard configuration for this model, it will save half time on the inflation.
The turntable equipped with the wear-resistant spacer and scale.
Quantity
ltem No.

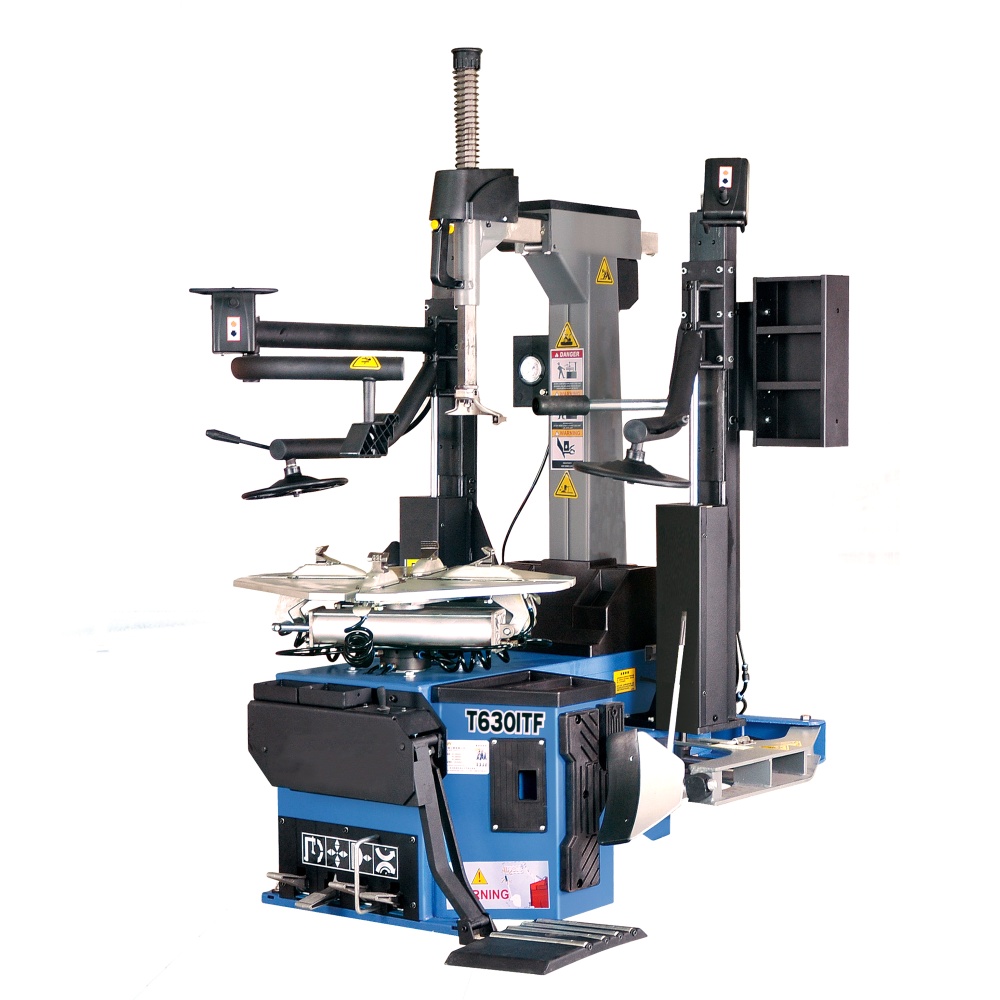

Full- Automatic Car Tire Changer with Double Arms for 17″ to 30″ Tyres is equipped with standard configuration, max inside clamp to 30″, which increase the demounting size.Double-bending techniques, 5mm steel board-made column ensures handling tires in high intensity.The pedal has step function, which can install the tire accurately and time saving.The standard lifting system can save more time and effort when demounting the tire which is above 24 inch.

Item No. | 14003 |
Rim Clamping (external) | 14"-26" |
Rim Clamping (internal) | 17"-30" |

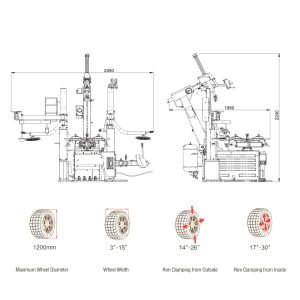

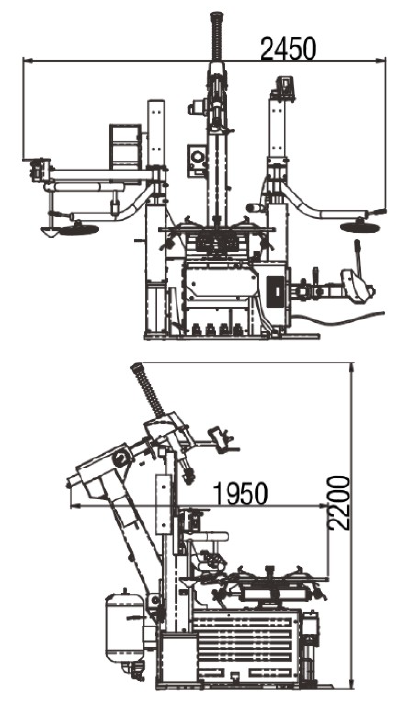

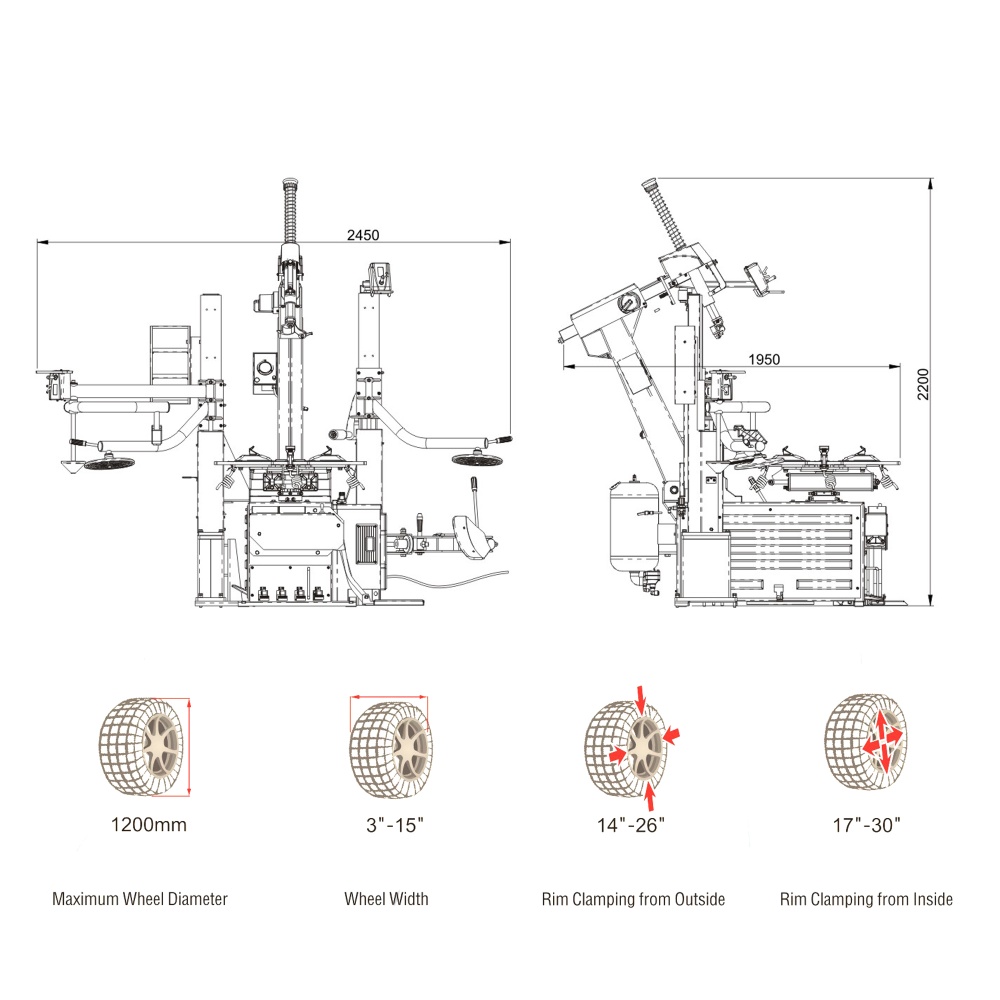

Max. Wheel Diameter | 1200mm |
Wheel Width | 3‘’-15'' |
Working Pressure | 8-10 bar |
Power | 0.75/1.1kW |
Net Weight | 580kg |
Gross Weight | 635kg |
Packaging Size | 1440*1140*1830mm |
