11620~11622
11620~11622
Sturdy & Durable & Great Helper
Fitting garage/shop cranes, engine hoists, and more.
Integrated built-in oil-bypass and overload valve that protects the hydraulic system from extending beyond limits.
The pressure pump is designed to lift with minimal muscle and effort.
The clevis style base allows it to mount directly onto most shop cranes.
Quantity
ltem No.

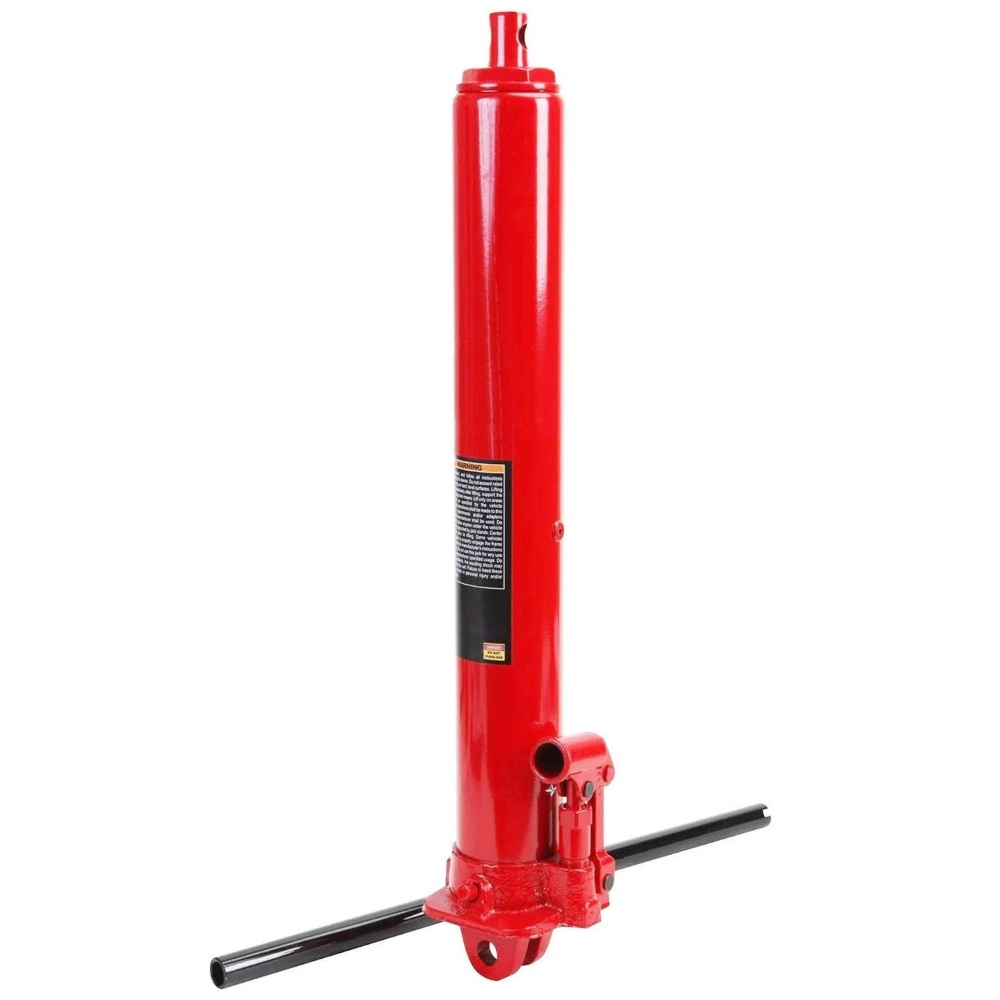

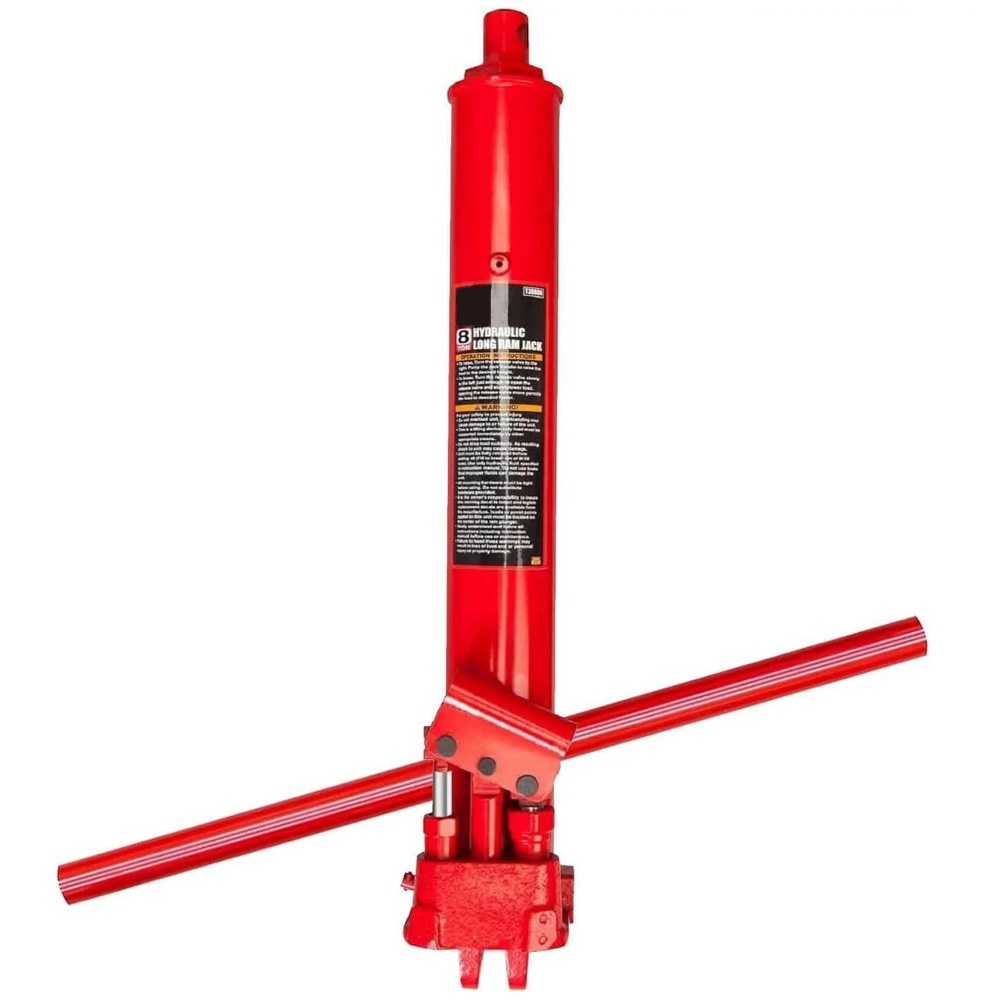

Hydraulic
Long Ram Jack is
constructed from heavy-duty steel for exceptional durability, making it
suitable for both residential and commercial use. Designed to fit garage/shop

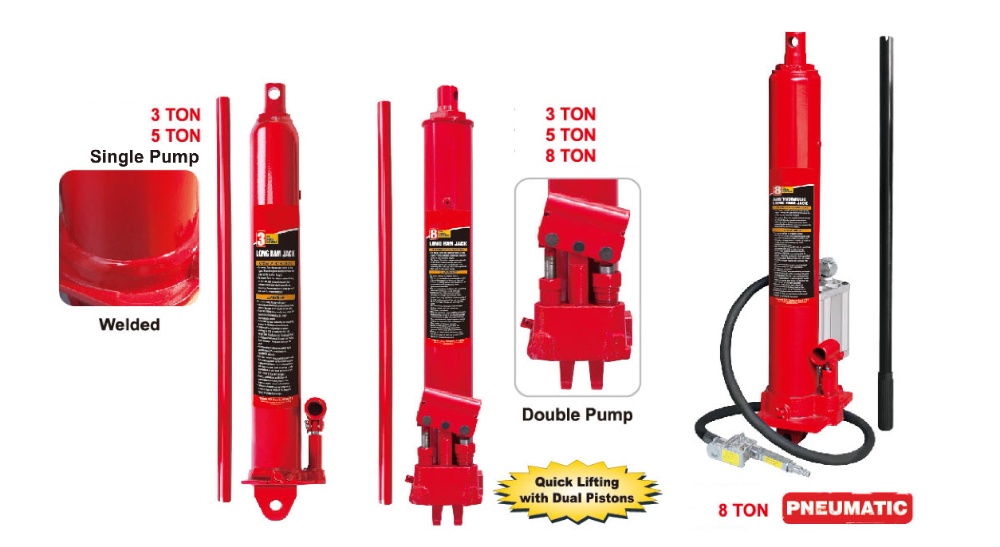

cranes, engine hoists, and other lifting equipment, it features a single or
double piston pump and a clevis base for versatile applications. Available in
3, 5, or 8-ton load capacities, it handles heavy-duty tasks with ease.
Item No. | Type | Capacity | Min.H/Max.H | NW/GW | QTY/CTN | Measurement |
11620-3T | Single Pump | 3T | 595/1045mm | 8/8.5kg | 2 | 67.5*36*15.5cm |
11620-5T | Single Pump | 5T | 595/1045mm | 9.2/11.4kg | 2 | 67.5*36*15.5cm |
11621-3T | Double Pump | 3T | 630/1115mm | 11.4/11.7kg | 2 | 70.5*28*15cm |
11621-5T | Double Pump | 5T | 635/1120mm | 15/15.6kg | 2 | 72*33*16.5cm |
11621-8T | Double Pump | 8T | 635/1120mm | 15/15.6kg | 2 | 72*33*16.5cm |

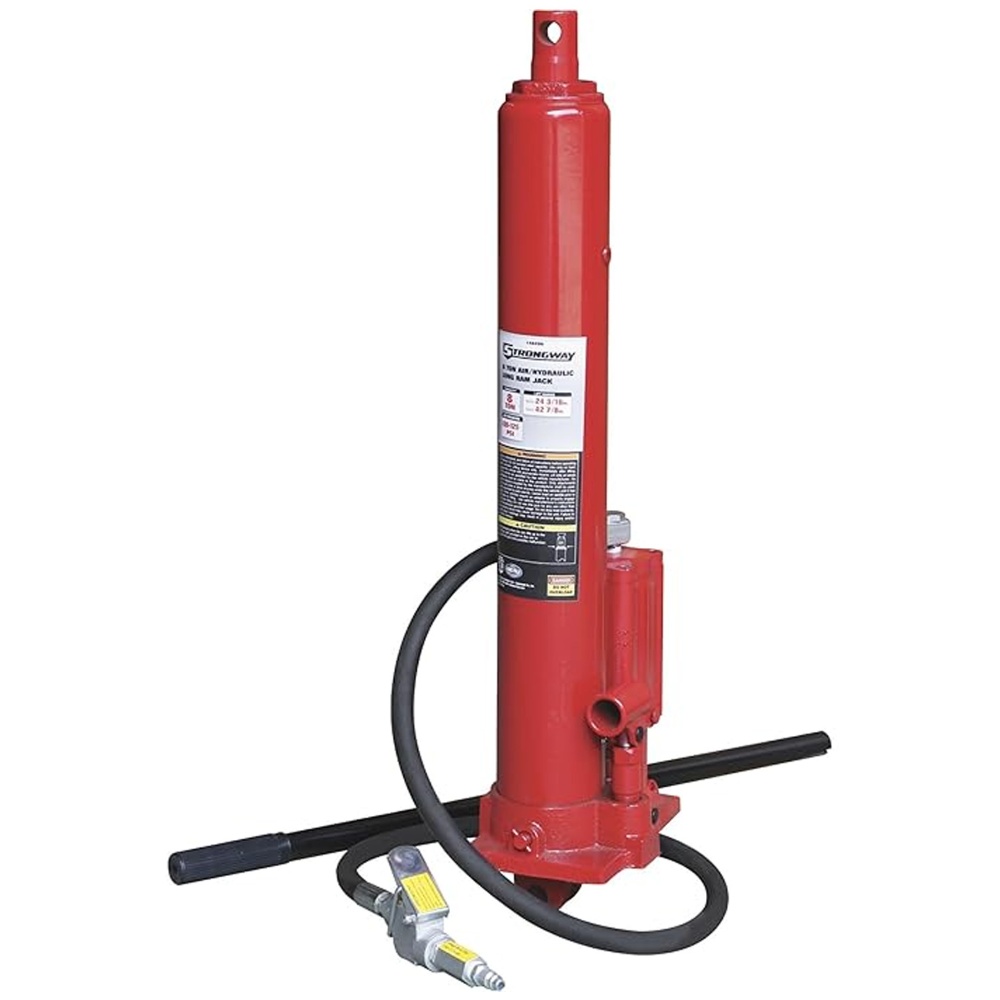

11622 | Air/Hyd. Pump | 8T | 615/1090mm | 17/18kg | 1 | 67*25.5*13cm |
