Stationary/Folding Engine Crane

11570~11573

Crafted from high-strength, heavy-duty steel materials.
Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility.
High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life.
The boom offers the adjustable positions to cater to your specific needs.
Allows for maximum lifting power at a minimum of shop space.
Easy to move an engine from car to work space in seconds.

Quantity

ltem No.

Description

This Stationary/Folding Engine Crane is
suitable for lifting engines and heavy components. It is equipped with four wheels for smooth
and easy maneuvering around the workshop. Its adjustable load arm accommodates
a variety of lifting requirements, providing flexibility for different tasks.
Additionally some models of the Engine Hoist are foldable and can be folded up when not in use to save storage space. This crane combines functionality
and convenience, making it ideal for garages and repair shops.

Features

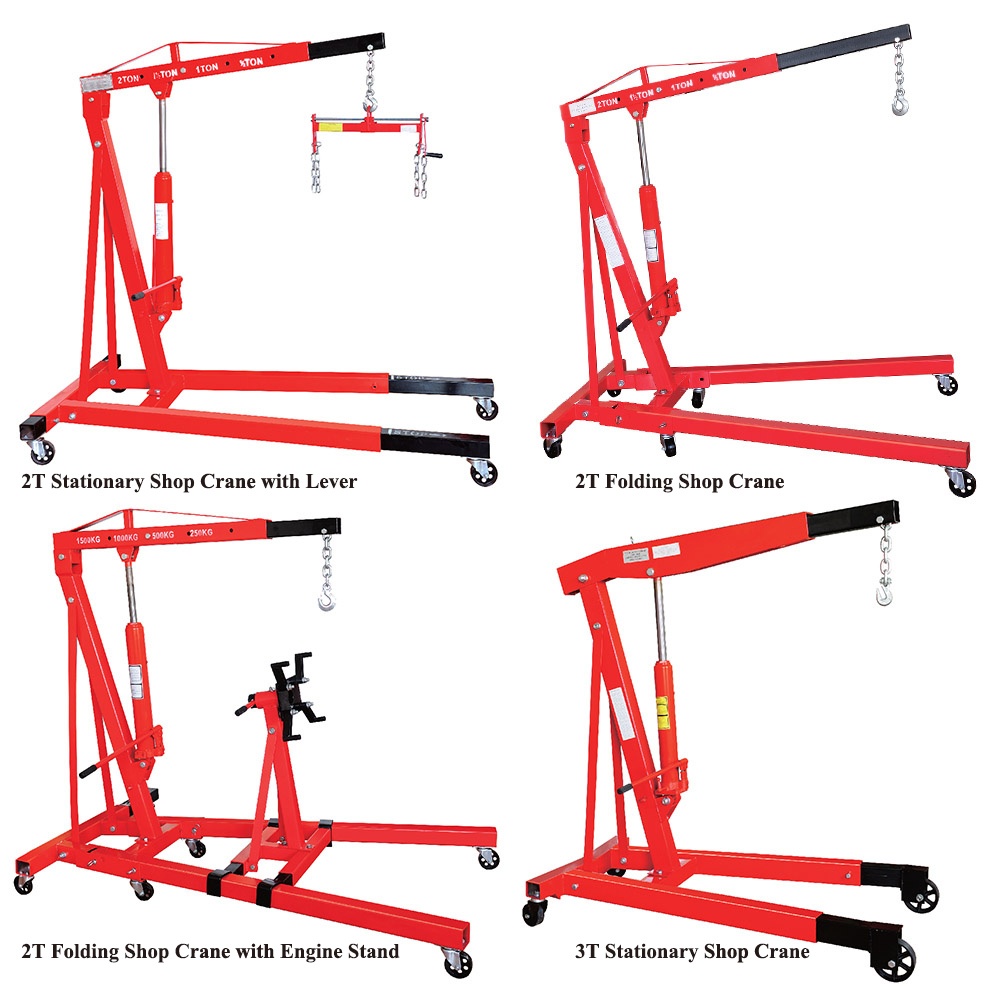

11360 (3)

Item No.	Description	Capacity	Lifting H	NW/GW	Measurement
11570	2T Stationary Shop Crane	2T	0-2350mm	1#22/23kg 2#53/55kg	1#1390x740x90mm 2#1330x325x165mm
11571	2T Folding Shop Crane	2T	0-2350mm	1#18/19kg 2#55/56kg	1#650x580x90mm 2#1440x300x160mm
11572	2T Folding Shop Crane with Engine Stand	Shop Crane 2T Engine Stand 1500lbs	0-2350mm	1#24.5/25kg 2#55/56kg	840x610x170mm 1440x300x160mm
11573	3T Stationary Shop Crane	3T	0-2120mm	1#28/30kg 2#70/72kg 3#17/18kg	1#1340x810x110mm 2#1440x320x210mm 3#720x190x155mm
