16056/16057/16058
16056/16057/16058
Use for lubrication system and grease diffluence set equipment.
For dispensing grease of all types short and long distance at high pressure.
Quantity
ltem No.

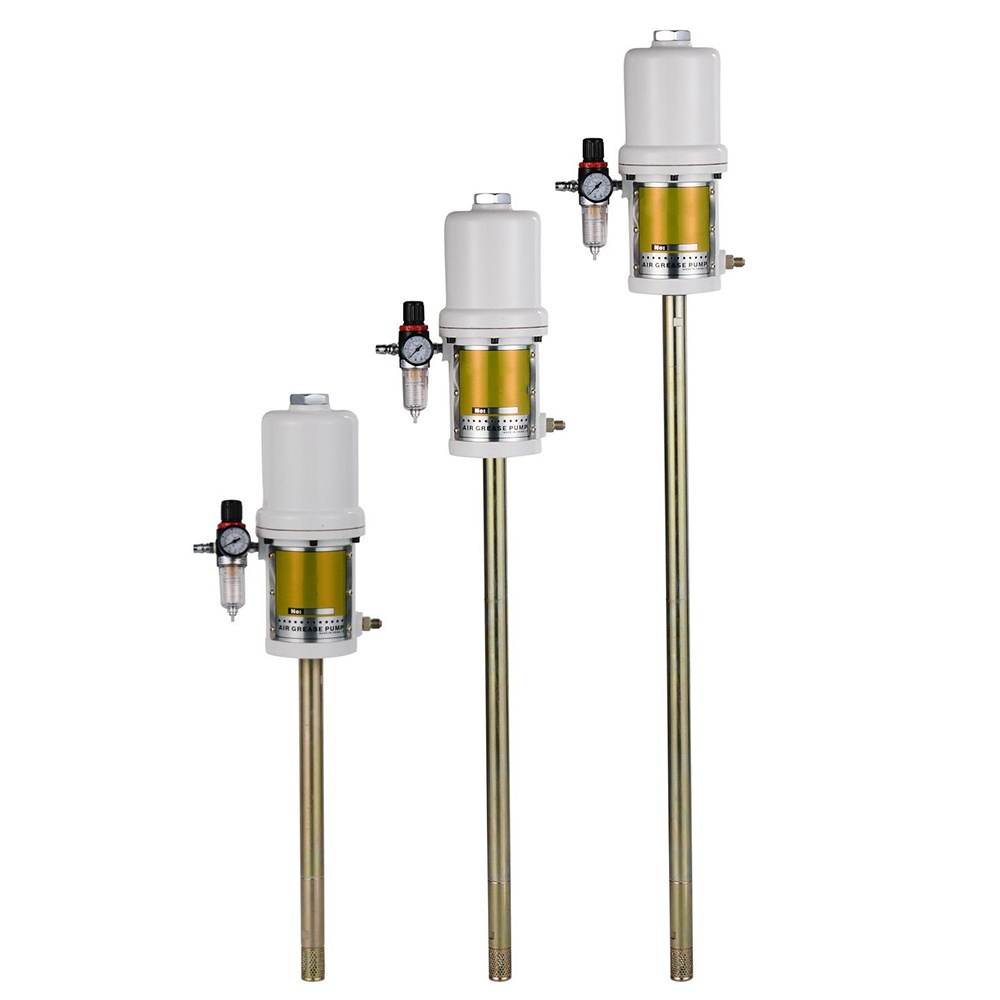

55:1 Air Grease Pump efficiently dispenses all grease types at high pressure for short or long-distance lubrication systems and grease diffluence setups. Powered by a 55:1 air-to-grease ratio, it ensures robust, reliable performance in industrial, automotive, and heavy machinery applications, streamlining grease distribution while maintaining precision under demanding conditions.
Item No. | 16056 | 16057 | 16058 |
Drum Application | 20-30kg | 50-60kg | 180-220kg |
Working Pressure | 5-8bar | 5-8bar | 5-8bar |
Max. Fluid Pressure | 450bar | 450bar | 450bar |
Cylinder Dia. | 108mm | 108mm | 108mm |
Max. Free Flow Rate | 1300g/min | 1300g/min | 1300g/min |
Suction tube length | 440mm/17.5’’ | 740mm/29’’ | 940mm/37’’ |
Input/output | 1/4” | 1/4” | 1/4” |
N.W | 5kg | .5kg | Kg |
Measurement | 195x185x815mm | 195x185x1135mm | 195x185x1335mm |
