Wholesale 12V/24V Battery Charger Factory

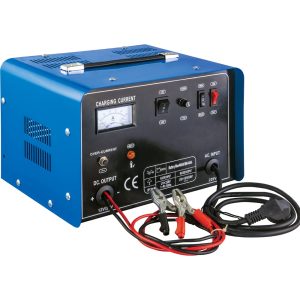

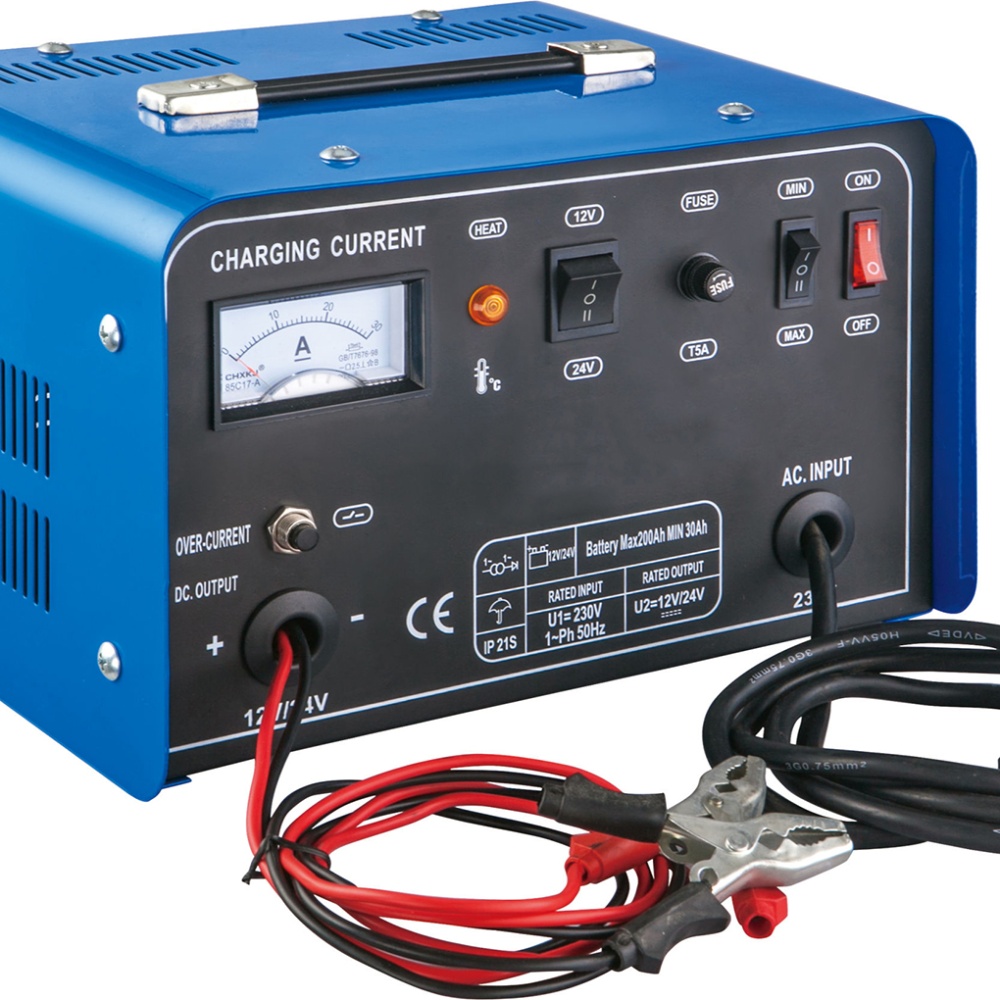

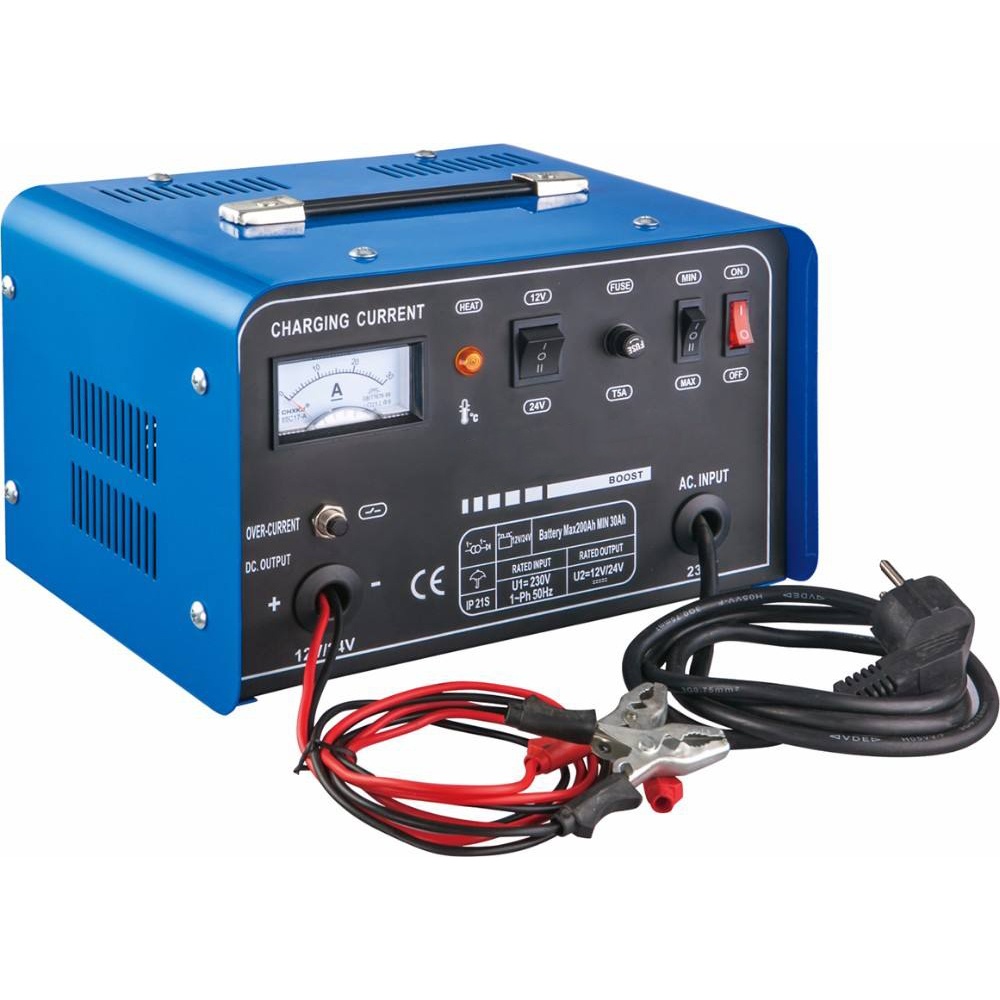

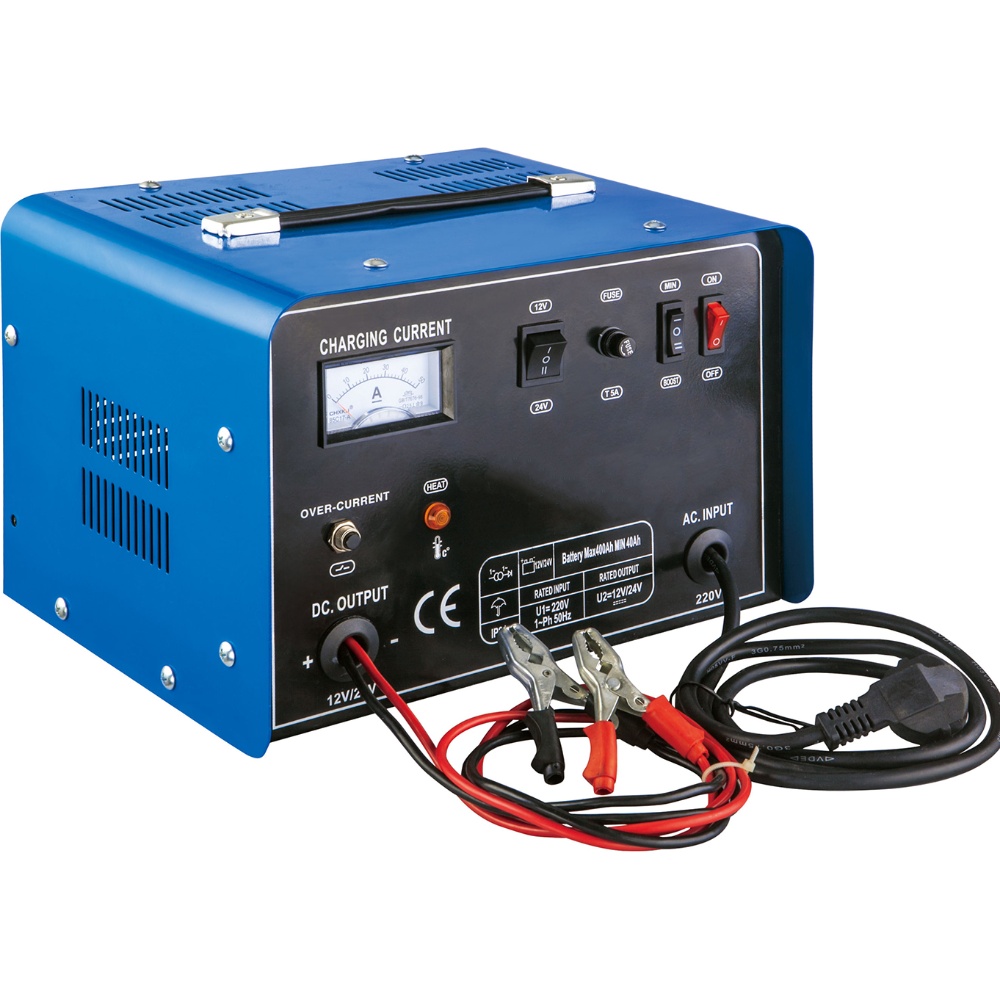

12V/24V Battery Charger

13471-10A/13471-15A/13471-20A/13471-25A/13471-30A/13471-40A/13471-50A

Single-phase,portable battery chargers for charging lead-acid batteries with 12/24v voltage.
Equipped with ammeter.
Protected against overload and polarity reversal.
Equipped with selector for normal or quick charging.

Quantity

ltem No.

Description

12V/24V Battery Charger is used to charge lead-acid battery in small cars and trucks, worked by transformer to lower the voltage. It has very simple and reliable circuit,lowers the machine faulty rate to min. Battery charger also has fast and slow charging switch, can fast charge battery and also protect from overcharging. When battery is discharging, the over current protector can protect machine from being damaged by big current.

Features

Item	13471-10A	13471-15A	13471-20A	13471-25A	13471-30A	13471-40A	13471-50A
Power voltage (V)	220V	220V	220V	220V	220V	220V	220V
Frequency(HZ)	50	50	50	50	50	50	50
Rated capacity(V)	160/290	170/300	220/320	240/360	260/480	360/720	480/960
Charging voltage(V)	12/24	12/24	12/24	12/24	12/24	12/24	12/24
Rated current (A)	10	15	20	25	30	40	50
Suitable battery (Ah)	12-100	18-120	20-125	25-150	30-200	35-300	40-400
Protection class	IP21S	IP21S	IP21S	IP21S	IP21S	IP21S	IP21S
Insulation class	H	H	H	H	H	H	H
Dimension (mm)	270220210	270220210	270220210	290255220	290255220	315280240	315280240
Weight (kg)	4.3	4.8	5.3	5.6	7.1	8.3	10.4
