It's a mobile hydraulic crick lift, with a column structure, built and manufactured to allow the operator to work on wheels or under - doors at men's height.
The raise and crescent movement are obtained using a sleigh fixed to a chain connected to an hydraulic cylinder.
Hydraulic pneumatic pump with hand remote control reduced dimensions and a remarkable ease of handling. obtained thanks to wheels allowing an easy displacement are its main features.
It has been projected for a sure use thanks to an easy and efficient manual block - the safety pin.
The manual safety pin permits the column carriage to be blocked during the working operation.
Quantity
ltem No.

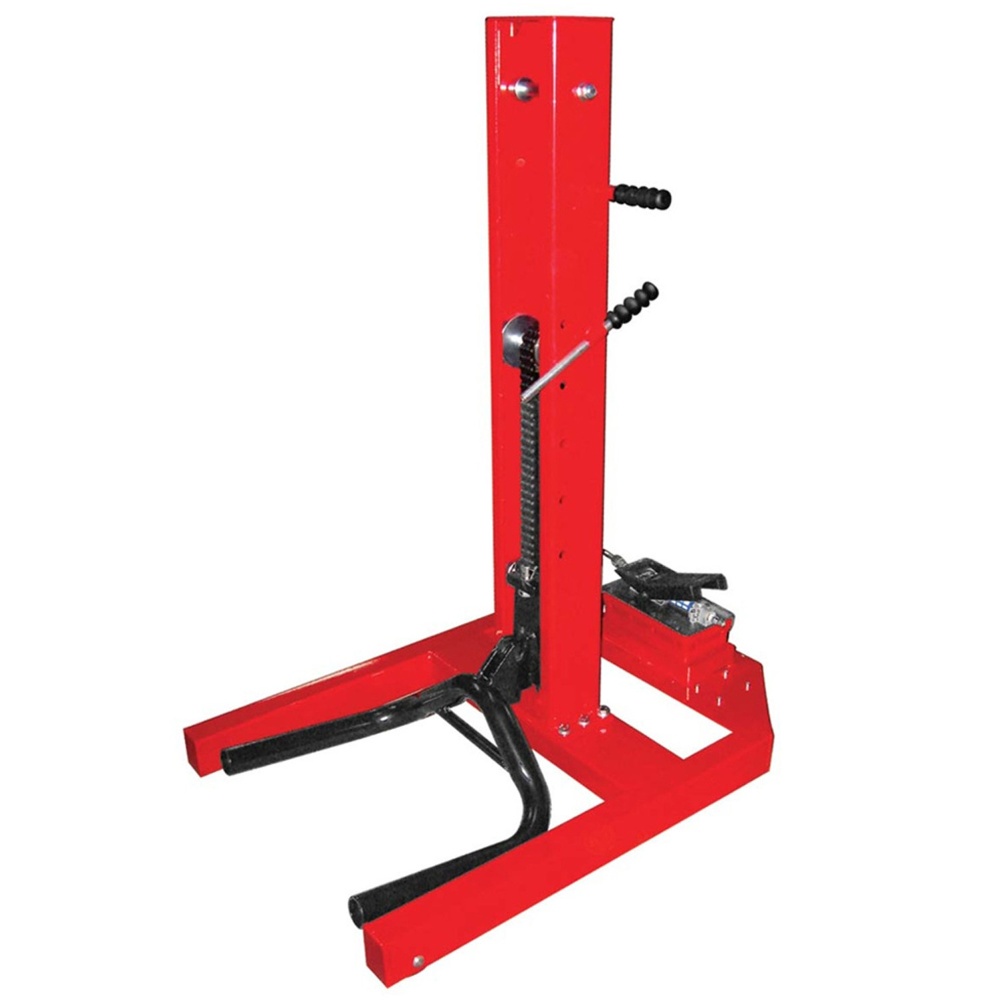

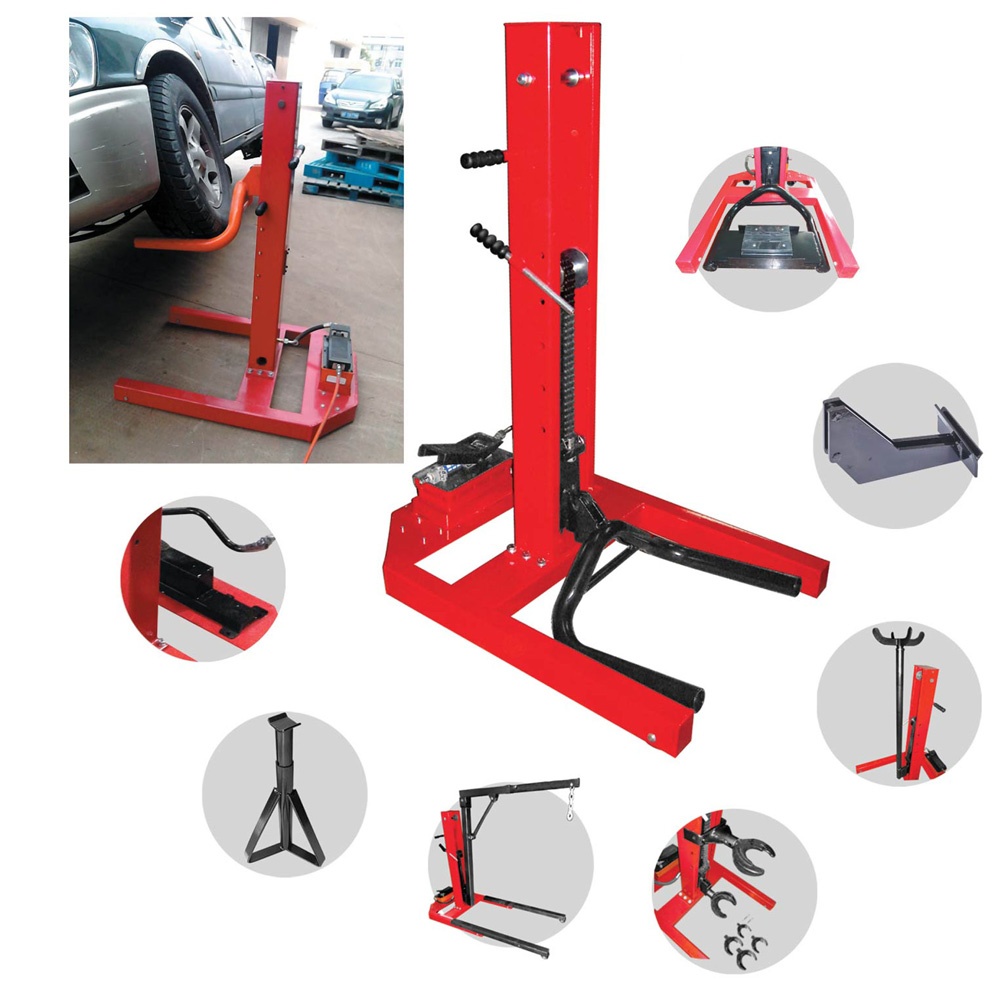

3 Ton Car Lift Mobile Side Lift is a
versatile and efficient lifting solution that is perfect for a variety of
vehicle and equipment maintenance tasks. Powered by a pneumatic hydraulic pump,
this single
post liftcan be easily controlled to accurately raise or lower vehicles. Its manual
safety pin and can provide additional protection to ensure a safe operation.
The lift’s space-saving design allows it to be used either as a stand-alone
unit or in combinations of 2 or 4 units for larger vehicles. With a maximum
lifting height of 750 mm, this Autolift allows
the operator to lift vehicles from the side, front or rear, providing the
perfect working position for any task. This Creek lift combines safety,
versatility and ease of use, making it ideal for automotive workshops.
Specification | |
Lifting capacity | 3000 kg |
Lifting height | 750mm |
Pump Pressure | 350bar |
N.W. | 105kg |
G.W. | 115kg |
Overall Dimension | 71x100x130cm |
Package Size | 122x74x36cm |
