11650~11654
11650~11654
Constructed with heavy-duty steel, powder coated finish for rust resistance.
Mounting head features (4) adjustable arms and 360-degree rotation, allowing for easy access to any part of the engine.
Securely holds most foreign and domestic engine blocks
Equipped with the 360-degree swivel casters for smooth maneuverability.
Quantity
ltem No.

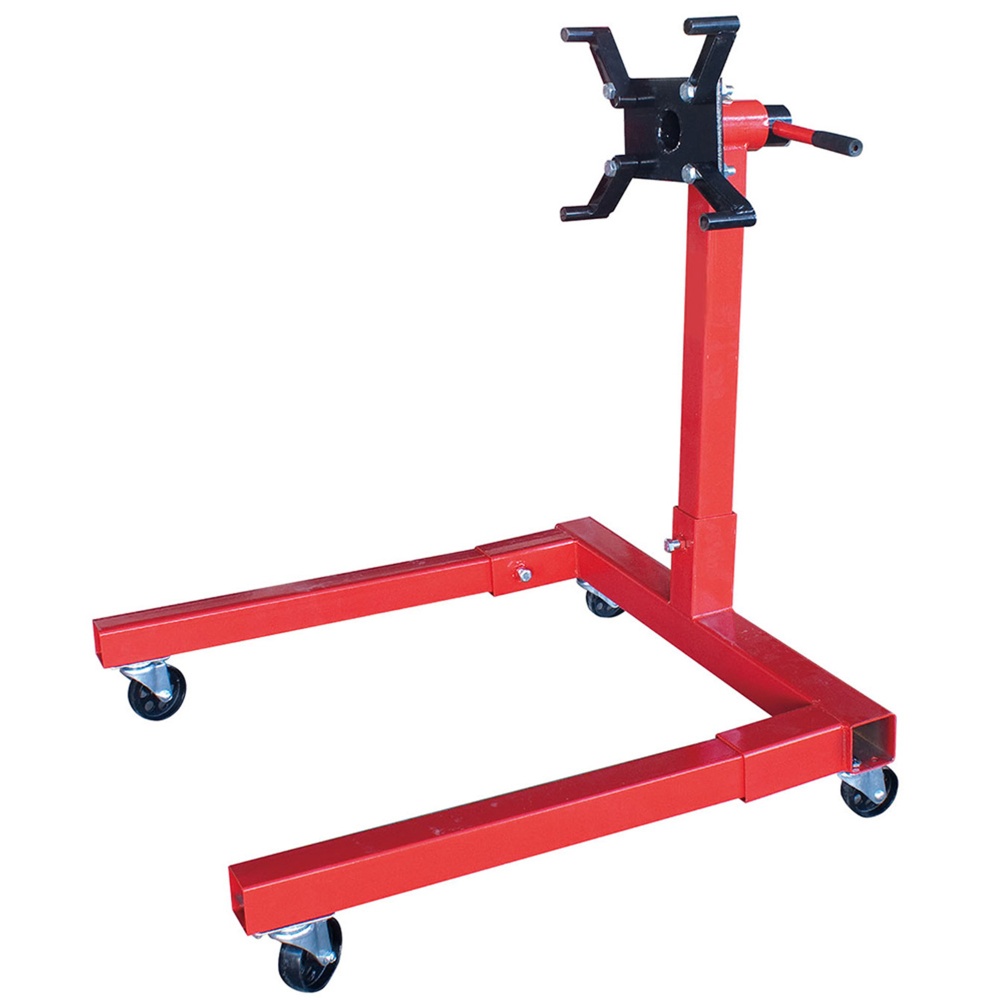

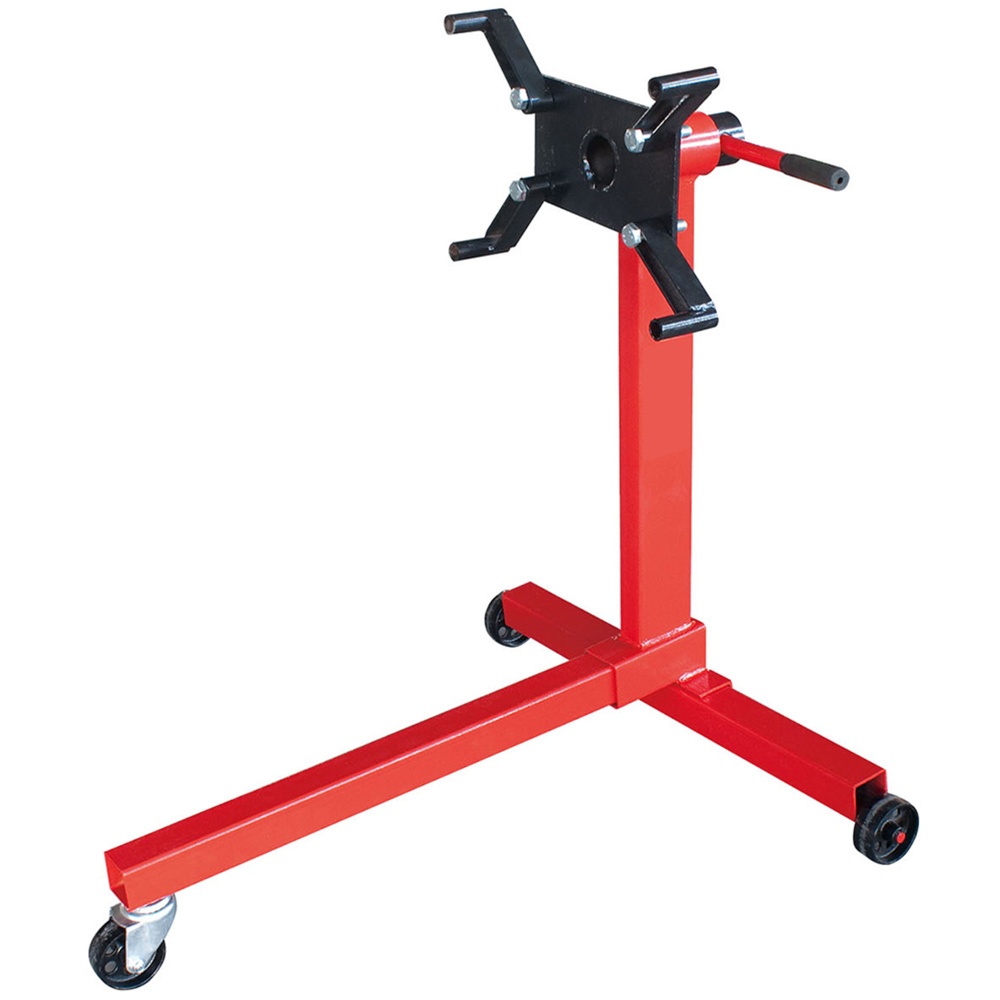

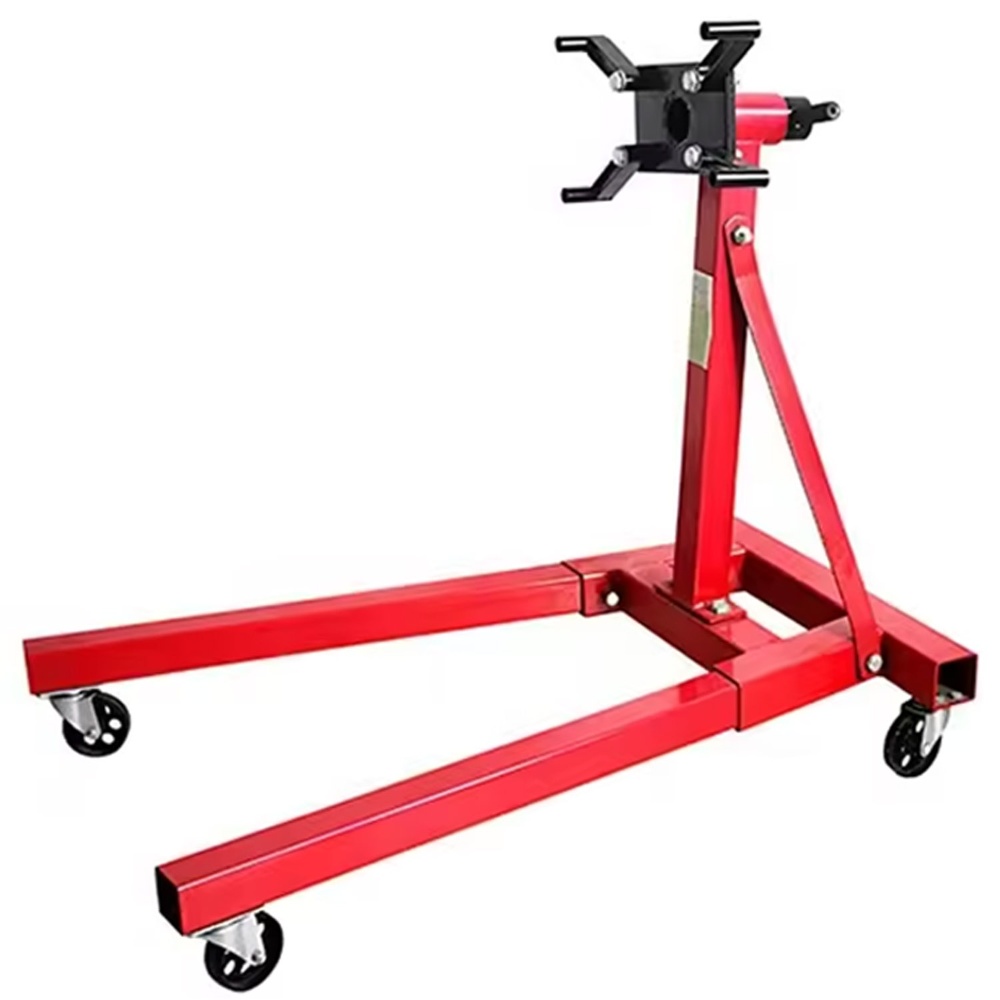

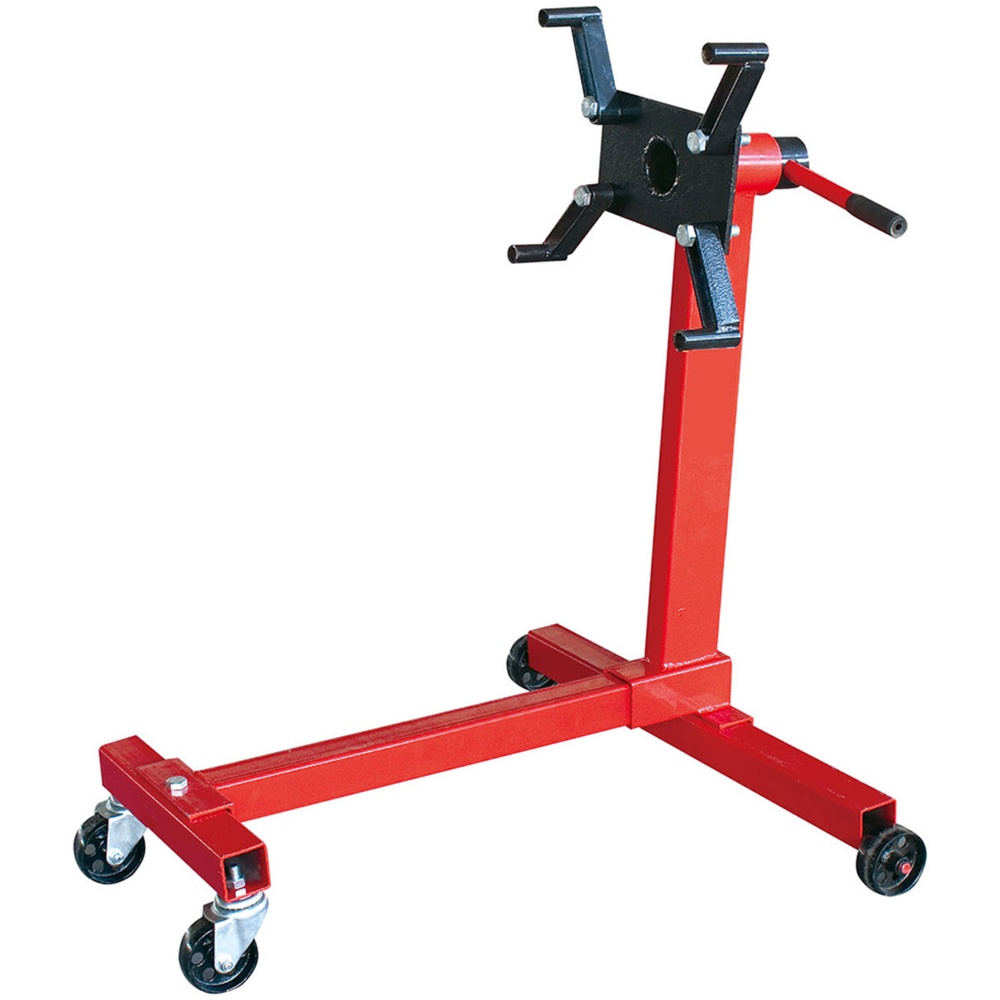

Geared Rotating Engine Stand is a
durable and versatile autotool designed for engine maintenance and repair. It
is constructed from heavy-duty steel to ensure reliable performance and
stability. The Stand’s load capacity ranges from 750 to 2,000 pounds, allowing
you to choose from a variety of engine weights. It features swivel casters for
smooth operation, and the engine stand is equipped with four adjustable arms
and a 360-degree swivel locking head for easy access to the engine from

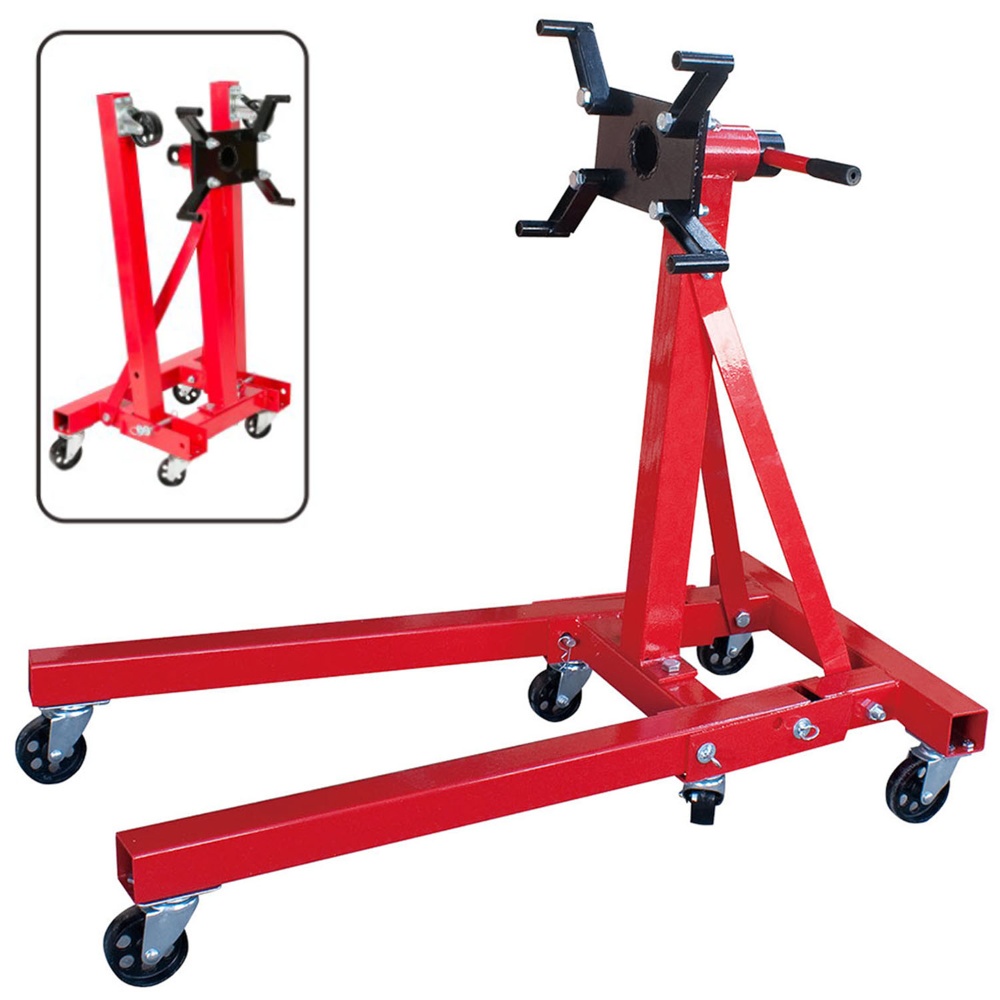

different angles. Some types can be folded for easy storage, making them ideal
for the workshop.

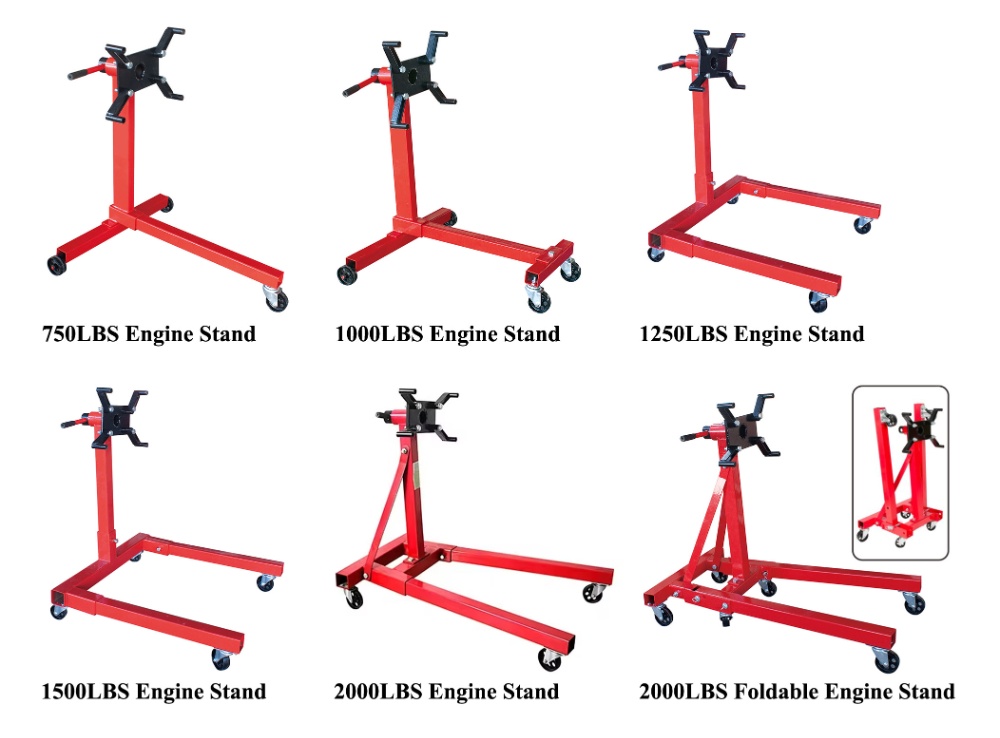

Item No. | Capacity | Operating H | NW/GW | Measurement |
11650 | 750lbs | 730mm | 16/17kg | 850x185x195mm |
11651 | 1000lbs | 730mm | 18/19kg | 850x185x195mm |
11652 | 1250lbs | 850mm | 26/27kg | 790x275x210mm |
11653 | 1500lbs | 870mm | 28/29kg | 900x250x250mm |
11654 | 2000lbs | 840mm | 38/40kg | 910x410x170mm |
