ET-0577-160#/ET-0577-200#/ET-0577-250#
Inquiry Basket
Diagnostic Tester & Battery Tools

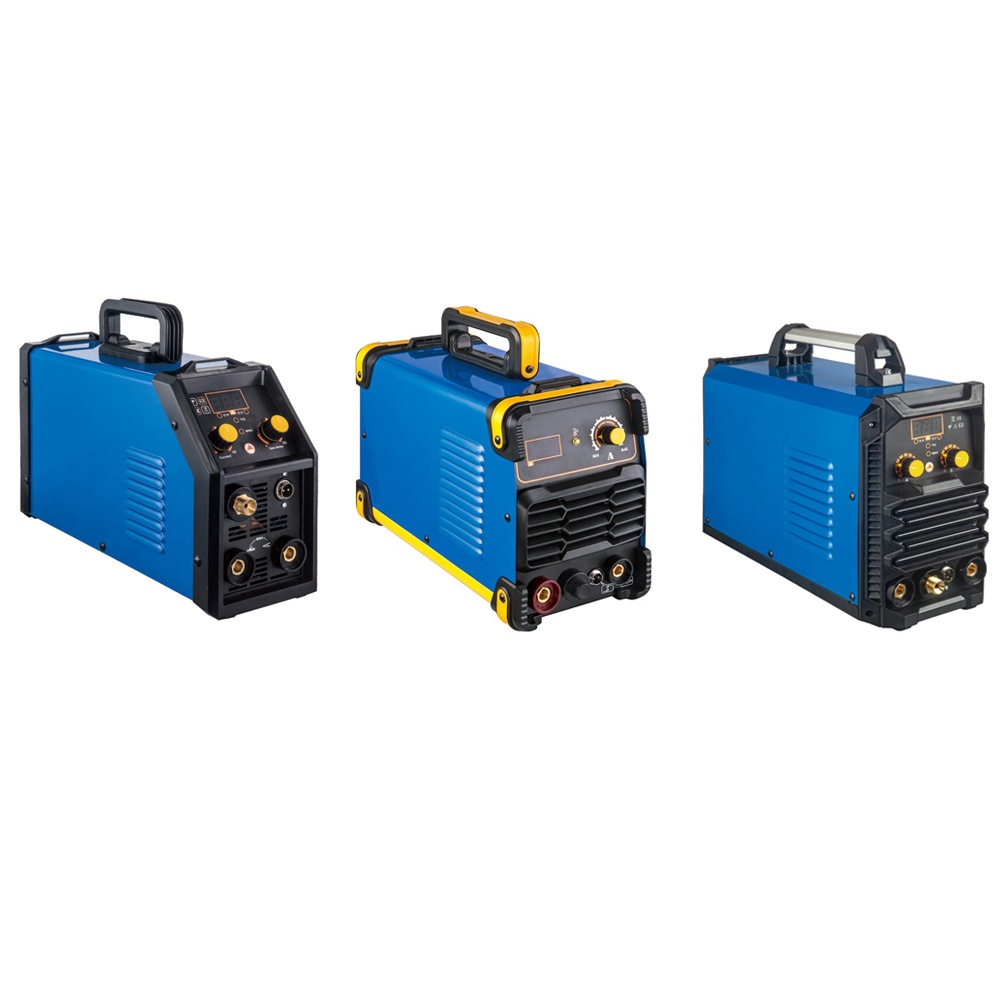

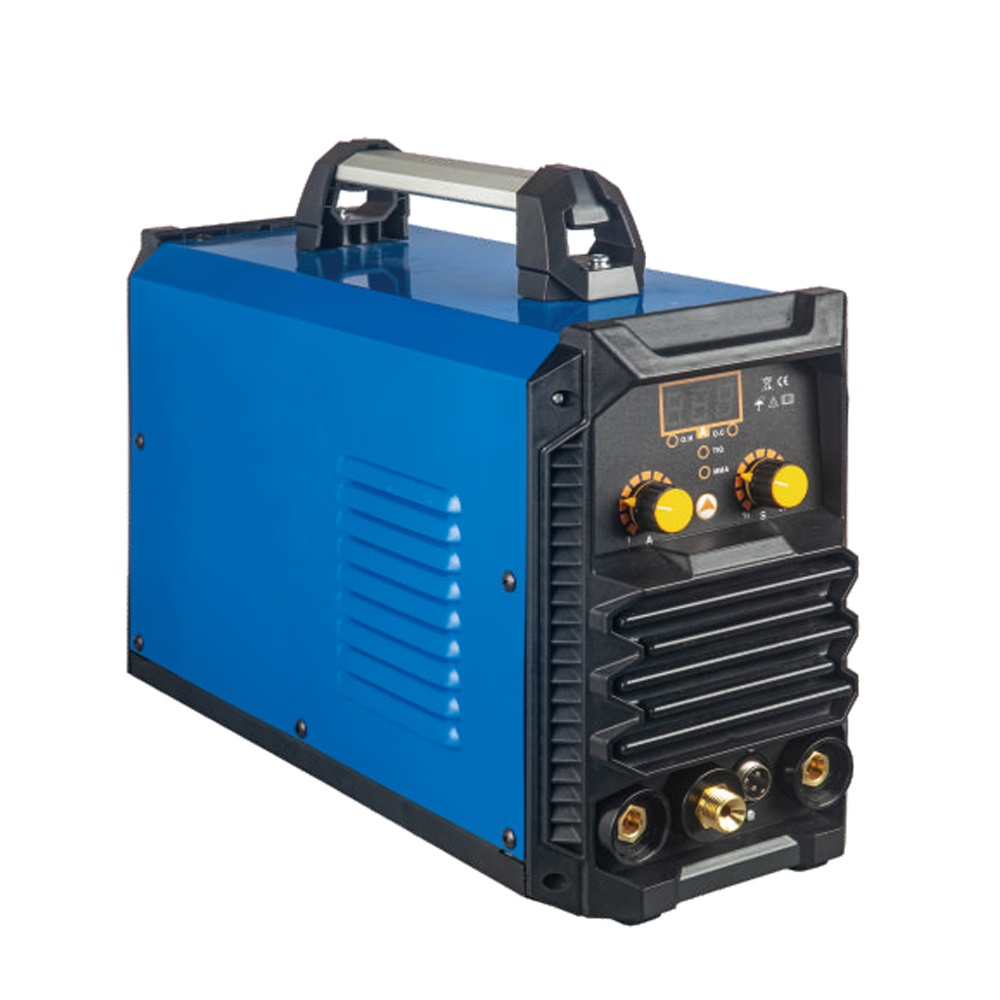

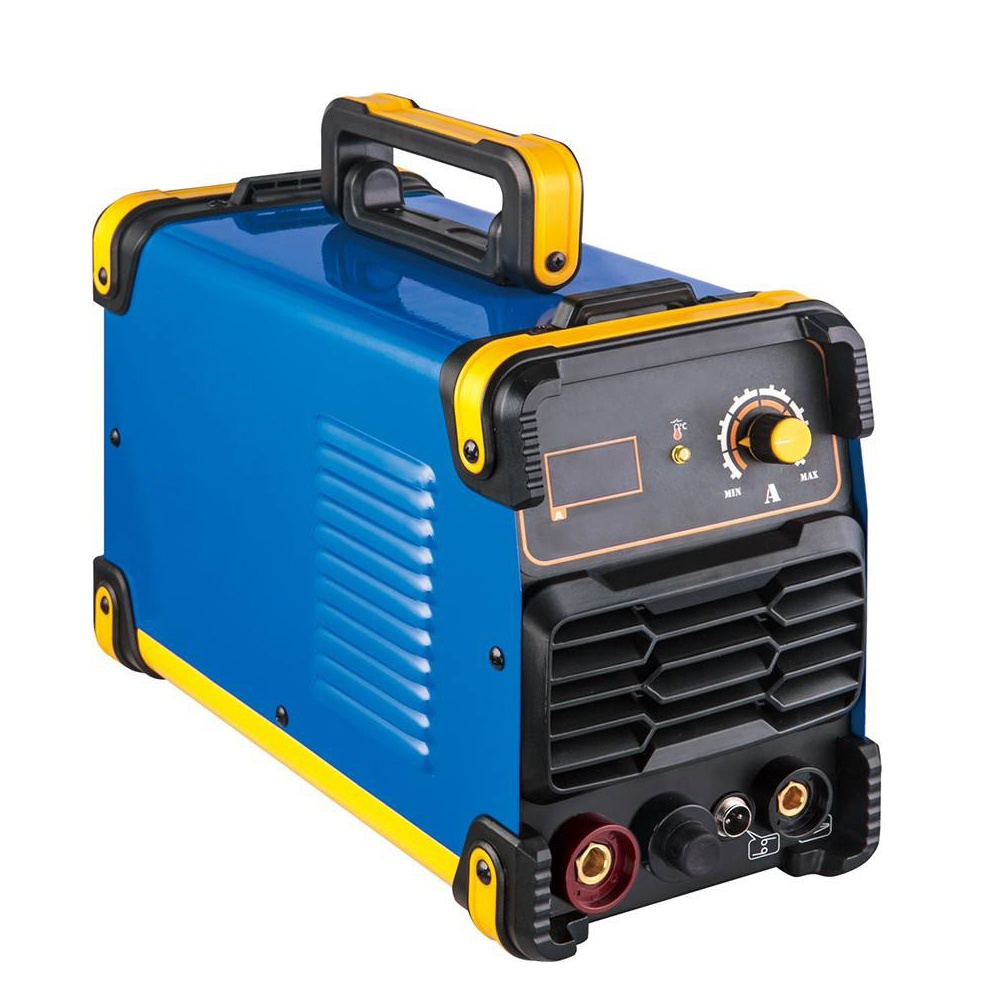

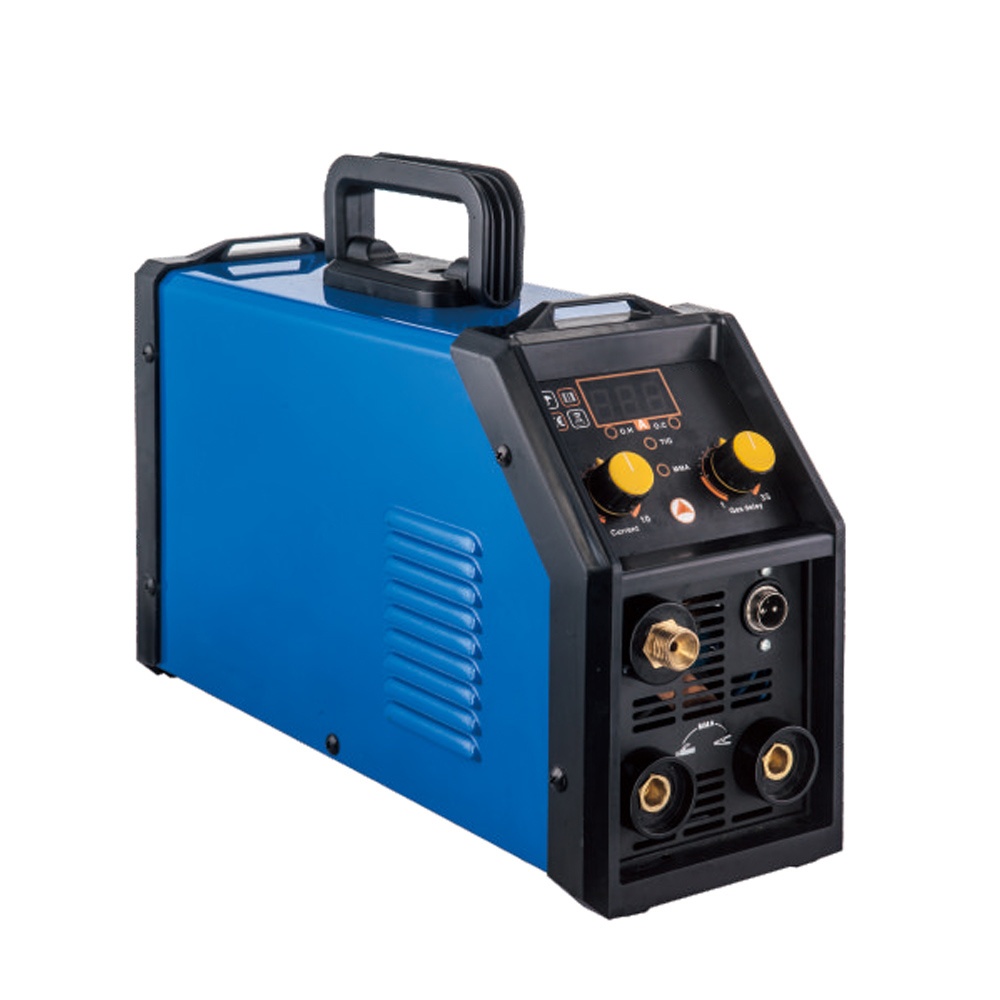

TIG DC Inverter Welding Machine
·Adopt (MOSFET) inverter technology,suit for TIG welding.
·Compact,portable,highly effective and low consumption,energy saving.
·Anti-stick,thermostatic control,fan cooled,carrying strap and handle.
·Hot starts,arc force,overload protection.
·Extremely flexible use for welding materials such as:Steel,iron,titanium,copper,nickel and alloys.
Quantity
ltem No.
Description
|
Model No. |
ET-0577-160# |
ET-0577-200# |
ET-0577-250# |
|
Power Voltage(V) |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
|
Rated Input Capacity(V) |
14.8 |
16.4 |
18 |
|
Rated Input Current(A) |
13.8 |
20.4 |
28 |
|
Power Factor(COSΦ) |
0.73 |
0.73 |
0.73 |
|
Output Current Range(A) |
10-120 |
10-160 |
10-200 |
|
Rated Output Current(A) |
120 |
160 |
200 |
|
Dimension(mm) |
472*242*332 |
472*242*332 |
472*242*332 |
|
Weight(kg) |
8.26 |
9.64 |
9.66 |
