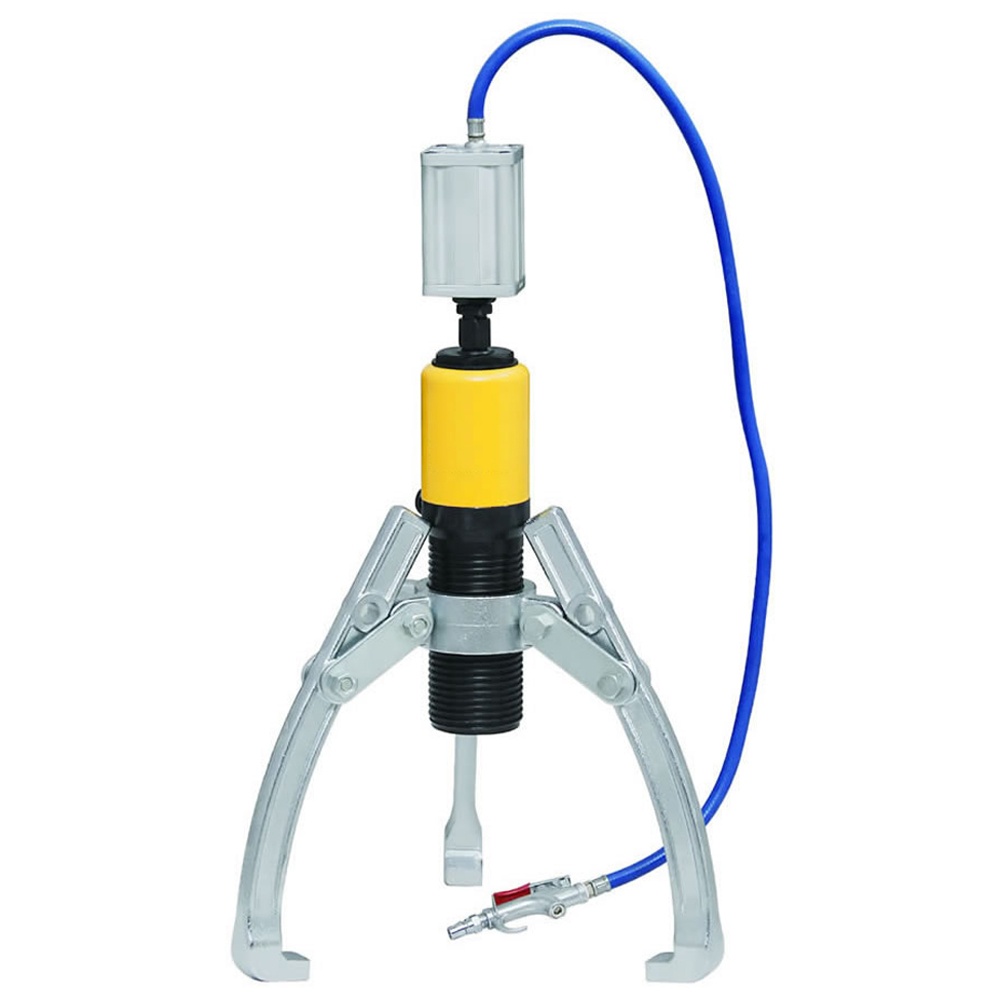

Air Hydraulic Gear Puller

11902

  • Air Hydraulic Pullers are used where air compressor is the preferred source of power, featuring time- and labor-saving operation, and increased productivity.

  • Use with 2 or 3 jaws.

  • High quality, forged steel jaws and crosshead provide superior reliability and service.

  • Air hydraulic control allows fast, efficient and safe pulling.

  • High force hydraulic system for effortless pulling of large components.

  • More efficient pulling, as one man can do the job where manual pullers offer require two operators.

  • Spring loaded live centering cone.

Quantity

ltem No.

Description

Our Air Hydraulic Gear Pullers are designed
to efficiently handle the removal of gears, bearings, pulleys, and other
press-fitted components. Suitable
for use where an air compressor is the power source, these pneumatic-hydraulic
pullers
reduce time and labor for operation and increase productivity. As a
reliable hydraulic bearing puller solution, these tools deliver the precision and strength required for
both automotive and industrial tasks. Whether extracting a tightly fitted bearing
application or tackling a stubborn pulley, these pullers offer powerful
hydraulic force to ensure smooth and damage-free removal.

Features

Capacity

Max. Spread

Max. Stroke

NW/GW

Measurement

5t

200mm

50mm

7.3kg

600x150x170mm

10t

250mm

50mm

10.9kg

600x150x170mm

20t

350mm

70mm

19.2kg

570x200x180mm

30t

400mm

70mm

25.5kg

620x200x180mm

50t

500mm

60mm

44.2kg

670x250x220mm
