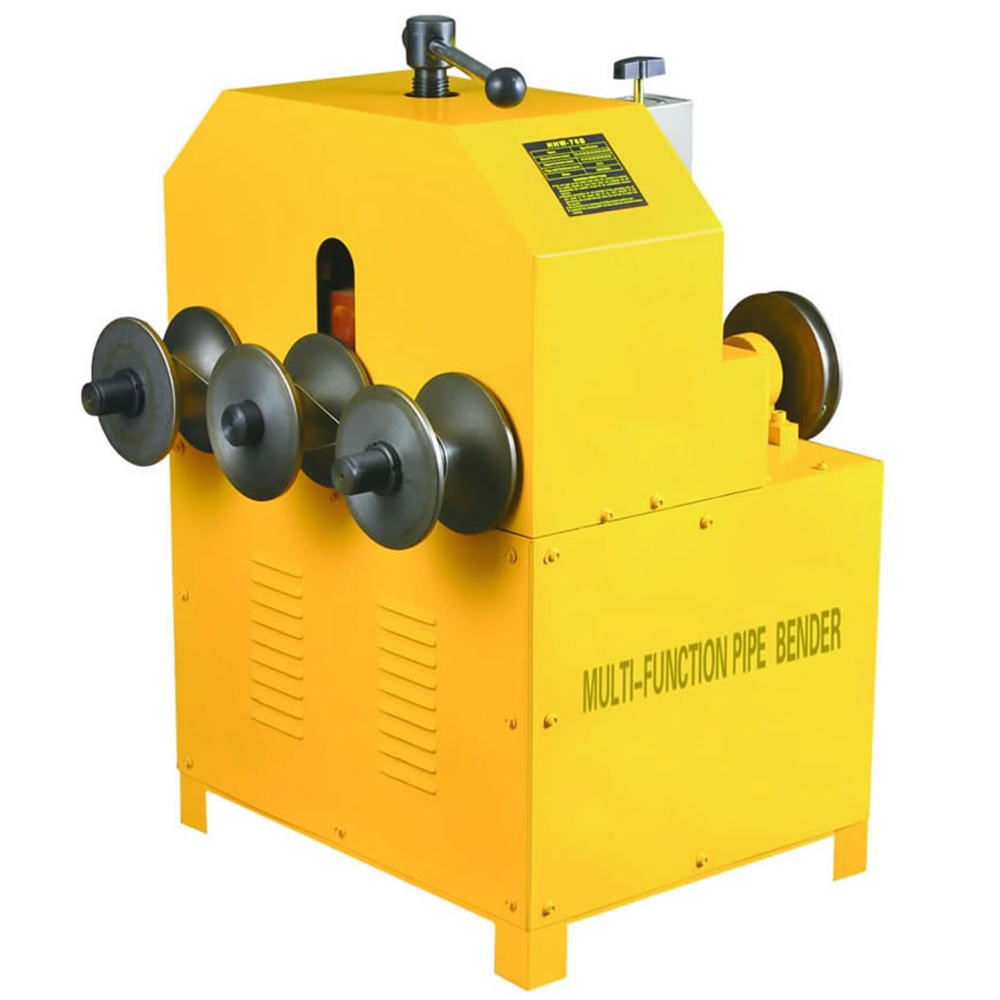

Tube Rolling Machine

11831

  • Main bending stainless steel and other metal thin-walled  round tube, square tube, rectangular tube.Bend it into any radian as  needed.

  • No heating or sand filling process is required when bending the  pipe.

  • The curved products have the characteristics of smooth arc,  uniform, clear and small deformation.

Quantity

ltem No.

Description

OurElectric Tube Rolling Machine is
designed for bending thin-walled round, square, and rectangular tubes made of
stainless steel and mild steel, creating precise curves with any desired
radius. This type of pipe bender requires no heating or sand-filling
process, thus simplifying operations and increasing efficiency. This pipe roller bender is equipped with high-accuracy die sets
made from durable special steel, ensuring a long service life and reliable
performance. The closed design enhances safety and protects the internal
components. The curved products produced with
this bender feature smooth, uniform arcs with clear, minimal deformation,
making it ideal for professional workshops and garages that need consistent,
high-quality results.

Features

Voltage:

110V/60Hz

Max round pipe thickness:

Stainless steel:0.5-2.0mmMild steel:0.8-2.3mm

Max square pipe thickness:

Stainless steel:0.5-1.5mmMild steel:0.8-1.8mm

Round dies sets:

16mm/19mm/22mm/25mm/32mm/38mm/51mm/63mm/76mm

(5/8",3/4",7/8",1",1-1/4",1-1/2",2",2-1/2",2-7/8")

Square dies sets:

16mm/19mm/22mm/25mm/30mm/38mm/40mm/50mm

(5/8",3/4",7/8",1",1-3/16",1-1/2",1-9/16",2")

Motor type:

Single Phase  Asynchronous

Power:

1.5KW

Color:

green

Gross weight:

550lbs



Specification
