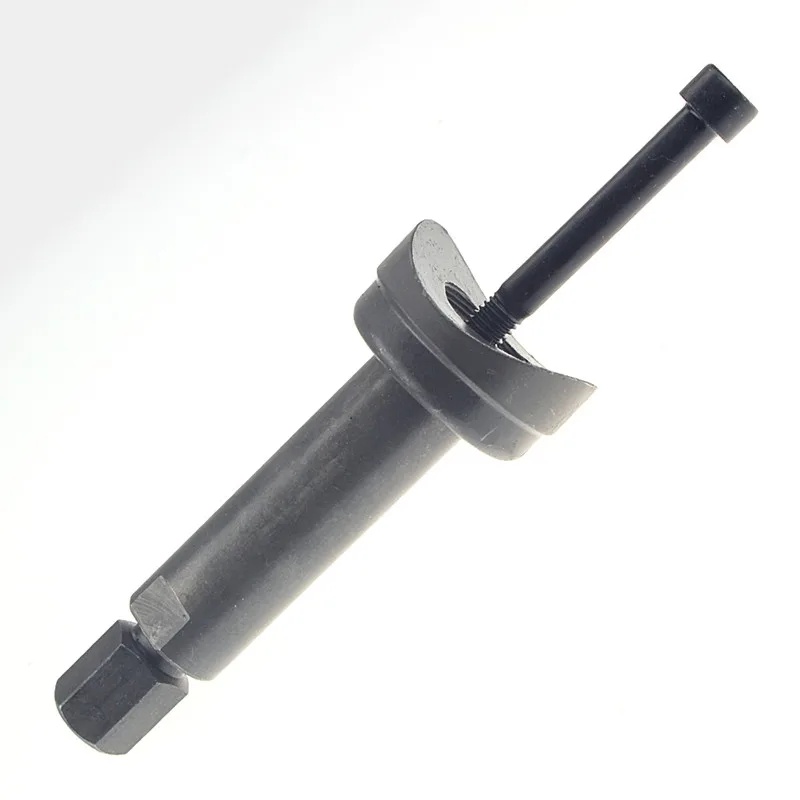

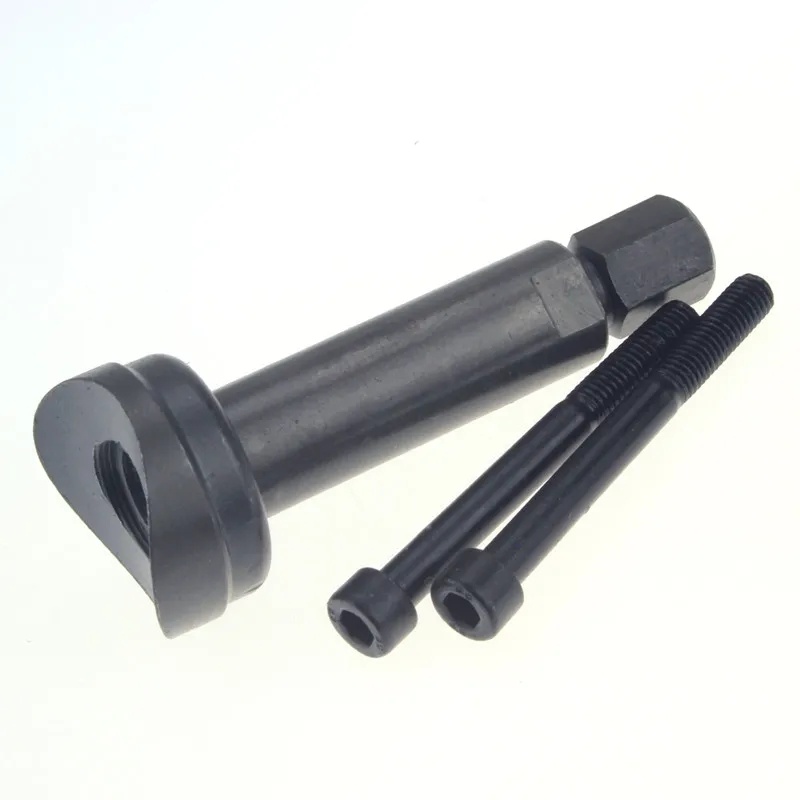

Motorcycles Repair Piston Pin Extractor Remover Puller Kit
Tools

- This is a piston gudgeon pin removal tool for those seized or just jammed gudgeon / piston pins.
- It can be used with any type of piston providing that the inner gudgeon pin diameter is between 8mm and 15mm.
- A must for any workshop or do it yourself enthusiast.
- Screw the circular brace section onto the end of the main tool body.
- Locate the main tool body (with the brace attached) to one side of the piston, over the pin hole, in the direction in which you want the pin to travel.
- Insert the pulling pin into the pin hole on the opposite side of the piston, so that it travels through the centre of the gudgeon pin.
- Once inserted, screw the pulling pin into the inside of the main tool body using an hex key.
- Turn the main bolt in the tool body so that it moves away from the piston, thereby pulling the gudgeon pin with it.

- Material: Iron
- Length: 11 cm / 4.33 inch
- Bolt Length: 78 mm / 3.07 inch
