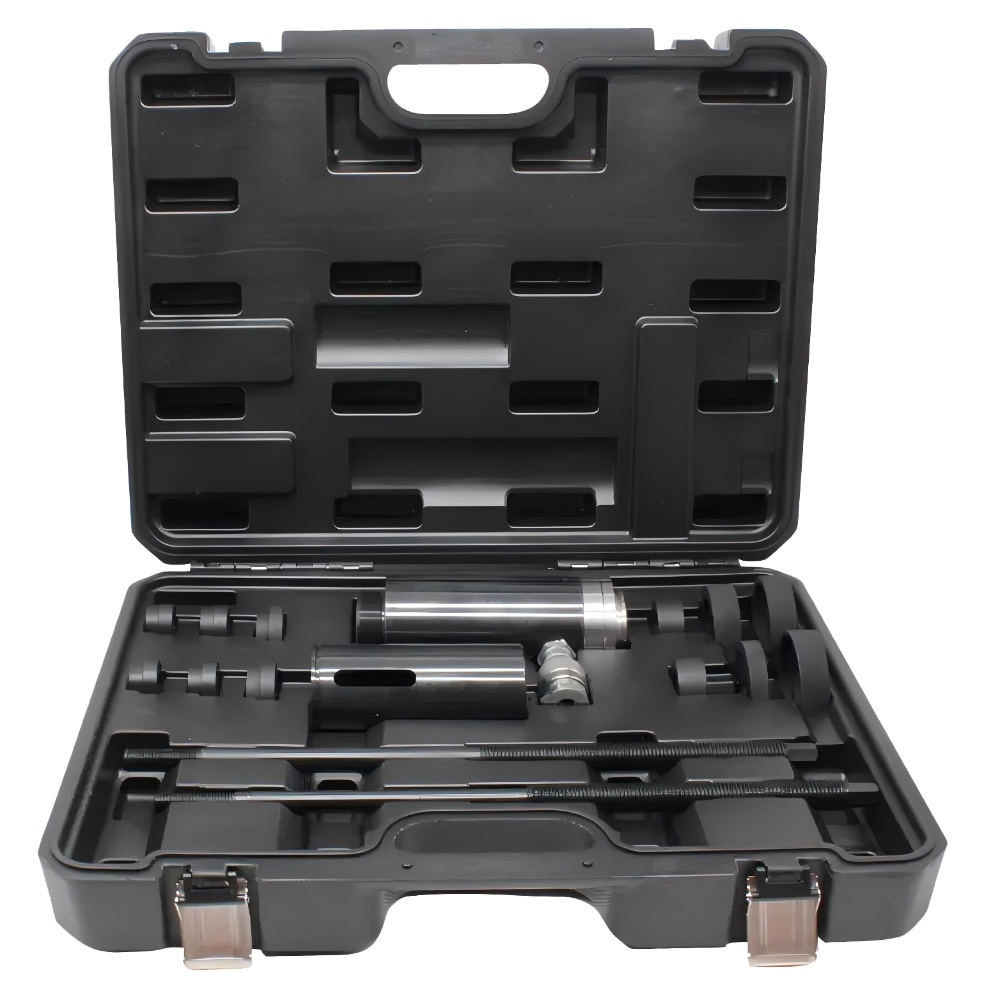

Hydraulic Truck Split Pin Removal and Installation Tool Set
for Truck Repair

Designed for removing/installing bushings and silent blocks using a hydraulic drive.

Application:
Used on trucks of European manufacturers Scania, Volvo and other heavy and medium-duty trucks of Japanese manufacturers Isuzu, Fuso, Toyota, etc.

The cylinder capacity will reach 17T when the pump with 10000psi(700lbs) power.
During work, it is imperative to apply lubricant to the threaded studs.

Cylinder - 1 pc.
Mandrel (inner/outer diameter: 68/75 mm) - 1 pc.
Mandrel (inner/outer diameter: 60/70 mm) - 1 pc.
Mandrel (inner/outer diameter: 35/43 mm) - 1 pc.
Mandrel (inner/outer diameter: 32/44 mm) - 1 pc.
Mandrel (inner/outer diameter: 28/35 mm) - 1 pc.
Mandrel (inner/outer diameter: 28/33 mm) - 1 pc.
Mandrel (inner/outer diameter: 48/65 mm) - 1 pc.
Mandrel (inner/outer diameter: 24/40 mm) - 1 pc.
Mandrel (inner/outer diameter: 28/33 mm) - 1 pc.
Mandrel (inner/outer diameter: 20/40 mm) - 1 pc.
Mandrel (inner/outer diameter: 25/30 mm) - 1 pc.
Mandrel (inner/outer diameter: 45/65 mm) - 1 pc.
Threaded stud (length/diameter: 450/14 mm) - 1 pc.
Threaded stud (length/diameter: 450/16 mm) - 1 pc.
Hydraulic cylinder - 1 pc.
Check nipple - 1 pc.
